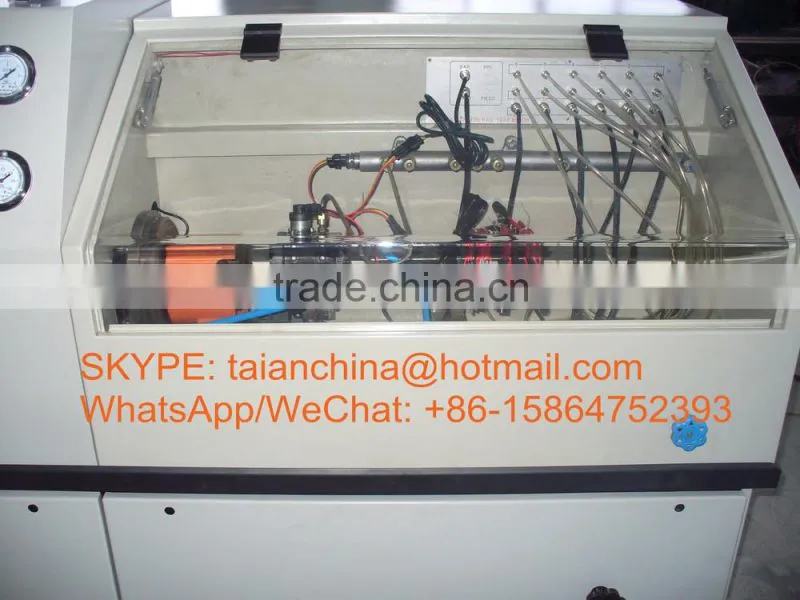

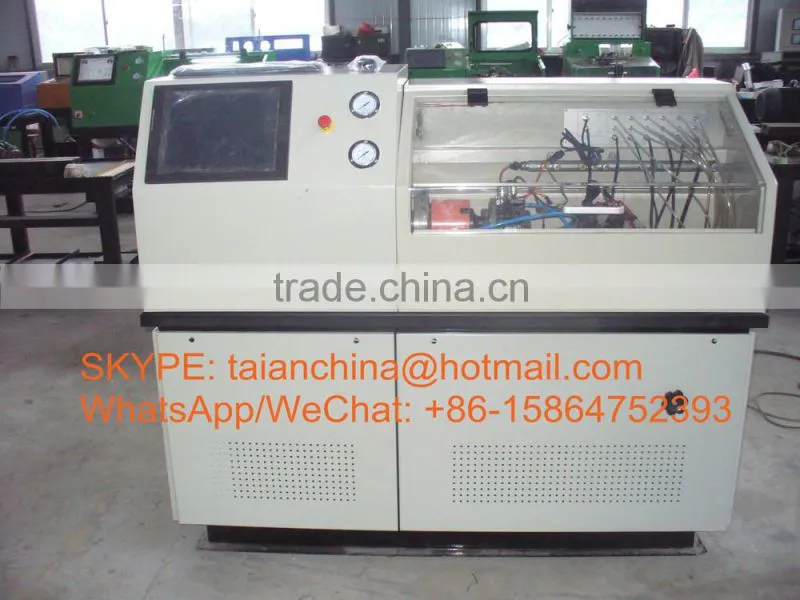

CR3000A COMMON RAIL TEST BENCH is the professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.
- 1. System Application:
the system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail pump and injectors. Such as CP1, CP2.CP3, HP3 series injector pump and the type
- 2. Technical parameters
1, Main motor speed: 0-4000 r / min can be adjustable.
2, Motor power: 7.5KW, 11KW, 15KW, 18.5KW optional.
3, Fuel Injector open voltage
Control range: 12V, 80V, 150V
Control accuracy: phase adjustment
4, Injector opening frequency
Control: 0-1000HZ
Control accuracy: 1HZ
5, Fuel Injector Hold Time
Control: 0-65535us
6 Delivery Oil Count
Control: 0-1000 times
Control accuracy: 1 times
7, Fuel pressure control
Control: 0-2000bar .
Control accuracy: 1bar
8, Electronic power: 3 PHASE 380V or 3 PHASE 220V optional
We are the leading manufacturer in Diesel Injection Pump Test Bench and Turbo charger in CHINA, already sold more than 100 Countries, include EUI/EUP tester with Cam box, EDC VP37 tester, VP44 teser,RED4 EDC, HEUI tester, DENSO ECD-V3,V4,V5 pump tester,PT Cummins Pumps and Injectors tester, Common Rail injectors and Common Rail Pump tester( CRDI) and Turbo Charger, Spare parts(plunger, nozzle, head rotor, injector...) also different model tools for pump and injector repair.
