Recessed Round Led Panel Light/led Ceiling Panel Light

Recessed Round Led Panel Light/led Ceiling Panel Light photo-1
Recessed Round Led Panel Light/led Ceiling Panel Light photo-2
Recessed Round Led Panel Light/led Ceiling Panel Light photo-3
Recessed Round Led Panel Light/led Ceiling Panel Light photo-4
US$ 2.5 - 6.2 MOQ: 500 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD
Warranty(Years):
2
Input Voltage(V):
AC85-265V
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source SMD
Warranty(Years) 2
Input Voltage(V) AC85-265V
Lamp Power(W) 9
Lamp Luminous Flux(lm) 720
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Pure White
Working Temperature(℃) -55, 33
Working Lifetime(Hour) 10000
Lamp Body Material Aluminum
IP Rating IP44
Certification BV, CE, EMC, LVD
Place of Origin Guangdong, China
Brand Name LEDEA
Model Number LD-09-238-118*118-9W





Recessed round led panel light/led ceiling panel lightRecessed round led panel light/led ceiling panel light



1 Perfect Luminous Efficiency SMD and COB LED chips available
2 Equable Soft Irradiancy , Anti Glaring Eye Protection
3 Top quality aluminum material used,matched with different type of dimmerable drivers
4 Ultra thin design only 12mm height with patented appearance
5 recessed and surface mounted item can be chosen
6 side-light and back-light available
7 used Japanese Mitsubishi light guide plate with high quality
8 Lighting Efficiency: >85lm/w
9 Own Design and Produced by our own mold
10 Super heat dissipation capability
11 Long life span more than 50000 hours
12 CE&RoHS certificated
13 Excellent illumination choice in hotel ,shopping mall, meeting room ,office etc. indoor places
Product Description

Recessed round led panel light/led ceiling panel light



Model No.  LD-09-238-118*118-9W
Lamp Body Material   Pure aluminium
Diameter(mm) 118*118 *22/"168*168 *24/ 188*188 *24/218*218 *24MM
Heigh(mm)  22/24MM
Cut off (mm) 100*100/150*150/170*170/200*200MM

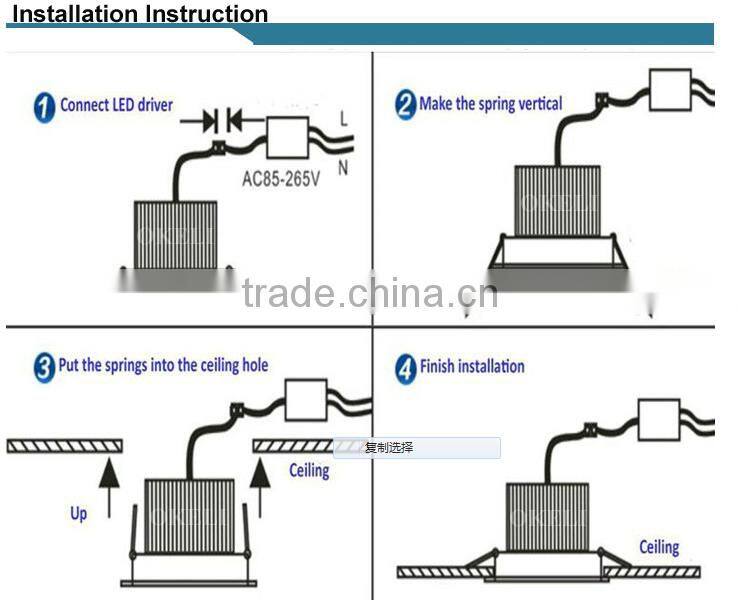

Installation way   Embeded
Light source  SMD4040
Input Voltage  86-265V
Output Power   9w/15w/22/26w

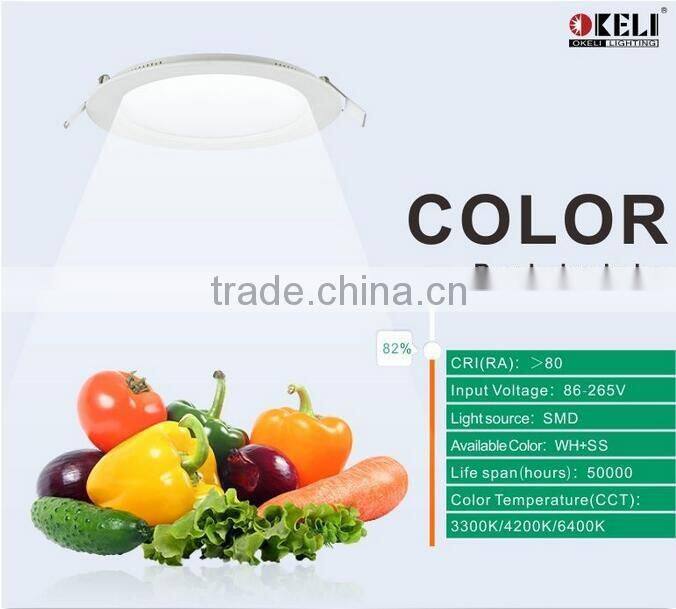

Color Temperature(CCT)  3300K/4200K/6400K
Lamp Luminous Efficiency (lm/w)  80
Lamp Luminous(Flux)  720/1200/1760/2080lm
Shape available  Round and square
Working Temperature( ℃) -30 ℃-+50 ℃
CRI(RA)  >80
Beam angel  120
Operating Current(mA)  DC330±20
IP Rating  20
Life span  50000
Category Recessed round led panel light/led ceiling panel light

 Recessed round led panel light/led ceiling panel lightRecessed round led panel light/led ceiling panel light

Recessed round led panel light/led ceiling panel lightRecessed round led panel light/led ceiling panel light

Recessed round led panel light/led ceiling panel lightRecessed round led panel light/led ceiling panel light

Recessed round led panel light/led ceiling panel light
