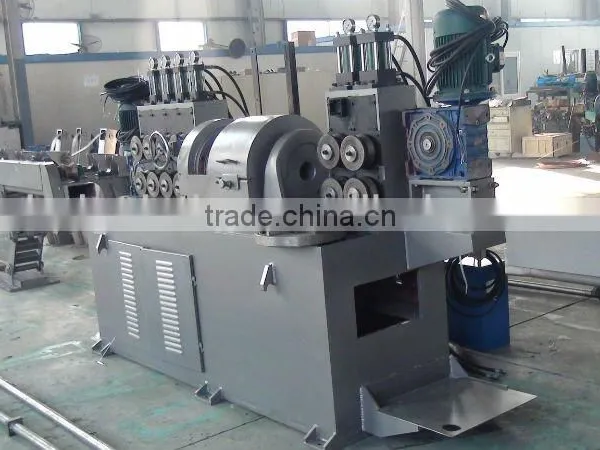

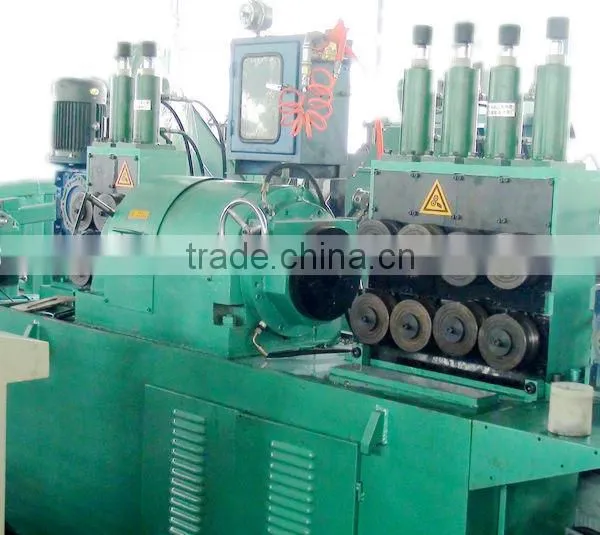

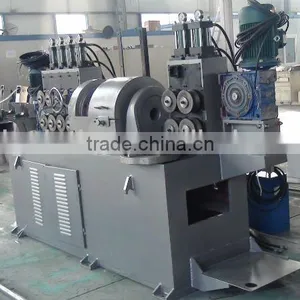

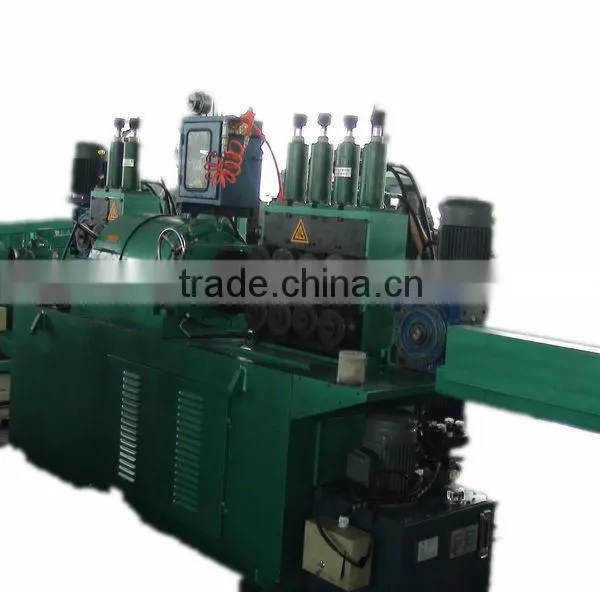

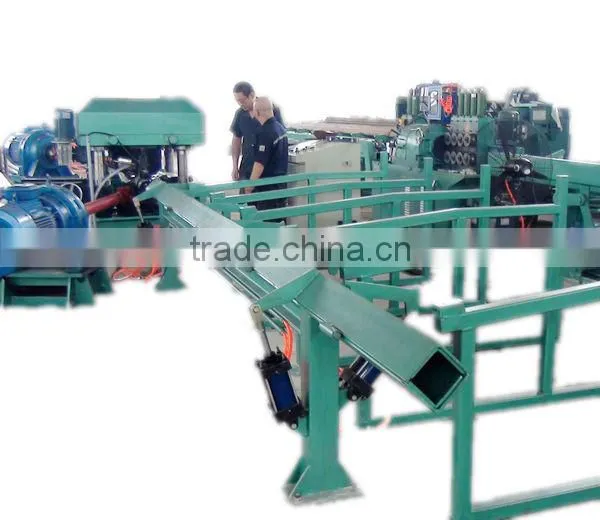

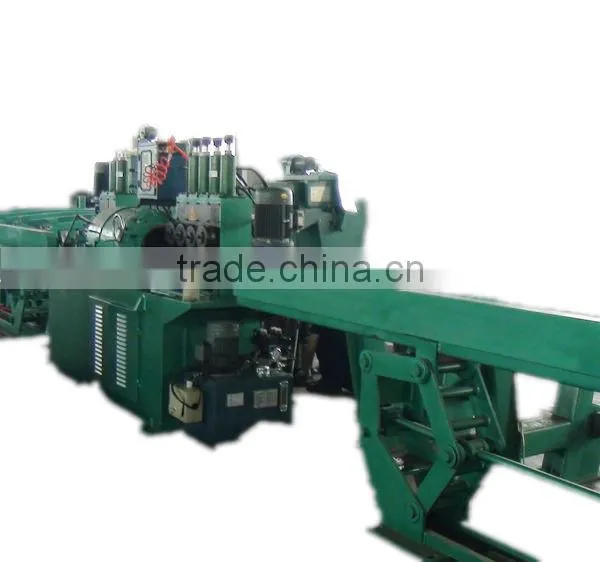

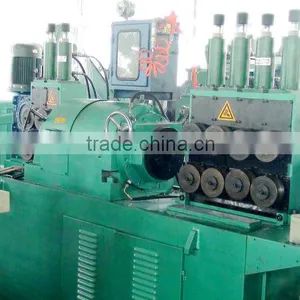

Series WXC centerless lathe is the high efficiency lathe which is specialized in rough and
precise processing of the metal bars surface. It removes the decarburized layer, cracks and other
defects from the surface of the bars with high precision.In the working process, the metal
bar doesn’t rotate and just walks forward. The cutter tools are driven to rotate by the cutter head
to rotate fastly to peel the surface of the bars.
Advantages compared with the general lathe
1. The over-long metal bars or the wire rods can also be processed.
2. The precessing speed: 1~12m/min which is several times faster than the general lathe.
3. High precision. The diameter tolerance ≤IT9 while the surface roughness ≤6.3μm after peeling.
The surface roughness can be less than 0.8μm if our straightening machines are used afterward.
Applications
1. Ferrous metals:
Stainless steel, bearing steel, spring steel, tool steel, structural steel, alloy steel, free-cutting steel, air valve steel, gear steel, others;
2. Nonferrous metals:
Copper alloy, titanium alloy, magnesium alloy, aluminum alloy, etc. Widespread in preparation link in manufacturing of slender axles, hydraulic/pneumatic elements, bearings, springs, auto parts, textile machinery, processing of cold forging materials, instruments, steel pipes, cutters, engineering machinery, sports equipment and other machiner.
3.Widely applied to industries of copper, titanium, aluminum, magnesium, petroleum, power and bridge
(e.g. piston rod, optical axis, bolt, spring, rack, rod thread, stainless steel rod, copper rod, titanium rod, aluminum rod, magnesium rod, bearing ring, draglink, roller shaft, pin, polishing rod, screw, core rod, oil drill pipe, tightwire, pipe blank).
Technical Parameters
Specification |
WXC60B |
|
RAW |
Diameter Range(mm) |
Φ14~Φ63 |
Raw Material Length(mm) |
≥2200 |
|
Tensile Strength (M pa) |
≤1100 |
|
Surface Hardness |
≤HB320 |
|
Curvature(mm/m) |
≤1.50 |
|
Diameter Tolerance |
According to GB 702-88 second group |
|
Roundness |
≤50% of the diameter tolerance |
|
Surface Roughness(Ra) |
≤25~50μm |
|
FINISHED |
Diameter Range |
Φ12~Φ60 |
Unilateral Cutting Depth (mm) |
0.25~1.50 |
|
Diameter Tolerance |
≤IT9 (standard tolerance grade) |
|
Surface Roughness(Ra) |
≤6.3μm |
|
Roundness |
≤0.03mm |
|
Feeding Cutting Speed(m/min) |
1.0-7.0(for continuous chips and high strength and hardness should reduce the speed) |
|
Cutter Head Rotational Speed(rpm) |
440~1300 |
|
Main Machine Motor Power(KW) |
45( Four Poles) |
|
Auxiliary Machine Motor Power(KW) |
4.0 X 2 ( Four Poles ) |
|
|
Main Machine Outline Dimensions (Length*Width*Height) m |
3.0m X 2.5m X 2.0m ( for your reference) |
|
|
Full Set Machine Outline Dimensions (including auxiliary machine) (Length*Width*Height) m |
13.0m X 2.5m X 2.4m ( for your reference) |
|
Main Machine Weight |
5.0 ( 8.0 ) ( for your reference) |
|
Total Capacity(KW) |
55 |
|
|
Compressed Air Source (user prepare by themselves) |
0.5-0.8Mpa,1.8m3/min,0.8m3 gasholder,two-stage oil-water separator and compressed air freezing drier |
|
Process
A. Warranty period: 1 year,except for fast-wearing parts
B. Reply your enquiry in 24 working hours
C.Customized design is available. OEM& ODM are welcomed.
D. If necessary,we can dispatch our well-trained and professional engineers to our customers' factory to help them install and debug the equipment.
E.Special discount can be provided to our distributor.
|
