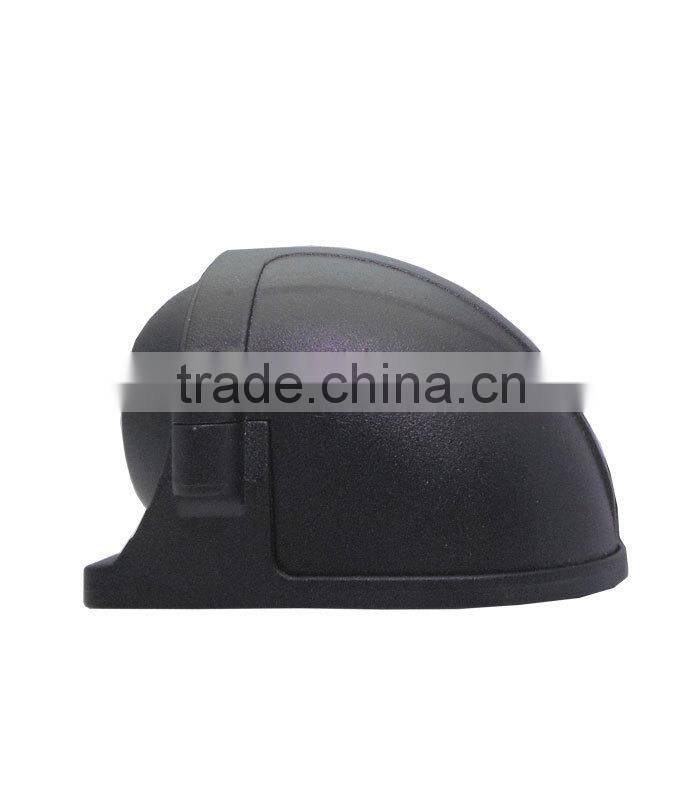

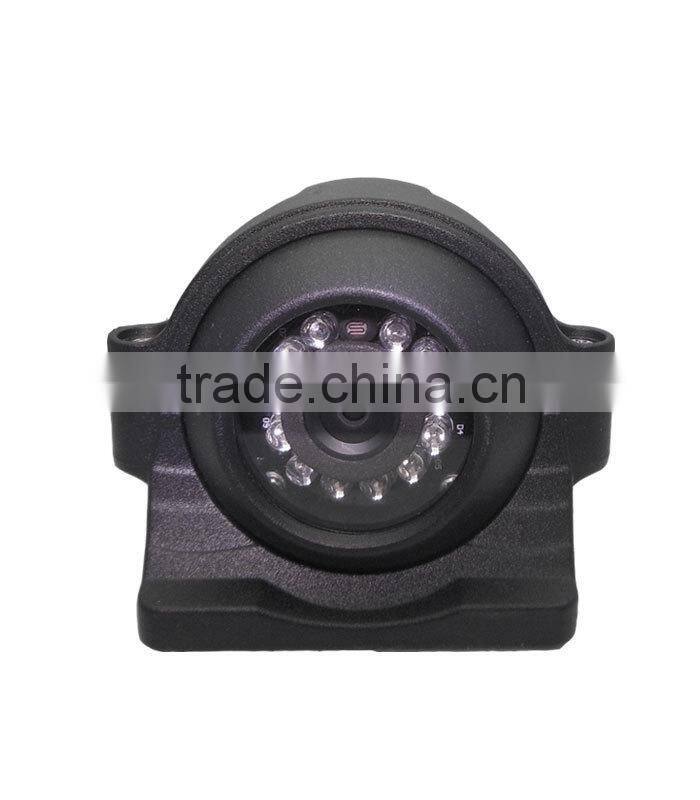

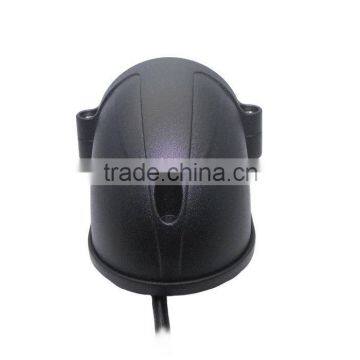

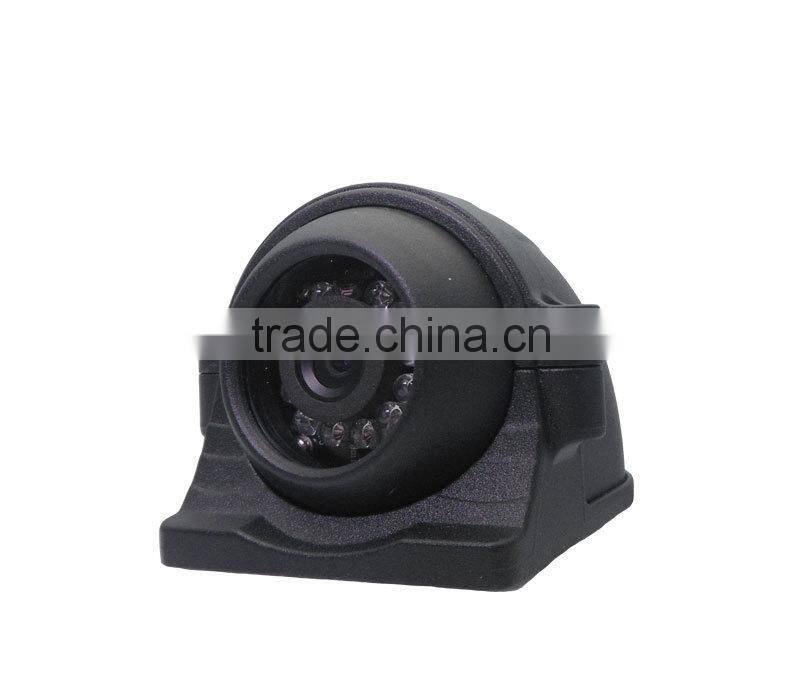

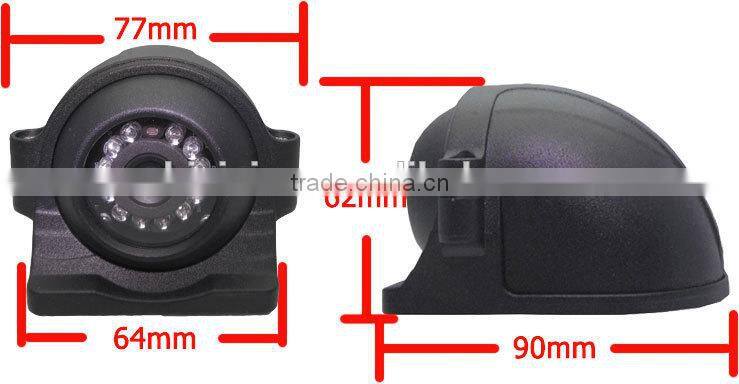

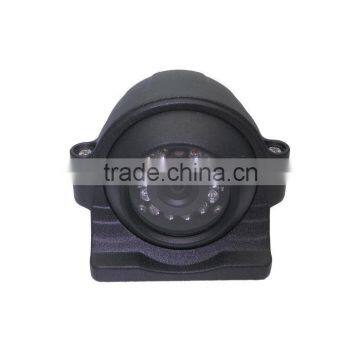

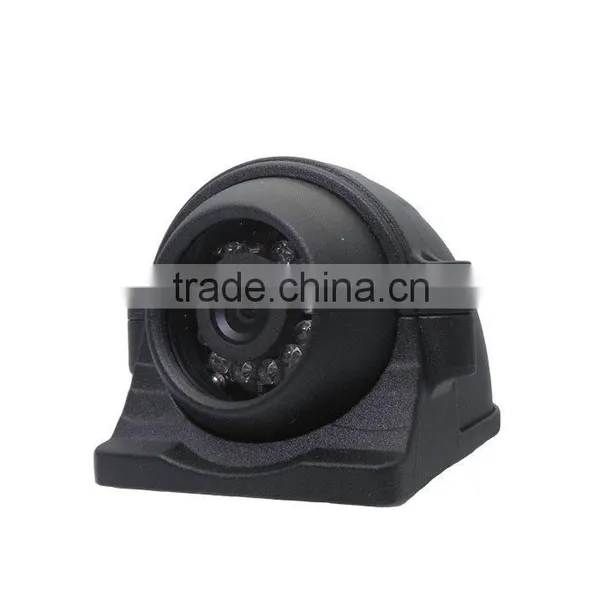

For Bus Truck Trailer Ambulance Waterproof Night Vision Vehicle Camera Side Camera
| Image Device: | 1/3'' CMOS | Image Device: | 1/3'' SHARP RJ2365 760H CCD |
| TV System: | PAL / NTSC | TV System: | PAL / NTSC |
| Effective Pixels: | 976(H)*496(V)pixels | Effective Pixels: |
PAL: 752 (H) × 582 (V) / NTSC: 768 (H) × 494 (V) |
|
Total Number Of Pixels: |
Total Number Of Pixels: | ||
|
Minimum Illumination: |
0Lux IR ON | Minimum Illumination: |
0.01 Lux / F1.0, B/W: 0.001 Lux / F1.0 |
| Video Output: | Composite Signal (1.0 Vp-p, 75 Ohm) | Video Output: | Composite Signal (1.0 Vp-p, 75 Ohm) |
| White Balance: | Auto | White Balance: | Auto/ATW1/ ATW2/AWC-SET/MANUAL |
| S/N Ratio: |
Better than 50 dB(AGC OFF) |
S/N Ratio: | Better than 50 dB(AGC OFF) |
|
Electronic Shutter: |
AOTO:1/50-1/100,000 Sec. / 1/60-1/100,000 Sec. | Electronic Shutter: | AOTO:1/50-1/100,000 Sec. / 1/60-1/100,000 Sec. |
| Day / Night : | AUTO ( Level Adjust ) | Day / Night : |
Color,B/W(IR SMART), AUTO ( Level Adjust ) , EXT |
| Mirror | Yes | Mirror | ON/OFF |
|
Current Consumption: |
Max. 300 mA | D-WDR | ON/OFF |
| Power Supply: | DC 12 V | 2D-DNR | ON/OFF |
| Connection: | 4 PIN | Back Light Comp | ON/OFF |
| Anti-vibration: | 10 g | Current Consumption: | Max. 90 mA |
|
Operating Temperature: |
-20°C~70°C, RH 95% MAX. |
Power Supply: | DC 12 V |
|
Storage Temperature: |
-40°C~80°C, RH 95% MAX. |
Connection: | 4 PIN |
| Lens: | 2.8 mm, 3.6 mm Optional | Anti-vibration: | 10 g |
| Lens Angle: | 120°, 92° | Operating Temperature: | -20°C~70°C, RH 95% MAX. |
| Sync. System: | Internal | Storage Temperature: | -40°C~80°C, RH 95% MAX. |
| Resolution: | 700 TV Lines | Lens: | 2.8 mm, 3.6 mm Optional |
| Microphone: | Yes | Lens Angle: | 120°, 92° |
| BLC: | Auto | Sync. System: | Internal |
| AGC: | Auto | Resolution: | 600 TV Lines |
| Microphone: | Yes | ||
| BLC: | Auto | ||
| AGC: | On/off |
Rear View Cameras as following :

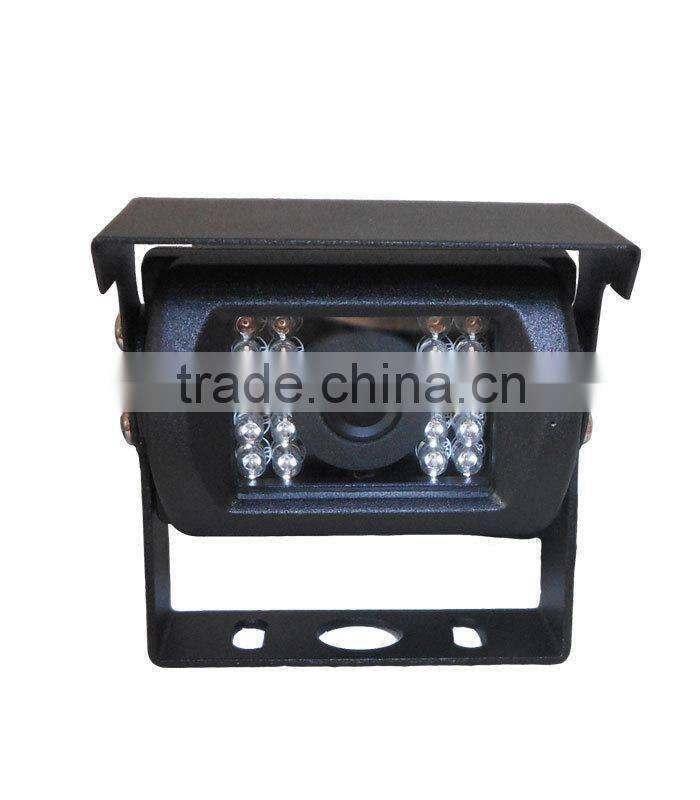

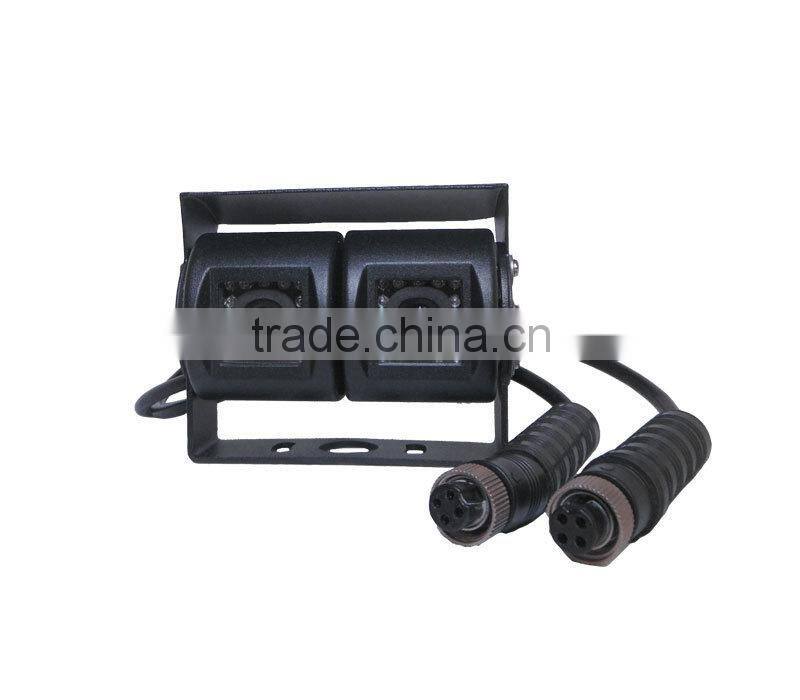

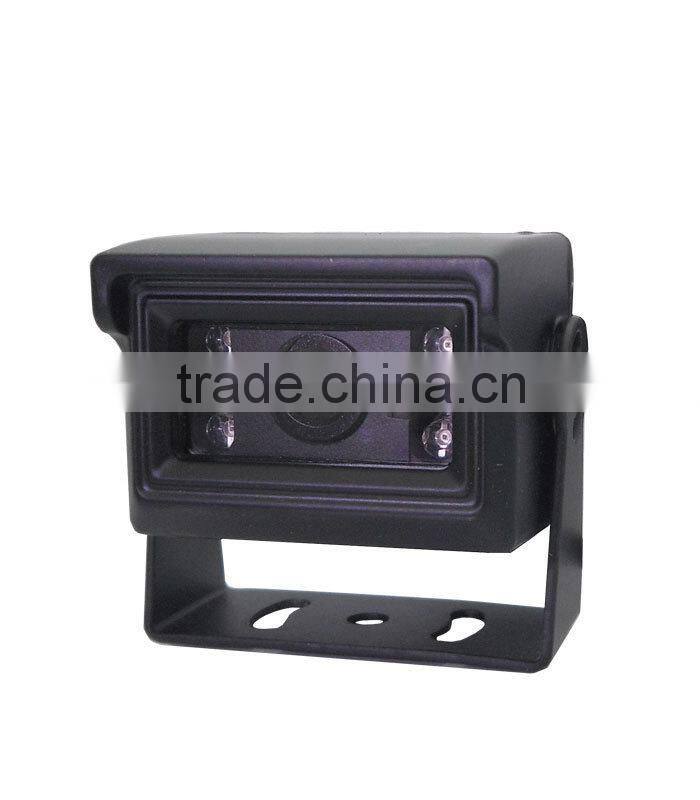

Wired Camera C02232187AI
Wired Camera C02230773AI
Wired Camera C02250950AI
Wired Camera C2396AI
Shivision Co., Ltd. ,
located in Tianhe District, Guangzhou, is a high-tech enterprise engaged in researching, developing, manufacturing and marketing vehicle rear vision products and surveillance products. Being in this field for more than 10 years, our company has been bringing in advanced manufacturing facilities, cutting-edge technology, and high-quality professional talents. The company has independently developed a series of intelligent cameras, digital LCD, video signal wireless processing system, image processors, and video recorders, etc.
Our company insists on "Independent R&D" and "Customer Oriented" as the business philosophy. We maintain advanced innovation ability, and keeps strict quality control of products. Through years of effort, our company has gained recognition and reputation from the majority of customers;the products are exported to overseas.
We have established trade relations with more than 150 countries, and the export rate has reached more than 95%. In addition, the company has been certified with the highest international level of quality management system in auto industry ISO/TS16949:2009, and we are also in strict accordance with the EU ROHS standard during manufacturing. Meanwhile, a variety of our products have reached the highest waterproof rating of IP69K, and approved with CE, FCC, and EMARK, etc. Besides, our company has won 4 Design Patent, 2 Utility Model Patent, and 7 Software copyright, which enable us to become one of the world's largest suppliers of rear view products in the world.
