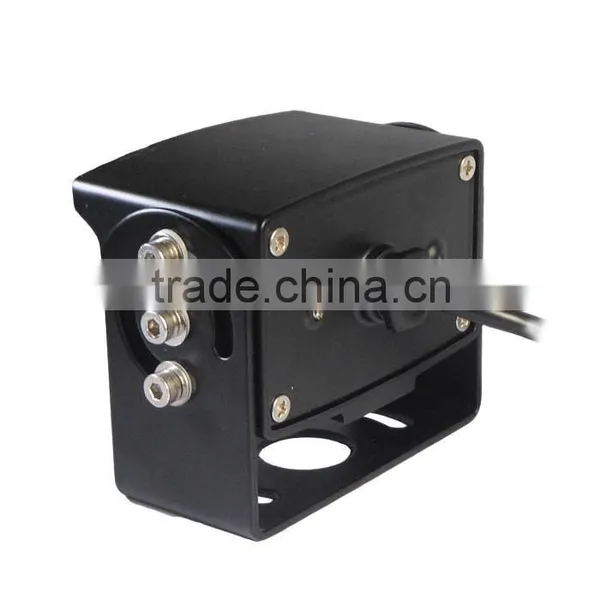

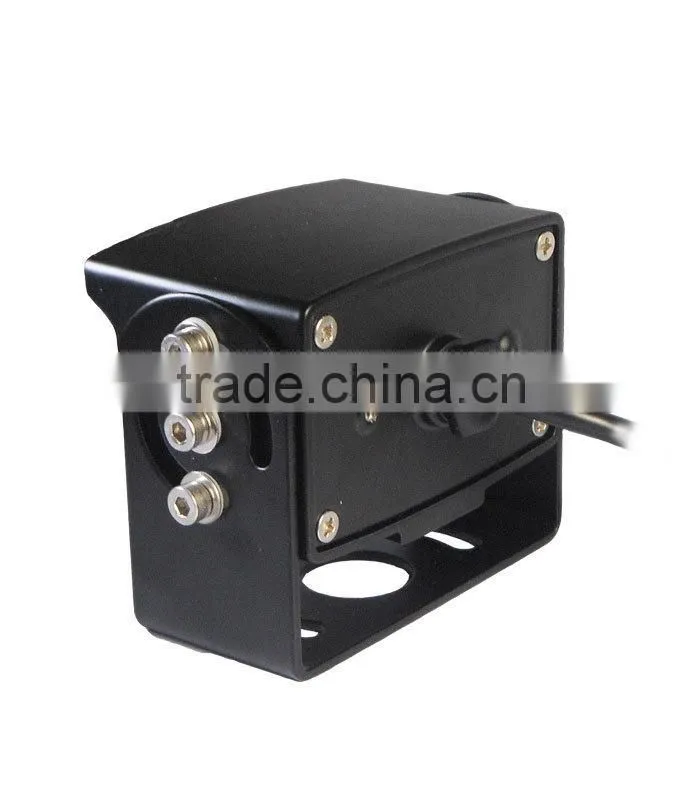

New 10G Anti-vibration Aluminum Alloys Shell 4-PIN Connection Waterproof Wideview Angle Small Car Camera
1)Waterproof: IP69K approved
2) Wider viewing angle up to 120 degrees
3)Nightvision distance: approx. 25 m
4)Day / Night sensor for automatic adjustment
| Image Device | 1/3'' SHARP CCD |
| TV System | PAL / NTSC |
| Effective Pixels | PAL: 752 (H) × 582 (V) / NTSC: 768 (H) × 494 (V) |
| Minimum Illumination | 0.01 Lux / F1.0, B/W: 0.001 Lux / F1.0 |
| Video Output | Composite Signal (1.0 Vp-p, 75 Ohm) |
| White Balance | Auto |
| S/N Ratio | Better than 50 dB(AGC OFF) |
| Electronic Shutter | AOTO: 1/50-1/100,000 Sec. / 1/60-1/100,000 Sec. |
| Day / Night | YES |
| Mirror | ON/OFF |
| Current Consumption | Max. 300 mA |
| Power Supply | DC 12 V |
| Connection | 4 PIN |
| Anti-vibration | 10 g |
| Operating Temperature | -20°C~70°C, RH 95% MAX. |
| Storage Temperature | -40°C~80°C, RH 95% MAX. |
| Lens | 2.5 mm |
| Lens Angle | 120° |
| Sync. System | Internal |
| Resolution | 600 TV Lines |
| Microphone | Yes |
| BLC | Auto |
| AGC | Auto |
