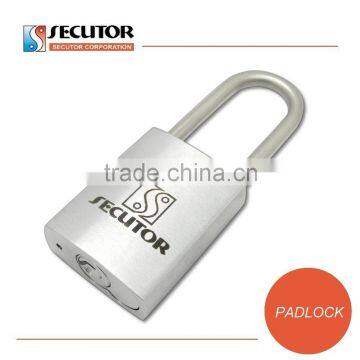

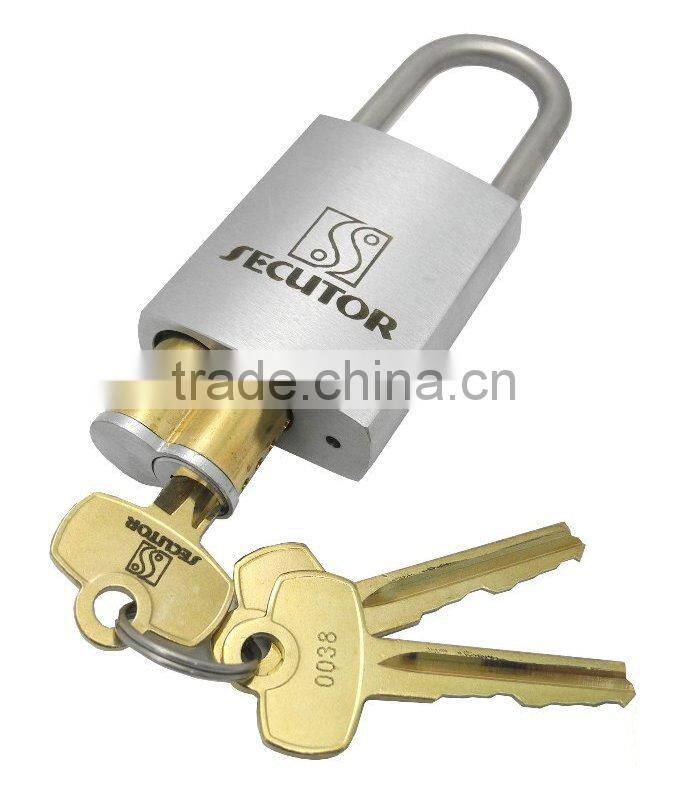

* Master Key Middle Type Padlock with Long Shackle
* Padlock Case Material : solid brass
* Dimension of padlock body : 45mm x 20.2mm x 52mm
* For 7-pin Small Format Interchangeable Core (SFIC)
* Double locking, with 2 steel ball bearings
* Shackle: 304 Stainless steel or hardened steel available
* Shackle interchangeable by disassembly tool
* Length of Shackle : 3/4” (19mm), 1-1/2” (38mm), 2” (51mm), 4” (102mm)
* Different surface finish available (US3, US4, US26D, US32D)
* Options include key retained or non-key retained available
* Different surface finished available (US03, US04, US10B, US15, US26, US26D, US32, US32D)
Different surface finishes of Master Key Middle Type Padlock with Long Shackle
US03 – Bright Brass
US04 – Satin Brass
US10B – Dark Bronze
US15 – Satin Nickel
US26 – Bright Chrome
US26D – Satin Chrome
US32 – Bright Stainless Steel
US32D – Satin Stainless Steel
Drawing of Master Key Middle Type Padlock with Long Shackle
Padlock case dimension:
* 11B series: Width:1-5/8" (41mm), Length: 2-1/16" (52mm), Thickness: 25/32" (19.7mm)
* 21B series: Width:1-25/32" (45mm), Length: 2-1/16" (52mm), Thickness: 13/16" (20.2mm)
* 41B series: Width:1-15/16" (50mm), Length: 2-1/16" (52mm), Thickness: 7/8" (22.0mm)
Length of Shackle:
* ¾” (19mm), 1 ½” (38mm), 2” (51mm), 4” (102mm)
Diameter of Shackle:
* 11B series: 1/4” (6.3mm)
* 21B series: 5/16” (8.0mm)
* 41B series: 3/8” (9.5mm)
* Customer's logo available
* Color box packed available
* Quick response - We will reply your inquiry as soon as possible
* After-sales service - To make sure our customers are satisfied with their order
* Provide samples - Provide samples for reference
Small Format Interchangeable Core / Removable Core
* Figure 8 style
* IC core is also suitable for lockset and lever set replacement
* Usable to Mortise Cylinder, Cylindrical Lock, Euro Profile Cylinder, Oval Cylinder, Padllock, Cam Lock...
* Brass material
* Cylinder with interchangeable & re-keyable cylinder core
* With 1 control key and 2 operating keys
* A specialized "control" key for insertion and extraction of the core
* The cylinder core with 6-pin or 7-pin tumbler mechanism
* 1,000,000 key combinations of 6-pin cylinder
* 10,000,000 key combinations of 7-pin cylinder
* No screwdriver and tool needed
* Different surface finished available (US03, US04, US10B, US15, US26, US26D, US32, US32D)
* Uncombinated (no pins & springs) / Keyed alike (KA) / MK / GMK / GGMK / GGGMK system for optional order
* Different keyway available (Keyway: A, B, C, D, E, F, G, H, J, K, L, M, N, P, Q, WA, WB, WC, WG available)
Related Products of Small Format Interchangeable Core
- Mortise Cylinder
- Euro Profile Cylinder
- Oval Cylinder
- Padlock
- Rim Cylinder
- Cam Lock
- Push Lock
- Knob Lock
- Lever Handle
Packing of Master Key Middle Type Padlock with Long Shackle
* 1pc/box
Shipping of Master Key Middle Type Padlock with Long Shackle
* By sea / air / courier express. (FOB Taiwan)
* Courier express includes DHL, Fedex, TNT, UPS, EMS, SF, etc.
* Payment by T/T , L/C, Western Union, PayPal or Escrow
* We require 100% payment in advance before delivery
