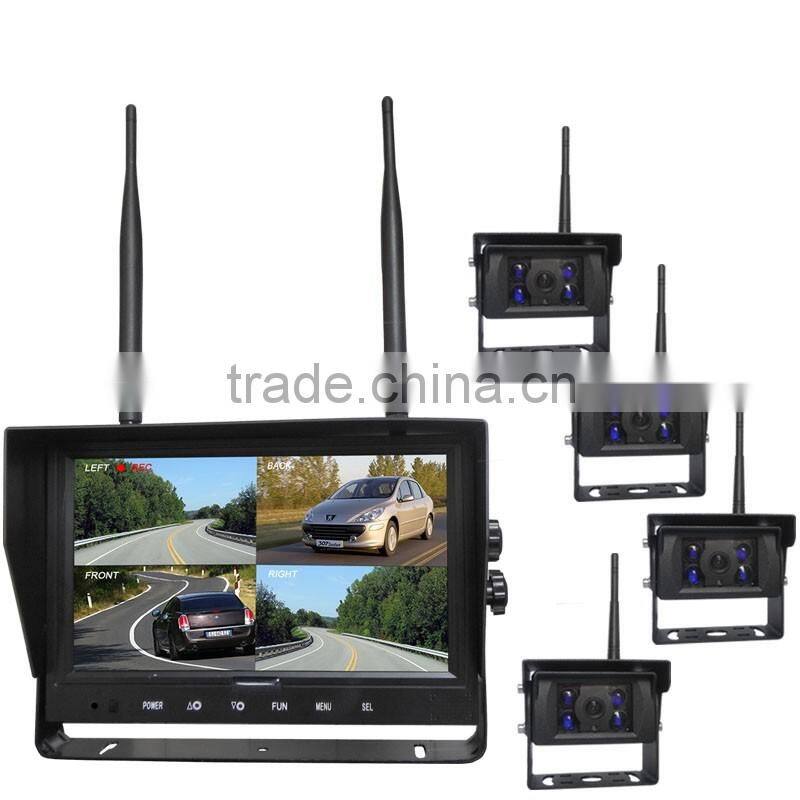

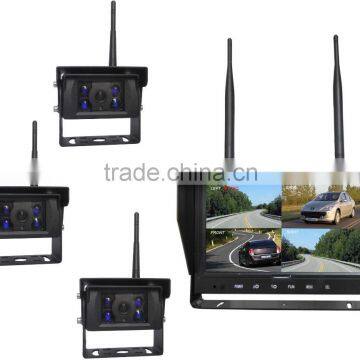

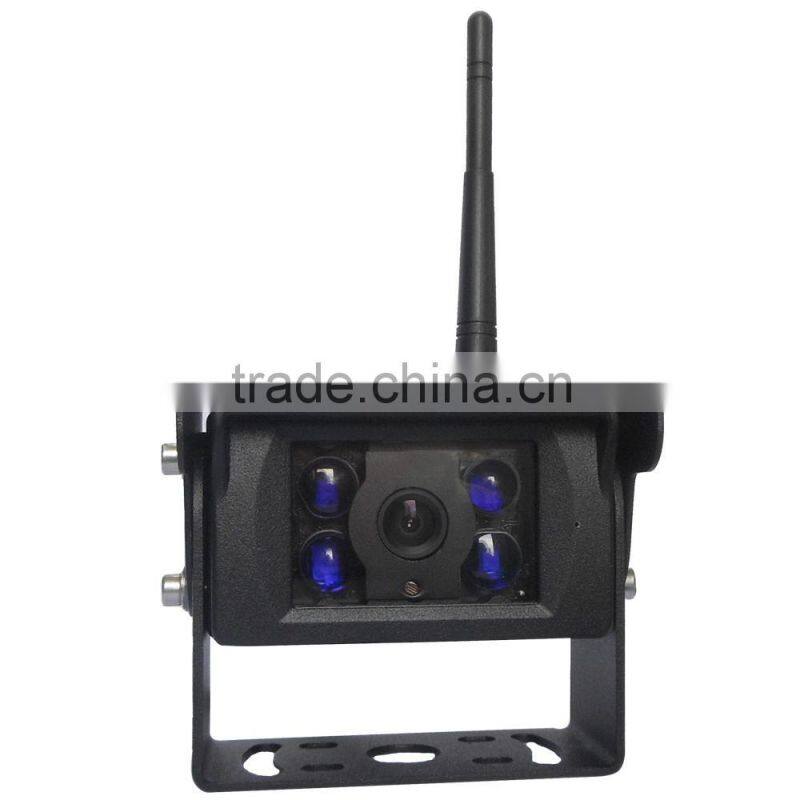

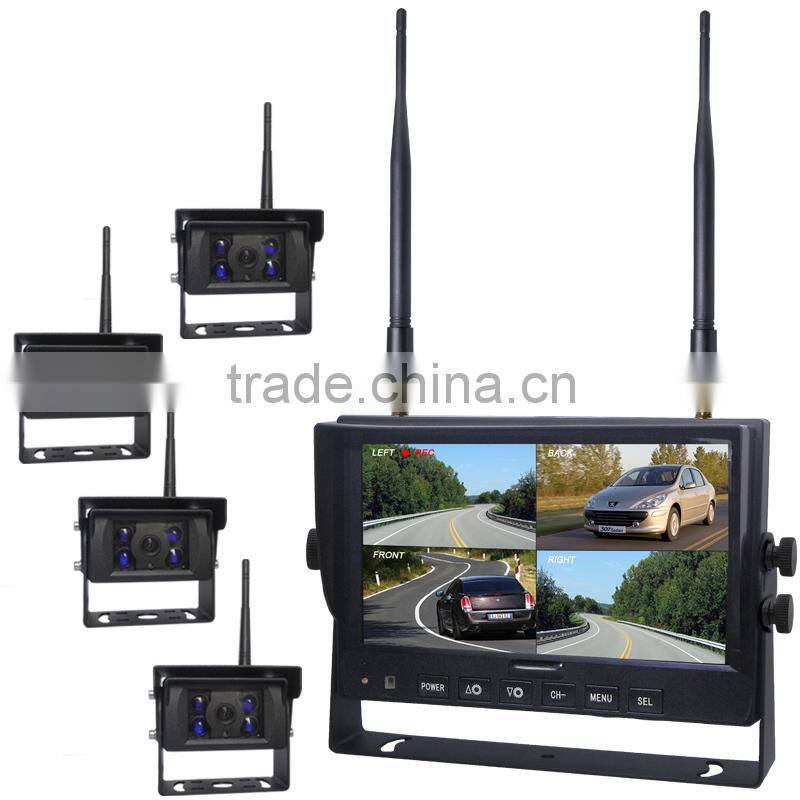

100% Factory CE RoHS 2.4Ghz Digital Wireless 4 Channel Quad and Split Screen 12-32V 700TVL Reverse Camera Kit with 9'' Monitor
Application :
Front ,Side ,Back View Monitoring for all vehicles
Key Spec :
| Model | M0213 | Model | C09158AI |
| LCD size | 9" | Image Device | 1/3" CMOS |
| Resolution | 800 x 3 (RGB) x 480 | TV System | PAL & NTSC Adjustable |
| Contrast | 500:01:00 | Array Size | 728*488 |
| Brightness | 400 cd/m² | Sensing Area | 4.6228 mm (H) ×3.6112 mm (V) |
| Viewing Angle | U: 50 / D: 70, R/L: 70 | Scan Mode | Progressive |
| Aspect Ratio | 16:09 | Sync. System | Internal |
| Channel | 4 channels | Resolution | 700 TV Lines |
| Operating Frequency | 2400 - 2483.5 MHz | Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Transmitting Distance | 30-120 M | Microphone | Yes |
| Recieving Sensitivity | -89 dBm | Electronic Exposure | Up to 510:1 |
| Decompression Form | MPEG4 | AGC | Auto |
| Emitting Frequency | 17 dBm | S/N Ratio | Better than 48 dB |
| Modulation | 2.4G FSK/GFSK | White Balance | Auto |
| TF Card | Max. 128G | Electronic Exposure | Up to 510:1 |
| Time Delay | 120ms | BLC | Auto |
| System Format | PAL & NTSC Adjustable | Current Consumption | Max. 220 mA/12V |
| Power Consumption | Max. 6W | Power Supply | DC 12-32 V |
| Loudspeaker | 1.5W/8Ohm | Operating frequency | 2400 -2483.5 MHz |
| Operating Temperature | -20~+70ºC, RH 90% | Transmitting distance | 30-120M |
| Storage Temperature | -30~+80℃, RH 90% | Transmitting speed | 12Mbps |
| Power Supply | 10-32V | Decompression form | MPEG4 |
| Transmit output power | 17 dBm | ||
| Lens | f = 2.8mm | ||
| Lens Angle | 120° | ||
| Operating Temperature | -20°C~60°C, RH 90% MAX. | ||
| Storage Temperature | -30°C~80°C, RH 90% MAX. | ||
| Mirror or Normal | Adjustable in Monitor Menu |
Relatived Products :
7 Inch 2.4GHz Digital Wireless Camera System
Rechargeable Battery for Powering Monitor&Camera&DVR
720P WiFi IP Camera
Shivision Co., Ltd. ,
located in Tianhe District, Guangzhou, is a high-tech enterprise engaged in researching, developing, manufacturing and marketing vehicle rear vision products and surveillance products. Being in this field for more than 10 years, our company has been bringing in advanced manufacturing facilities, cutting-edge technology, and high-quality professional talents. The company has independently developed a series of intelligent cameras, digital LCD, video signal wireless processing system, image processors, and video recorders, etc.
Our company insists on "Independent R&D" and "Customer Oriented" as the business philosophy. We maintain advanced innovation ability, and keeps strict quality control of products. Through years of effort, our company has gained recognition and reputation from the majority of customers;the products are exported to overseas.
We have established trade relations with more than 150 countries, and the export rate has reached more than 95%. In addition, the company has been certified with the highest international level of quality management system in auto industry ISO/TS16949:2009, and we are also in strict accordance with the EU ROHS standard during manufacturing. Meanwhile, a variety of our products have reached the highest waterproof rating of IP69K, and approved with CE, FCC, and EMARK, etc. Besides, our company has won 4 Design Patent, 2 Utility Model Patent, and 7 Software copyright, which enable us to become one of the world's largest suppliers of rear view products in the world.
