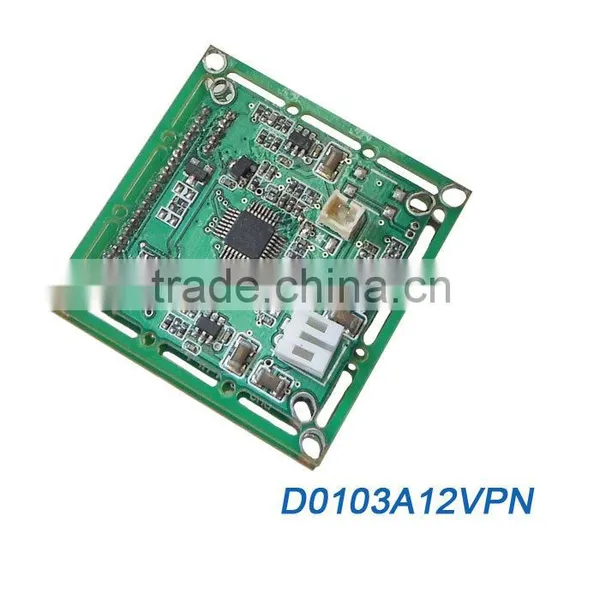

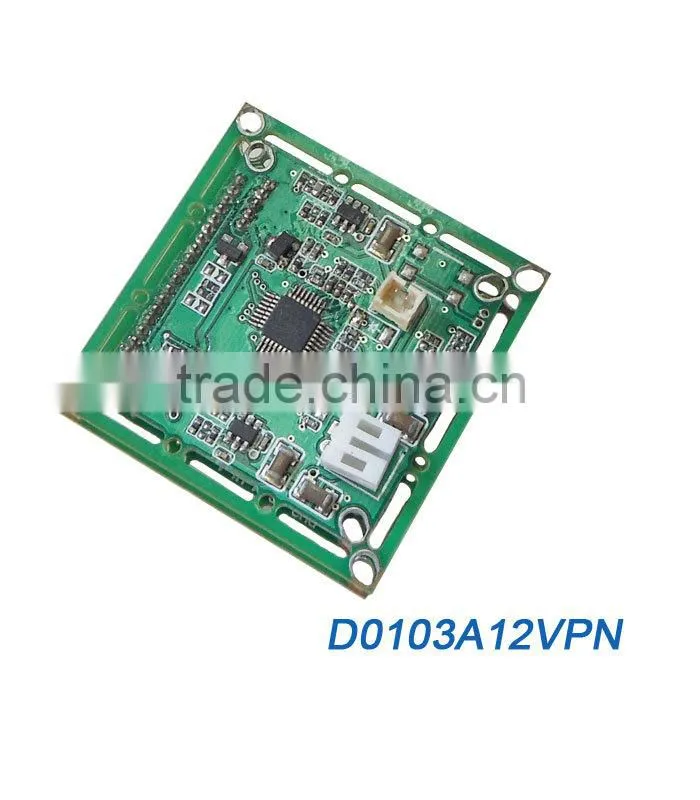

2.4G Digital CCD or CMOS sensor rear view camera use wireless camera module
Power ON |
1S |
| Latency | 120ms |
| Resolution | PAL:720X576/NTSC:720X480 |
| Frame Rate | NTSC:30f/s/PAL: 25f/s |
| Video Codec | MPEG4 |
| Video in System | PAL/NTSC |
| Operation Frequency | 2400 ~ 2483.5MHz |
| RF Impedance | 50Ω, Typ. |
| Receiving Sensitivity | -89dBm |
| Output Power | 17dBm |
| RF Bit Rate | 12Mbps |
| Modulation | FSK/GFSK |
| Spread Spectrum | FHSS |
| Line of Sight Range | 120M |
| Video Output impedance | 75Ω, Typ. |
| Video Output Level | 1Vp-p, Typ. |
| S/N | 50dB, Min |
| Audio Output Level | 5mv~0.5Vp-p, Typ. |
| S/N 340Hz ~ 3.4kHz | 63dB, Min |
| Power Supply | DC12-24V |
| Current Consumption | 180MA/12V |
| Operating Temperature | -20°C~70°C |
| Storing Temperature | -30°C~80°C |
| Operating humidity | Humidity 90% |
| Dimension | 38mm*38mm |
| Operating humidity | Humidity 90% |

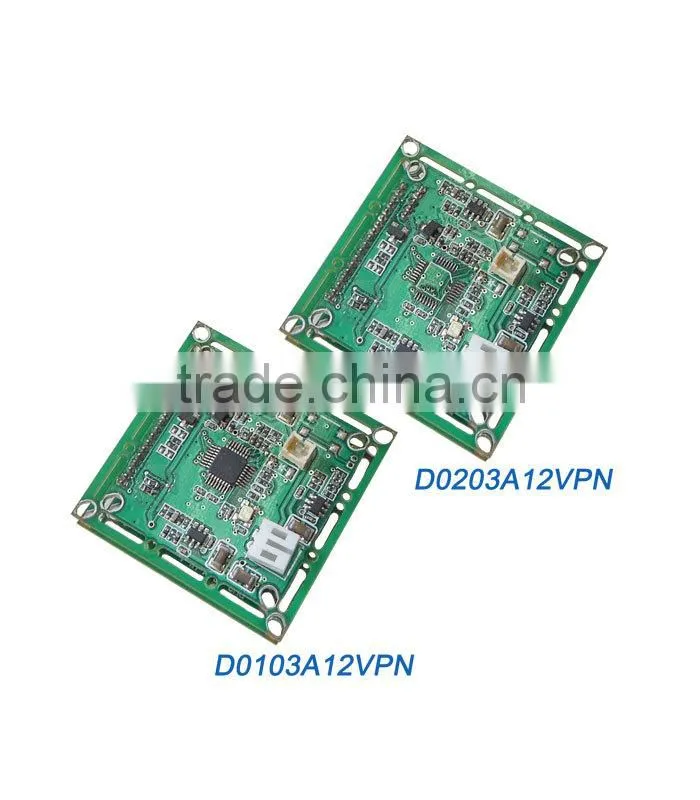

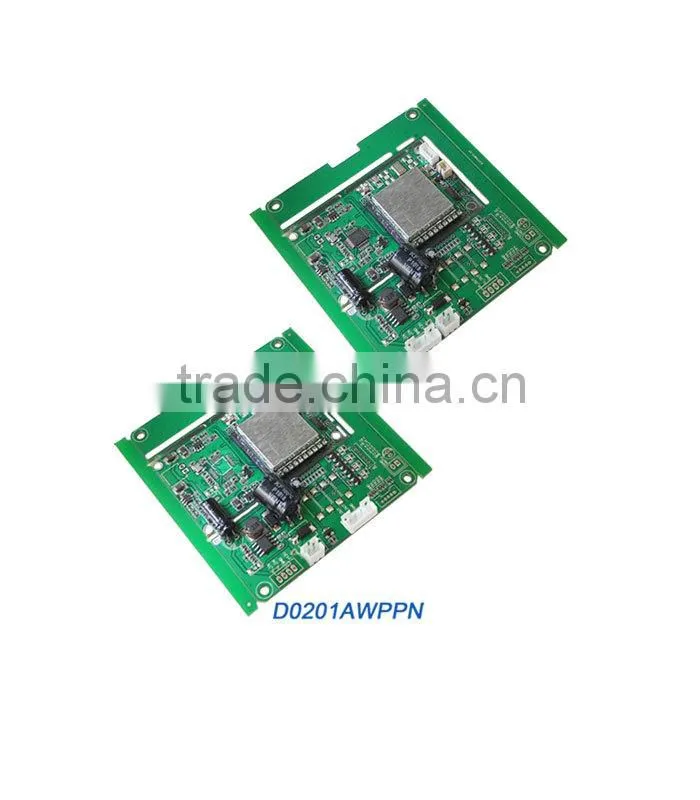

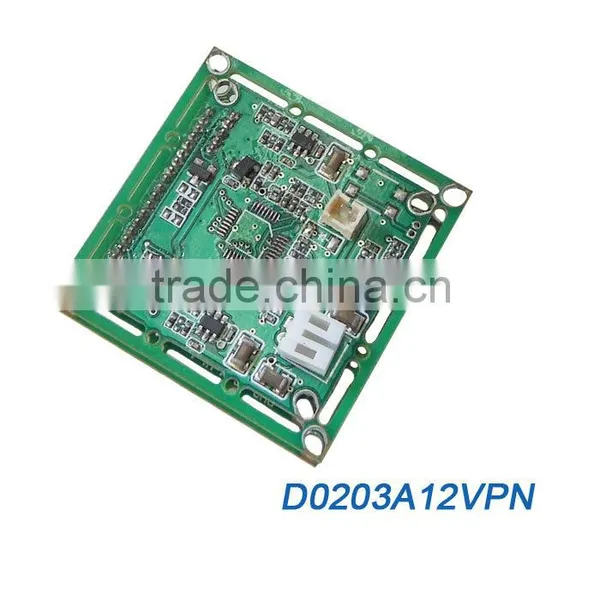

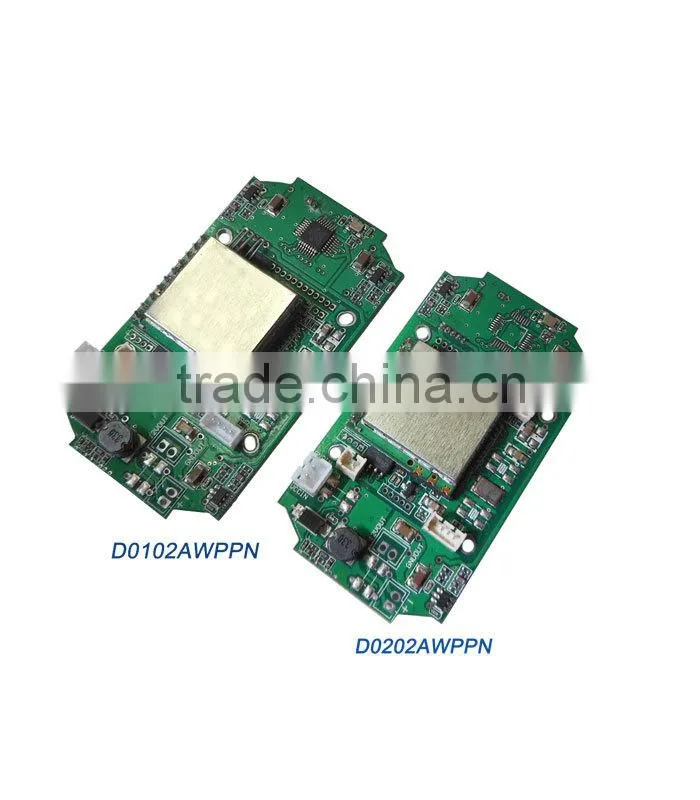

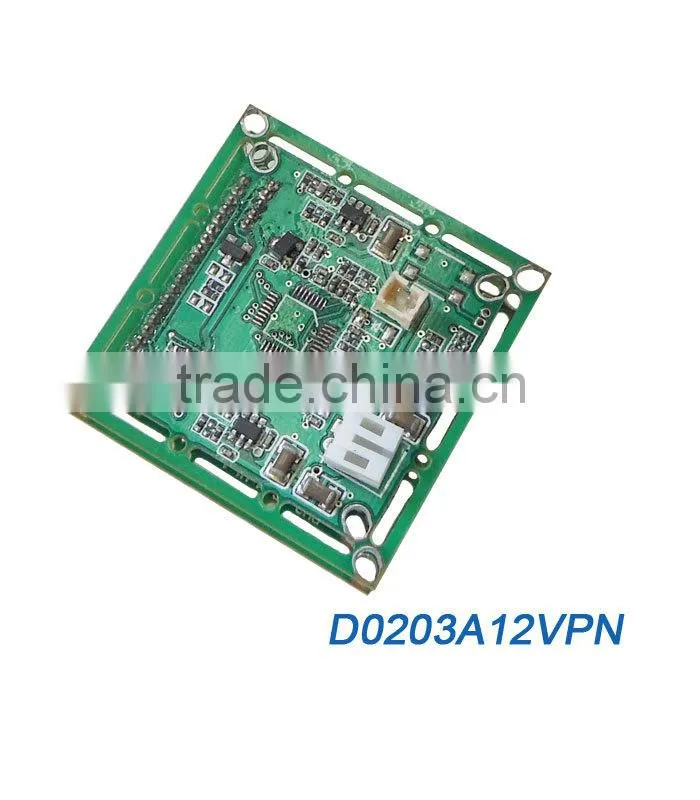

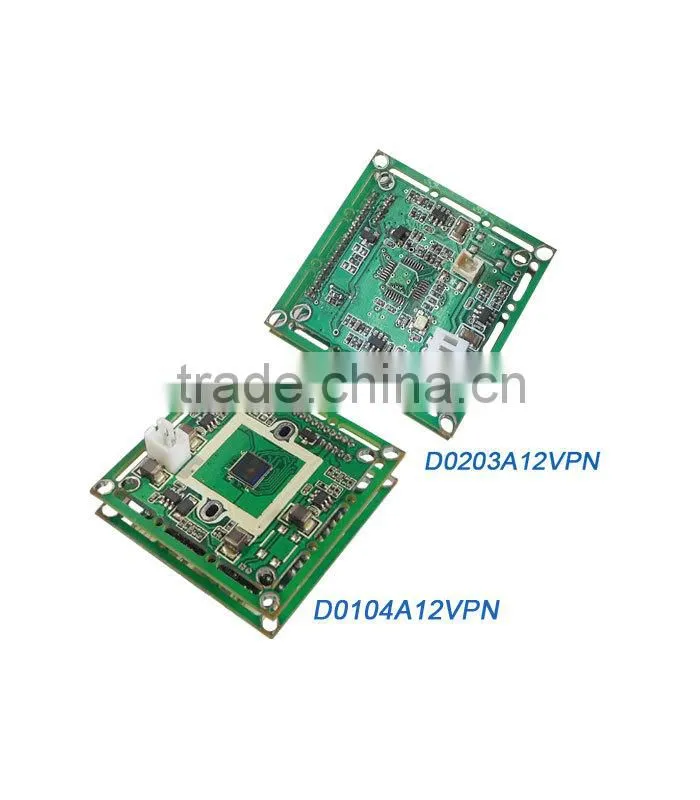

Similar camera module
One pair in one inner box,40 pairs in one carton or as clients' requirement
For samples the products can be shipped within 7days ,For order the lead time is within 15days.
We can support all kinds of delivery ways such as by sea ,by air or all kinds express,client also can use their own carriers.
1.All goods will be inspected and test before shipment
2.All inquiry will be responded within 24 hours
3.Support high quality,competitive price and fast lead time
4.Provide lifetime technical support service
5.You can pay your order via T/T,WU,Paypal and so on
Shivision CO., Ltd located in Tianhe District, Guangzhou, is a high-tech enterprise engaged in researching, developing, manufacturing and marketing vehicle rear vision products and surveillance products. Being in this field for more than 10 years, our company has been bringing in advanced manufacturing facilities, cutting-edge technology, and high-quality professional talents. The company has independently developed a series of intelligent cameras, digital LCD, video signal wireless processing system, image processors, and video recorders, etc.
Our company insists on "Independent R&D" and "Customer Oriented" as the business philosophy. We maintain advanced innovation ability, and keeps strict quality control of products. Through years of effort, our company has gained recognition and reputation from the majority of customers;the products are exported to overseas.
We have established trade relations with more than 150 countries, and the export rate has reached more than 95%. In addition, the company has been certified with the highest international level of quality management system in auto industry ISO/TS16949:2009, and we are also in strict accordance with the EU ROHS standard during manufacturing. Meanwhile, a variety of our products have reached the highest waterproof rating of IP69K, and approved with CE, FCC, and EMARK, etc. Besides, our company has won 4 Design Patent, 2 Utility Model Patent, and 7 Software copyright, which enable us to become one of the world's largest suppliers of rear view products in the world.
Testing machines show:
Certications:
1.Q: I like this appearance but I don't like the detail specifications, can I change the data?
A: Of course.,our engineers will design the goods according to your requirement.
2.Q:May I buy 1 sets as sample for testing?
A:Yes. We can support you the sample but not free.Once when the order is confirmed we can reimburse buyerwhole sample charge.
3.Q:Which certifications your products have?
A:ISO,CE,RoHs,FCC,E-MARK and so on.If you need others we also can do for you but you have to reach the quantity.
