Detailed Description
Introduction of Series WXC Centerless Lathe
Series WXC Centerless Lathe is a high-efficiency lathe which is specialized in rough processing and finishing of the surface of slender shaft. Not only quickly remove surface hardened layer,cracks and other defects,but also can get high precision.
During processing,the bar itself doesn’t rotate.The cutter head drives the tools rotating at high speed to peel the surface bar.At the same time,after peeling,the bar keeps walking straight ahead.The machine suits for processing the bars and wire rods.
Series WXC Centerless Lathe,includes semi-automatic hydraulic type and CNC type.
Specification | WXC100S | |
RAW | DiameterRange(mm) | Φ25~Φ100 |
Raw Material Length(mm) | ≥3000 | |
Tensile Strength (Mpa) | ≤1100 | |
Surface Hardness | ≤HB320 | |
Curvature(mm/m) | ≤1.50 | |
Diameter Tolerance | According to GB 702-2004 second group | |
Roundness(mm) | ≤50% of the diameter tolerance | |
Surface Roughness(Ra) | ≤25~50mm | |
FINISHED | DiameterRange | Φ24~Φ98 |
Unilateral Cutting Depth (mm) | 0.5~2 | |
Diameter Tolerance | ≤IT9(standard tolerance grade) | |
Surface Roughness(Ra) | ≤6.3μm | |
Roundness(mm) | ≤0.04 | |
Feeding Cutting Speed(m/min) | 0.5~5(for continuous chips and high strength and hardness should reduce the speed) | |
Cutter Head Rotational Speed(rpm) | 240~670(Six Poles) | |
Host Machine Motor Power(KW) | 90 | |
Auxiliary Machine Motor Power(KW) | 7.5(clamping and feeding)+7.5(Carriage) | |
Host Machine Outline Dimensions (Length*Width*Height) m | 4.4m X 3.0m X 2.5m | |
Full Set Machine Outline Dimensions (including auxiliary machine) (Length*Width*Height) m | 16m X 3.2m X 2.2m | |
Host Machine Weight (including auxiliary weight) (T) | 13.5 ( 20.2) | |
Total Capacity(KW) | 130 | |
Compressed Air Source (user prepare by themselves) | 0.5-0.8Mpa,1.8m3/min,0.8m3 gasholder,two-stage oil-water separator and compressed air freezing drier. | |
Introduction of Straightening machine
Series JY straightening machine ,this machine is mainly used for
precision straightening and calendering for the bar after peeling or grinding and rough pre-straightening for the black bar.
Due to calendering and straightening can be completed at the same time, so the working efficiency is high.
The machine adopts special curve between upper and lower concave and convex two straightening rolls to realize calendering and straightening at the same time.
Series JY two-rolls Straightening Machine, includes two-beams and four-columns structure, prestressed structure and frame structure.
Specification | JY100Z | |||
Raw
Material | Diameter Range(mm) (excluding drawing material) | Tensile Strength σb≤450(M pa) | Φ25≤d≤Φ100(L ≥3000) | |
Tensile Strength σb≤1000(M pa) | Φ25≤d≤Φ90(L ≥3000) | |||
Surface Hardness | ≤HB380(≤HRC42) | |||
Straightness(mm/m) | ≤3 | |||
Diameter Tolerance | ≤IT10 | |||
Circular Degree | d≤50 | ≤50% of diameter tolerance | ||
50<d≤80 | ≤65% of diameter tolerance | |||
d>80 | ≤70% of diameter tolerance | |||
Surface Roughness(Ra) | ≤3.2~6.3mm | |||
Finished
Goods | Straightness(mm/m) | ≤0.40 | ||
Diameter Tolerance | ≤IT8 | |||
Surface Roughness(Ra) | ≤0.8μm | |||
Roller Quantity (Pcs) | 2 | |||
Roller Diameter (mm) | Φ380 | |||
Straightening Feeding Speed(m/min) | 2~12(infinitely adjustable-speed) | |||
Host Machine Motor Power (KW) | 75X2 | |||
Lifting Motor Power (KW) | 4 | |||
Host Machine Outline Dimensions (Length*Width*Height) | 8.1mX3.1mX3.6m | |||
Weight | 26.2T | |||
Total Capacity KW | 170 | |||
Compressed Air Source (user prepare by themselves) | 0.5~0.8MPa,1.8m3/min,two-stage oil-water separator | |||
About us
Yantai Haige International Trading Co.,Ltd., is a joint-stock enterprise engaged in exporting niche mechanical equipments produced in China to the markets abroad, which is located in Laishan district, Yantai City, Shandong Province, China.
The company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd.

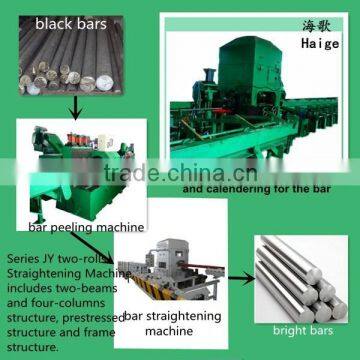

So far, the company has produced and sold more than 1500 sets of equipments.The machines are mainly used to process the surface of the steel, copper, titanium, magnesium, aluminum and other metal round bars, pipes and wire from Φ5mm~Φ500mm. The peeling machine, straightening machine and polishing machine can be combined into automatic production lines for processing and finishing of the bright steel which remove cracks, oxide layer, decarburized layer and other defects from the bar surface quickly. High quality bright bars, pipes and wire can be produced with high precision and high surface roughness whose working efficiency is several even more than ten times higher than that of the traditional technique.Our company is capable of supplying automatic production line in full sets by expanding varieties of the niche mechanical equipments.
After-sale service
1.Free quality guarantee period for 12 months
2.Free provide long-term technical support
3.Free train buyer's operator in seller's factory
4.Fast responce service within 24 hours
5.Our engineers can offer overseas service,including guiding
installation,commissioning,training,etc.
Packaging
More information,please contact me!Hope that we can create a win-win opportunity.
