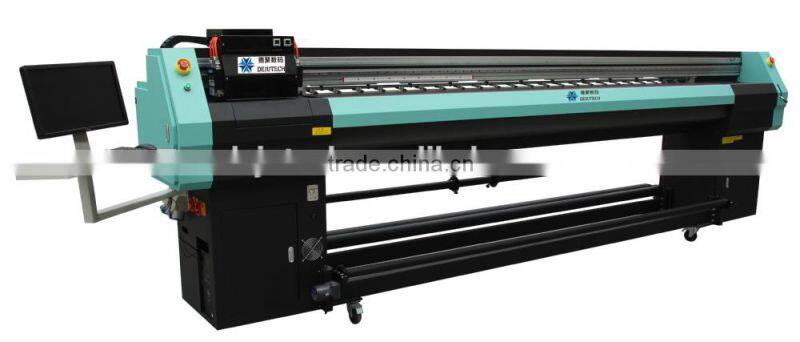

Roll To Roll UV Printer for soft film ,Ricoh GEN4/5 head uv printing machine
----Ink detection alarm system
-----Use Vacuum Ink supply Systems.
-----High-power to the servo motor
-----Print head height adjustment
-----Use imported UV-LED CURING LAMP
-----leg removable structure

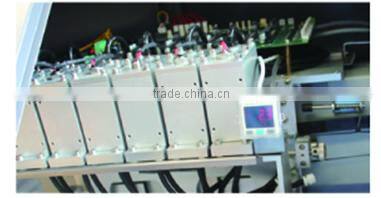

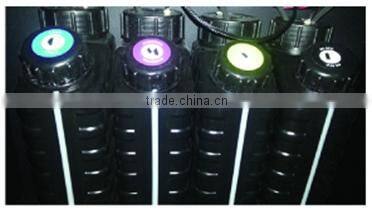

1. Ink detection alarm system 2. Use Vacuum Ink supply Systems
When anyone ink barrel color ink is about to Use Vacuum Ink supply Systems that satisfy
run out, this system can point out what color with long time printing.
ink you need to add ink.
ink you need to add ink.

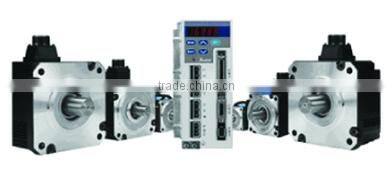

3. High-power to the servo motor 4. Print head height adjustment
Original DELTA servo motor, with digital Easy operating print head height
accurate driver, developed the running adjustment could be used according to all
accuracy of the machine. kinds of media thickness and actual printing needs.

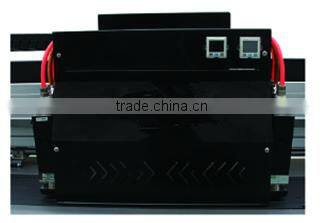

5.Use imported UV-LED CURING LAMP 6. UPS Power
Use international famous brand UV-LED curing Use vacuum ink supply systems that cracking, rapid drying long using life satisfy with long time printing
Ricoh GEN-4/5 HEAD
The machine adopts the Ricoh GEN-4 of high-speed print head, it contains 384 or 1280 nozzle,which is four times of past numbers of nozzles

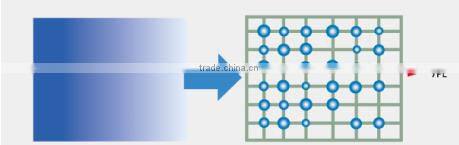

New variable droplet technology:
The new variable droplet control technology achieve the eight grayscale to make the parinting more delicate& accurate, By addopting this variable do not printing technology, more detailed and smoother gradient printouts can be achieved, which means the print quality is greatly enhanced. It also accelerates the printing speed, so more efficient print jobs can be accomplished.
Technical Specifications
Model |
F 3308 |
Top Resolution |
180x720,240x720,180x1080,240x1080, |
UV energy source |
UV-LED CURING LAMP |
Media printing width |
3.2m(126 inch) |

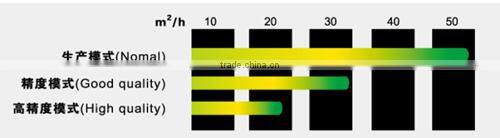

Speed |
2pass 80m2/h 3pass 65m2/h 4pass 45m2/h |
Color |
C ,M,Y,K / C,M,Y,K, L C,LM (Optional) |
Width |
3.2m(126 inch) |
Media handling |
Roll to Roll |
Media |
aper / Advertising banner /PET/PC/ PVC / Adhensive vinyl and so on |
Ink |
UV LED curing Ink |
Image format |
TIFF/JPG/EPS/PDF/BMP |
Working flow |
Use photoprint with PRT format to print |
RIP software |
photoprint 12 |
Control station |
Windows 2000 workstation / Windows XP / Vista /Window 7 |
Operation environment |
Power Supply:AC,50HZ/60HZ 220v(10%) |
Dimension |
4420X1350X1400MM |
Weight |
650Kg |
Application :
can be applied to all kinds of materials,like sticker,canvas,flag signs,indoor and outdoor banners,leather,cloth,decorative pictures,textile,film,wallpaper and so on.

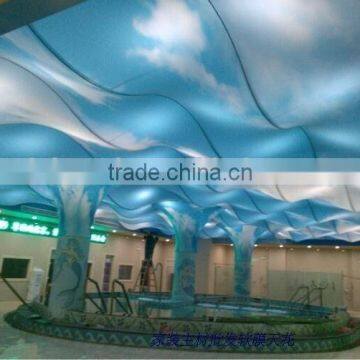

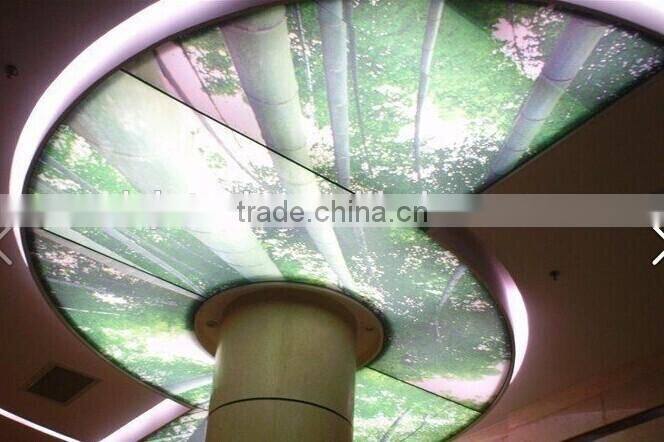

Soft film for ceiling:
Wallpaper:
Sticker :
Banner :
