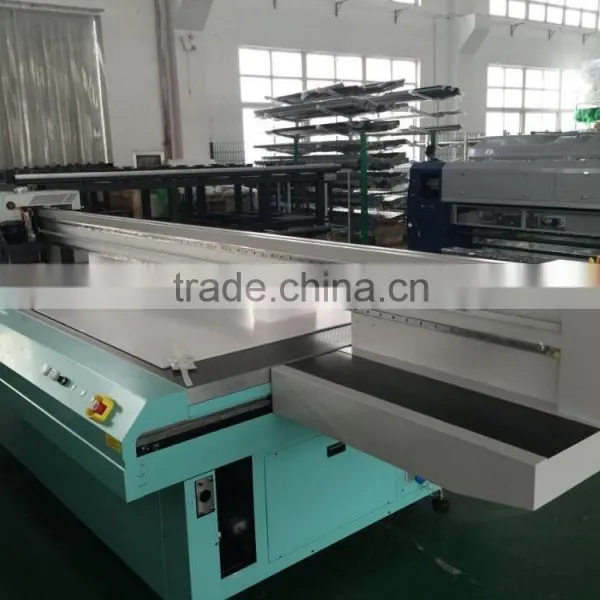

Help CenterLarge Format UV Flatbed Printer, 2.70m*1.25m UV Flatbed Printer With Konica or Ricoh Gen5 Head, CMYK LC LM White Varnish Color
Related Products
-
Machinery for Wood Door With KM512NegotiableMOQ: 1 Piece -
2mx3m UV Printer With km 512 or km 1024 PrintheadNegotiableMOQ: 1 Piece
-
Ceramic Tile UV Printer DEJU F2030 With KM 512/14PLNegotiableMOQ: 1 Piece
-
Ceramic Toner Printer With km 1024NegotiableMOQ: 1 Set
-
Impresoras Gran Formato 2mx3mNegotiableMOQ: 1 Piece

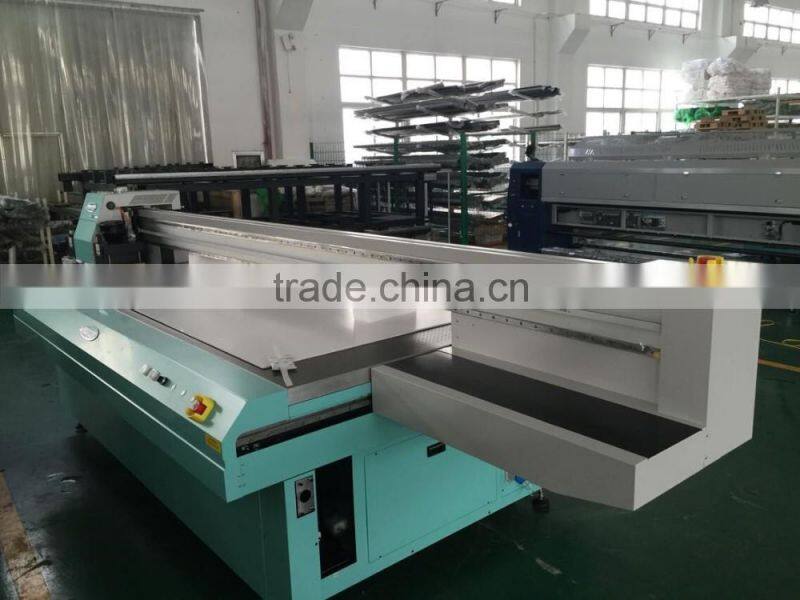

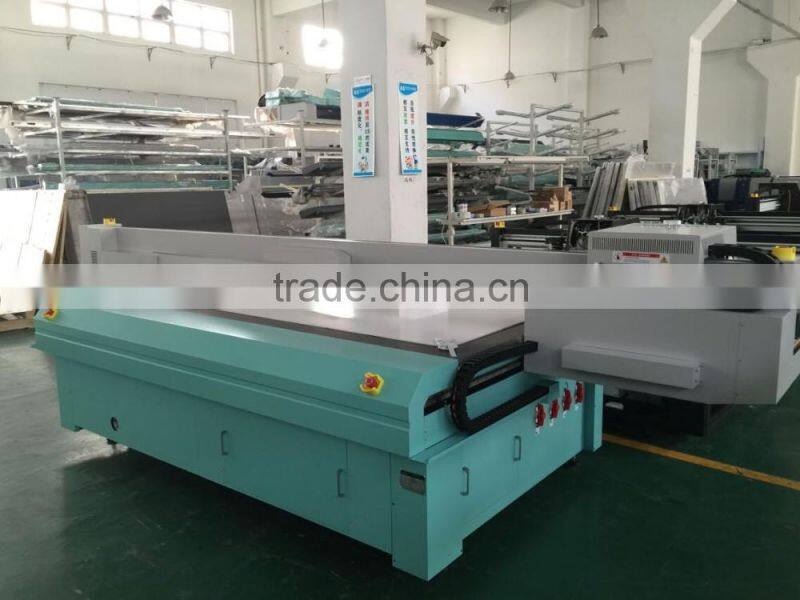

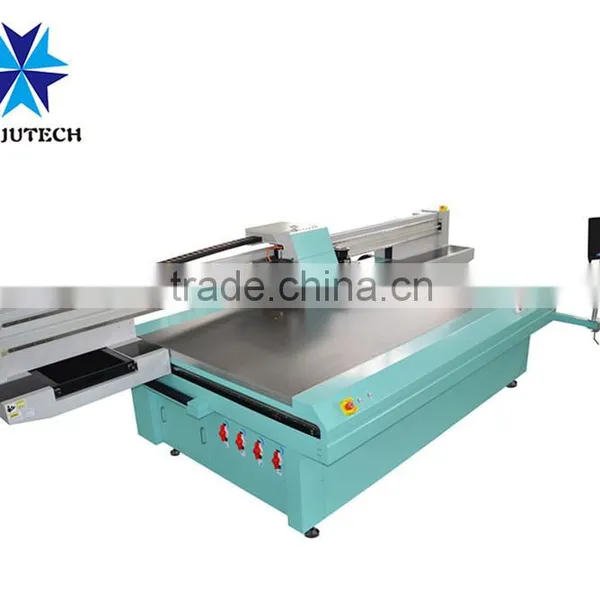

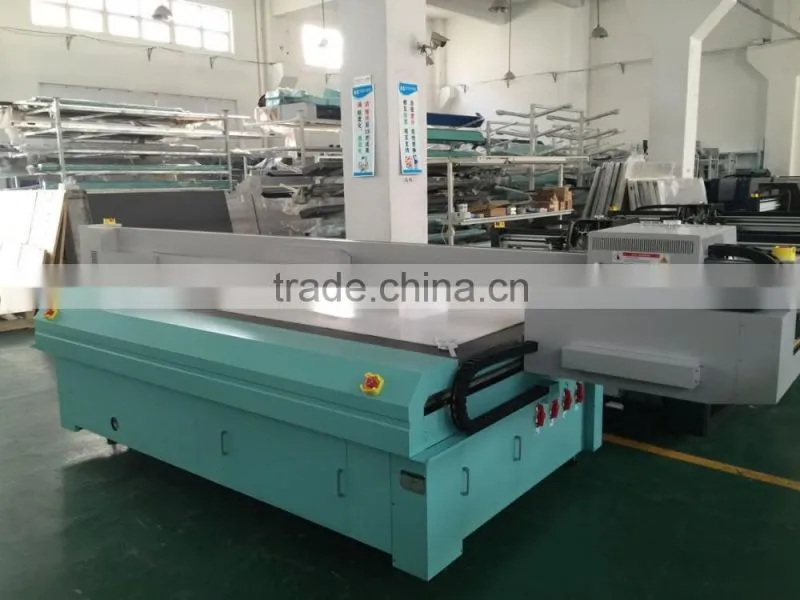

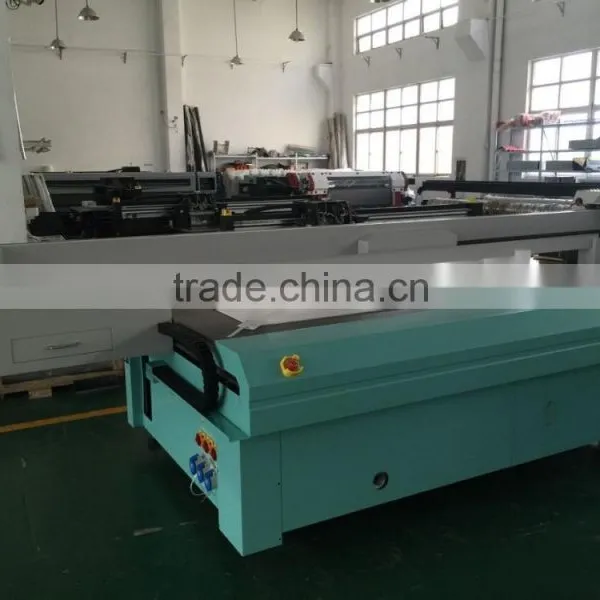

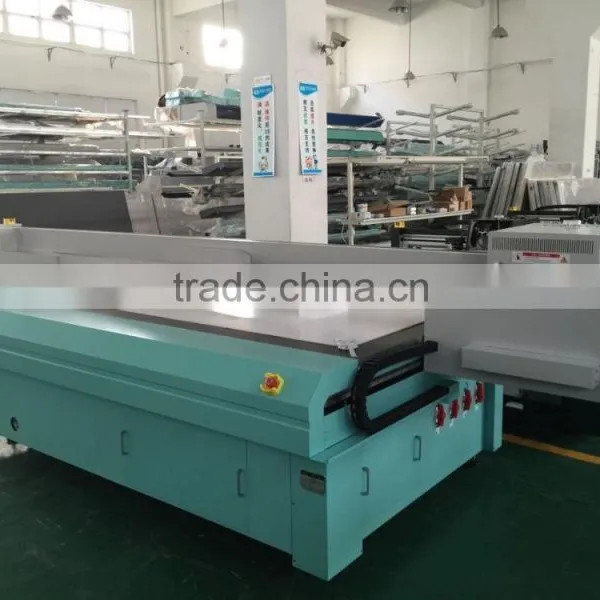

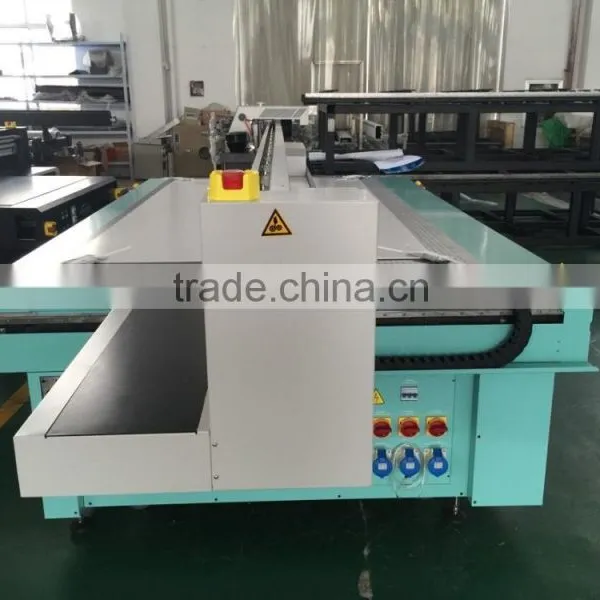

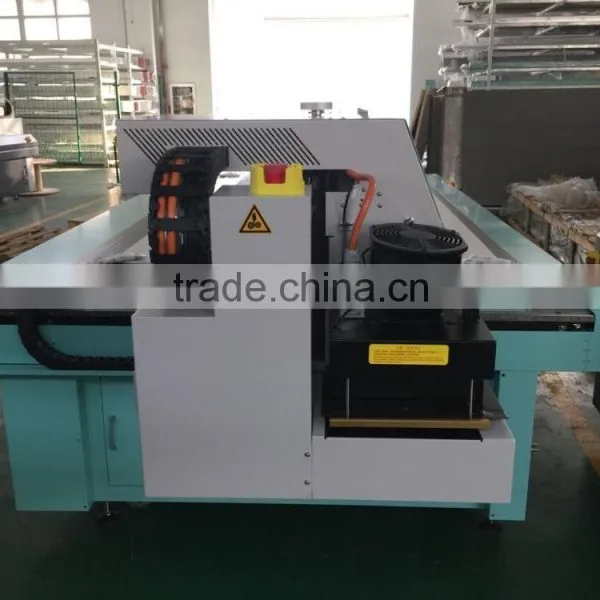

2.7m*1.25m UV flatbed printer with Konica or Ricoh Gen5 head
1.Technical Specifications
Model |
F2512 |
Color |
C, M, Y, K, Lc, Lm, White and Varnish |
Printhead |
Konica or Ricoh GEN5 print head |
Drying system |
UV Mercury lamp or UV LED lamp |
Speed |
Up to 40sqm/h |
Media |
Wood, Aluminum, MDF, glass, ceramics, acrylic, metal etc |
Printing Size (width*deepth) |
Max Printing Area: 270cm(width)*125cm(depth) Max Material Size: 275cm(width)*130cm(depth) |
Thickness of Material |
less than 11cm |
Weight of Material |
Panel:≤45 kg/m2 |

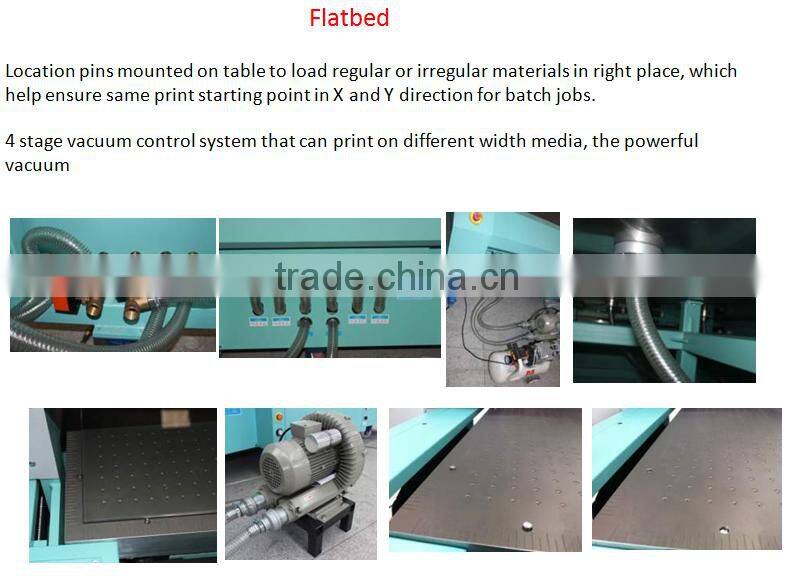

Flatbed Vacuum |
4 stage vacuum adapt to the max working area dimension |
Outdoor life |
At least 3 years outdoor/10 years indoor |
Image format |
Tiff, JPEG, EPS etc |

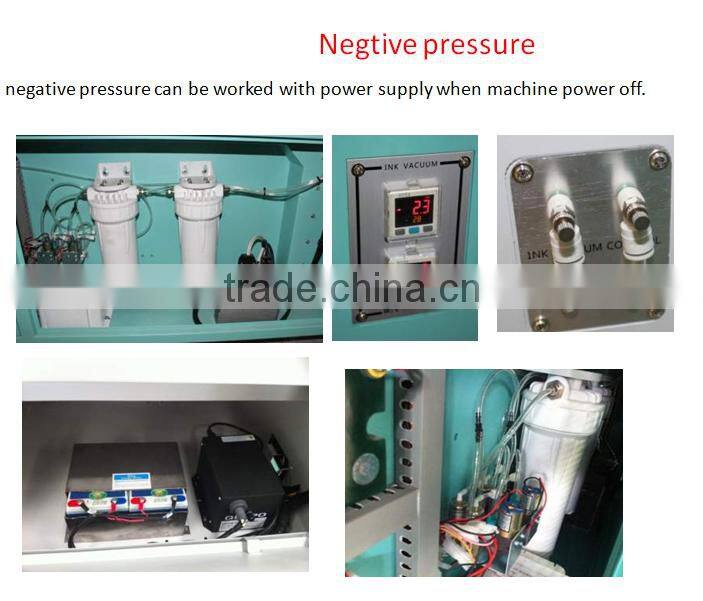

Ink supply system |
Auto Negative Ink Supply |
Ink Capacity |
2.5L drums, automatic ink control, non-stop and ink |
Power Supply |
6.2KW, AC,50HZ/60HZ , 220v(±10%)>15A |
Printing software |
Photoprint 10/Caldera |
Dimensions (L*W*H) |
5.40*2.20*1.65(M) |
Net & Gross |
1300kg & 1650kg |
Package dimensions |
6.80*4.0*2.50(M) |
Operation environment |
Temperature: 15-30°C(59-86°F) |
Safety Certification |
CE Certification |

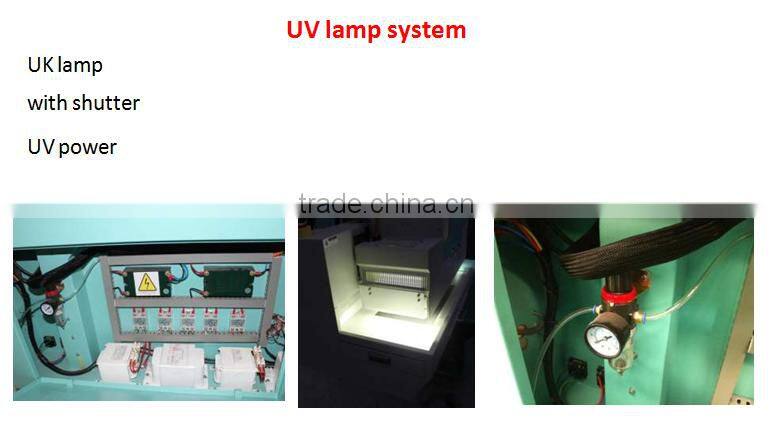

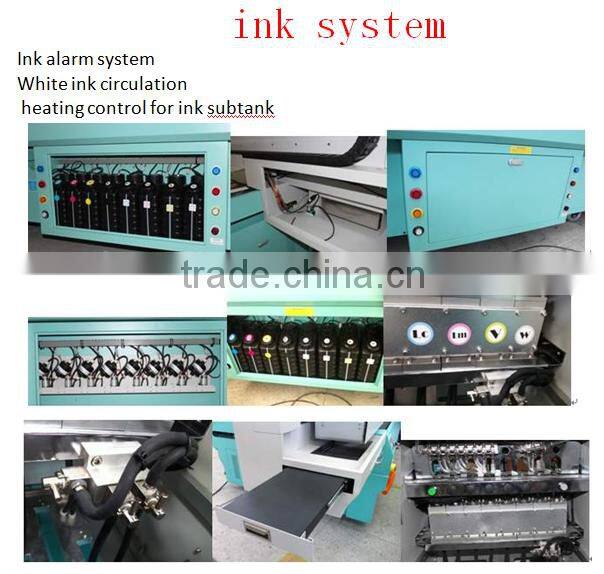

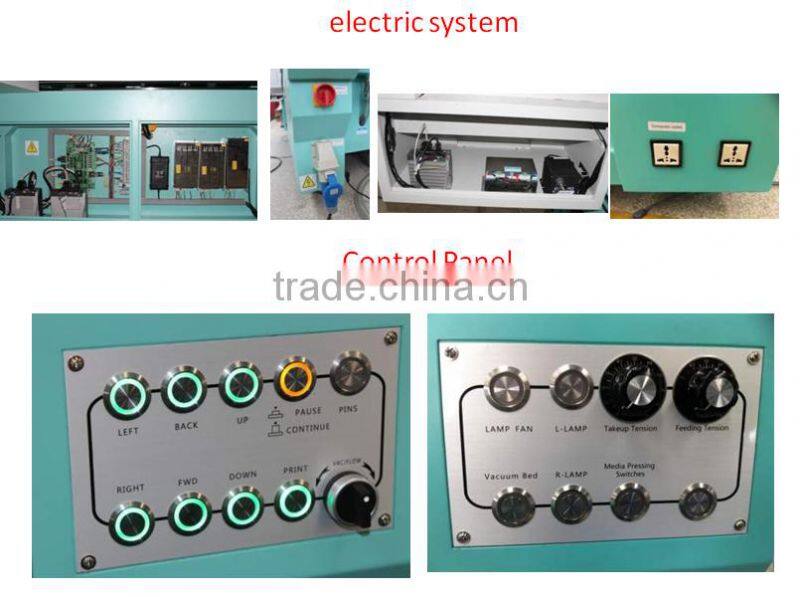

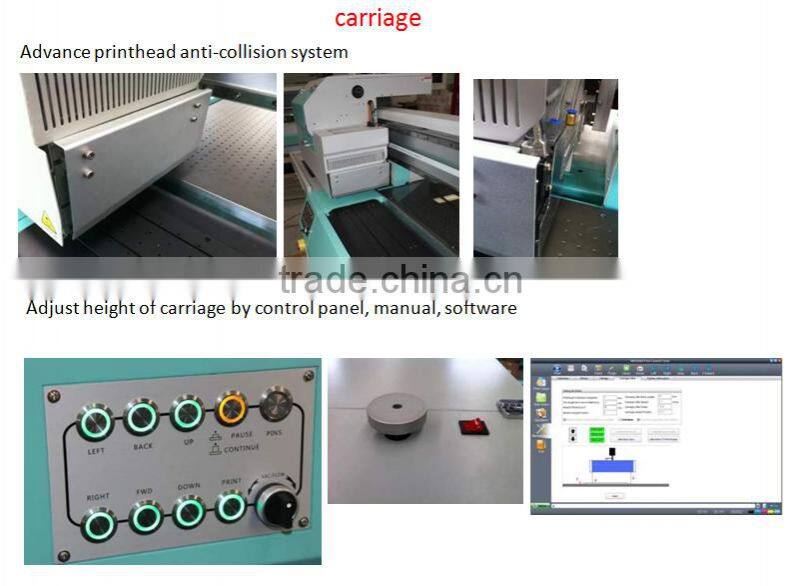

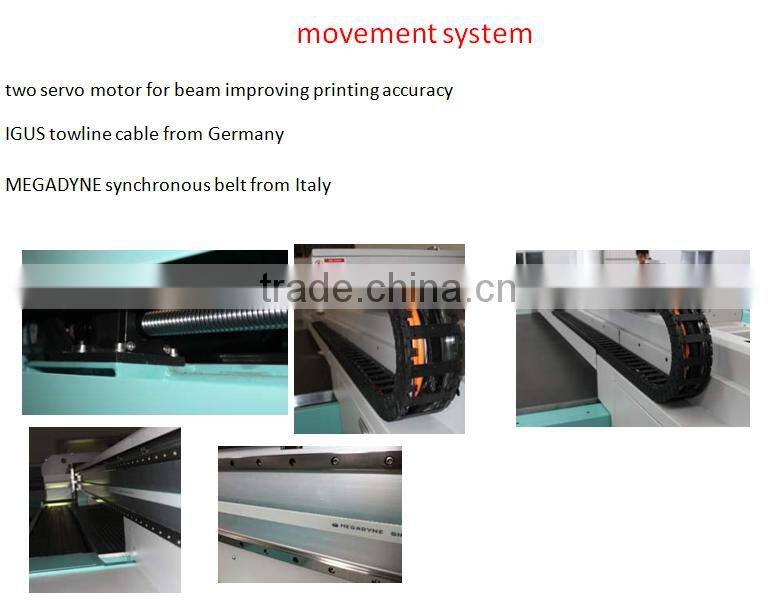

2.Machine Features
3.Printed Sample
glass
3d ceramic tile
wood
Soft film
Board
