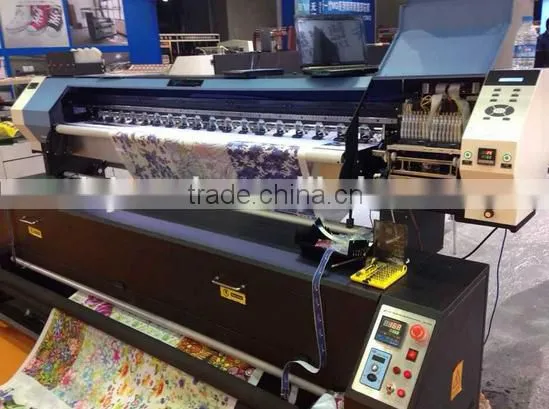

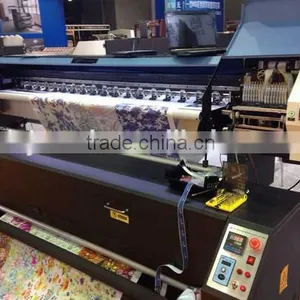

Digital sublimation direct printer for fabric in guangzhou
NEW technology on DX5, less ink consumption
High Resolution up to 1440dpi
High Printing speed up to 36sqm/h
High working stability, industrial performance
♣ High Productivity
♣ Long Using Life
♣ High Yield
♣ Support double DX5 print head
♣ Equipped with automatic print head maintenance station
♣ Positive ink supply system with 1500ml/color capacity ink tank
♣ Perfect Color Presentation
♣ Perfect brushless Servo Motor with DSP digital controlling technology
♣ Original Industrial HIWIN non-noise linear rail
♣ High resolution media feeding system, more accurate
♣ Industrial vacuum table keep high resolution printing quality
♣ LED lighting system, easy printing and operation
♣ High-tech on printing control, less ink consumption
Specification:
Model |
YF-1700S |
YF-2000D |
YF-3200D |
|||
Resolution |
Up to 1440dpi VisualResolution |
|||||
Printhead |
Piezo Technology DX5 |
|||||
Print head number |
1 PC |
2 PCS |
2 PCS |
|||
Printing Width |
1650mm |
1850mm |
3200mm |
|||
| ||||||
Printing Speed(sqm/h) |
Production : 14 Standard: 13 High Resolution : 10 |
Production : 32 Standard: 26 High Resolution : 22 |
Production : 48 Standard: 40 High Resolution : 33 |
|||
Ink Type |
Sublimation Ink |
|||||
Ink Supply System |
Positive ink supply system with cleaning function Ink tank capacity: 1500ml/color |
|||||
Color |
Double CMYK |
|||||
Media Width |
1700mm |
1900mm |
3200mm |
|||
Media Thickness |
1.5mm (1.5mm-5mm adjustable) |
|||||
Media Roll Diameter(I/D) |
55mm or 76mm/ <200mm |
|||||
Maximum Media Weight |
100KG |
100KG |
150KG |
|||
Media Type |
Vinyl, Flex Banner, Mesh, One Way Vision, Paper, Textile, Wall Paper, Coated Banner, Canvas, Film, Lint-free Cloth, Photo Paper etc. |
|||||
Data Communication |
High speed USB2.0(480m/s) |
|||||
Image data format |
BMP, TIFF, EPS,PDF, AI, JPEG |
|||||
Rip |
Ultra Print V4.4 YIFANG Version |
|||||
Operation environment |
Power supply: 220v(±10%), >10A,single phase (Temperature): 18℃-35℃ (Humidity): 40%-70% |
|||||
Power Consumption |
700W |
700W |
1200W |
|||
Machine Size (L x W x H) |
2.7 x 0.86 x 1.28 m |
2.98 x 0.86 x 1.28 m |
4.36 0.86 x 1.28 m |
|||
Packing Size (L x W x H) |
2.7 x 0.76 x 0.83 m |
2.95 x 0.76 x 0.83 m |
4.5 x 0.95 x 1.46 m |
|||
Gross Weight / Net Weight |
300KG/225KG |
340KG/420KG |
840KG/750KG |
|||
The exact configurations of equipment are subject to real machine | ||||||
Motor |
Perfect Brushless Servo Motor |
|||||
Linear Rail |
Original Industrial HIWIN non-noise linear rail |
|||||
Heating System |
Digital Control Pre & Back Heater |
|||||
Media Feeding |
Yes |
Yes |
Yes |
|||
Drying System |
Optional |
Yes |
Yes |
|||
IR Drying System |
Optional |
Optional |
Optional |
|||
Media Handling |
Roll to roll handling |
|||||
Take-up System |
Optional: single/double driven automatic take-up |
|||||
1.textile Heat transfer printing way:
2. textile Directly printing way:
