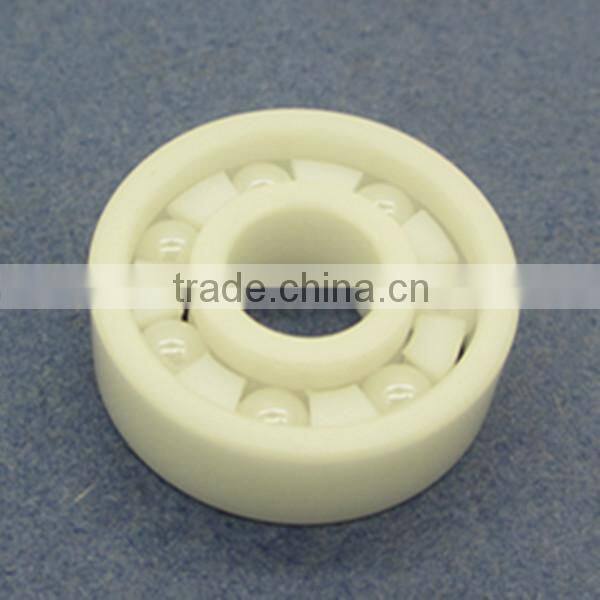

608 cheap full ceramic bearings for inline skate Introduction:
item number :608
material :full ceramic ZRO2 /Or according to your requirements
size :8*22*7 mm

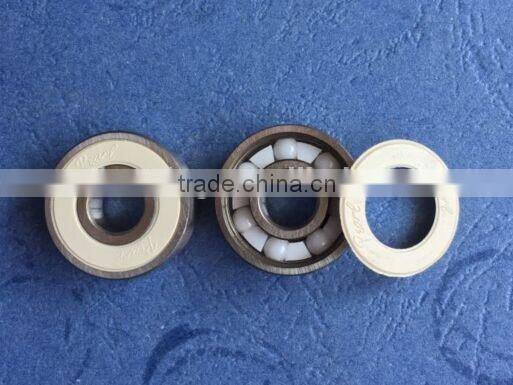

608 skateboard ball bearing with chrome steel +zro2 ceramic balls
608 skateboard ball bearings with full ceramic zro2
| Brand | GB Bearings | ||
| Name | Ceramic Ball Bearing | ||
| Model | 60 series, 62 series, 63 series, 67 series, 68 series and 69 series... | ||
| Material | Ceramic Si3N4,ZRO2 | Certificate | ISO9001:2001 |
| Precision | P0, P6, P5, P4 | ||
| Bore Size: | 4mm-120mm | Outside diameter | 9mm-150mm |
| Clearance | C0,C1,C2,C3,C4,C5 etc. | ||
| Cage Type | PTFE, Nylon, PEEK | ||
| Seals Type | ZZ,RS, 2RS, R2, Z, 2Z, 2RZ etc | ||
| Features |
1.high-speed, 2.high temperature, 3.Corrosion-resistant, 4.antimagnetic, 5.electrical insulation, 6.vacuum |
||
| Application |
Medical equipment, optical instruments, printing machinery, high-speed machine tools, high-speed motor, cryogenic engineering, food processing machinery |
||
| Package | 1PC/ Plastic tube +1pc/color box+ carton ,industrial package or as customers' requirement | ||
We can offer different Ceramic Bearings Pictures:
|
|
|
|
| Hybrid ceramic bearings | ceramic spherical bearing | Flanged ceramic bearings | double row ceramic bearing |
|
|
|
|
| Aligning bearings ceramic | non-standard ceramic bearing | loose ceramic ball | Full ceramic bearings |
Partial Ceramic Ball Bearing No.:
| Model | Dimensions(mm) | Mounting dimensions(mm) | Weight | |||||||
| da | da | Da | ra | (kg)(refer) | ||||||
| d | D | B | r(min) | min | max | max | max | ZrO2 | Si3N4 | |
| 684CE | 4 | 9 | 2.5 | 0.1 | 4.8 | / | 8.2 | 0.1 | 0.0005 | 0.0003 |
| 694CE | 11 | 4 | 0.15 | 5.2 | / | 9.8 | 0.15 | 0.0013 | 0.0007 | |
| 604CE | 12 | 4 | 0.2 | 5.6 | / | 10.4 | 0.2 | 0.0017 | 0.0009 | |
| 624CE | 13 | 5 | 0.2 | 5.6 | / | 11.4 | 0.2 | 0.0023 | 0.0013 | |
| 634CE | 16 | 5 | 0.3 | 6 | / | 14 | 0.3 | 0.004 | 0.0022 | |
| 685CE | 5 | 11 | 3 | 0.15 | 6.2 | / | 9.8 | 0.15 | 0.0009 | 0.0005 |
| 695CE | 13 | 4 | 0.2 | 6.6 | / | 11.4 | 0.2 | 0.0019 | 0.001 | |
| 605CE | 14 | 5 | 0.2 | 6.6 | / | 12.4 | 0.2 | 0.0027 | 0.0015 | |
| 625CE | 16 | 5 | 0.3 | 7 | / | 14 | 0.3 | 0.0038 | 0.0021 | |
| 635CE | 19 | 6 | 0.3 | 7 | / | 17 | 0.3 | 0.0066 | 0.0036 | |
| 686CE | 6 | 13 | 3.5 | 0.15 | 7.2 | / | 11.8 | 0.15 | 0.0015 | 0.0008 |
| 696CE | 15 | 5 | 0.2 | 7.6 | / | 13.4 | 0.2 | 0.003 | 0.0016 | |
| 606CE | 17 | 6 | 0.3 | 8 | / | 15 | 0.3 | 0.0046 | 0.0025 | |
| 626CE | 19 | 6 | 0.3 | 8 | / | 17 | 0.3 | 0.0063 | 0.0034 | |
| 636CE | 22 | 7 | 0.3 | 8 | / | 20 | 0.3 | 0.0108 | 0.0058 | |
| 687CE | 7 | 14 | 3.5 | 0.15 | 8.2 | / | 12.8 | 0.15 | 0.0017 | 0.0009 |
| 697CE | 17 | 5 | 0.3 | 9 | / | 15 | 0.3 | 0.004 | 0.0022 | |
| 607CE | 19 | 6 | 0.3 | 9 | / | 17 | 0.3 | 0.0059 | 0.0032 | |
| 627CE | 22 | 7 | 0.3 | 9 | / | 20 | 0.3 | 0.0098 | 0.0053 | |
| 637CE | 26 | 9 | 0.3 | 9 | / | 24 | 0.3 | 0.0185 | 0.01 | |
| 688CE | 8 | 16 | 4 | 0.2 | 9.6 | / | 14.4 | 0.2 | 0.0025 | 0.0014 |
| 698CE | 19 | 6 | 0.3 | 10 | / | 17 | 0.3 | 0.0056 | 0.003 | |
| 608CE | 22 | 7 | 0.3 | 10 | / | 20 | 0.3 | 0.0093 | 0.005 | |
| 628CE | 24 | 8 | 0.3 | 10 | / | 22 | 0.3 | 0.013 | 0.0072 | |
| 638CE | 28 | 9 | 0.3 | 10 | / | 26 | 0.3 | 0.022 | 0.012 | |
full ceramic bearings for inline skate packing :
pp bag +white box +carton
or according to your requirements
Company Introduction
Xiamen Goldenbridge Imp. & Exp. Co., Ltd. is an profession bearing manufacturer and exporter. Developing rapidly, we now have both production and trading capabilities. We have attained ISO9001 and QS9000 quality system certifications.
Our product range is wide, including industry bearings, auto bearings and parts. For bearings, we mainly supply ceramic bearing ,automotive wheel bearings, deep groove ball bearings, insert ball bearings, thrust ball bearings, needle bearings, tapered roller bearings, pillow block bearings and thrust ball bearings. We have a powerful technical department which can design non-standard bearings as per your special requirements.
Abiding by our motto of "Rooting by service;leading in quality", we provide our customers with high quality products and excellent service.
Any other questions just let me know .
