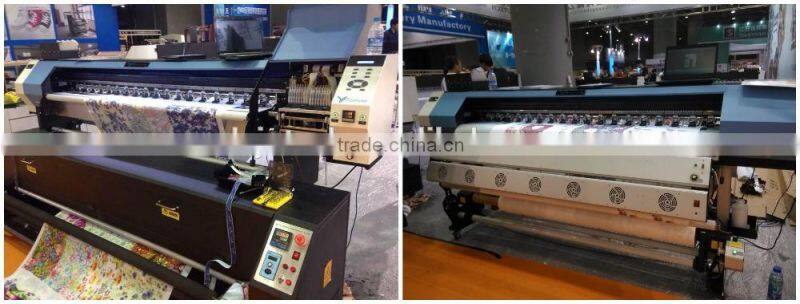

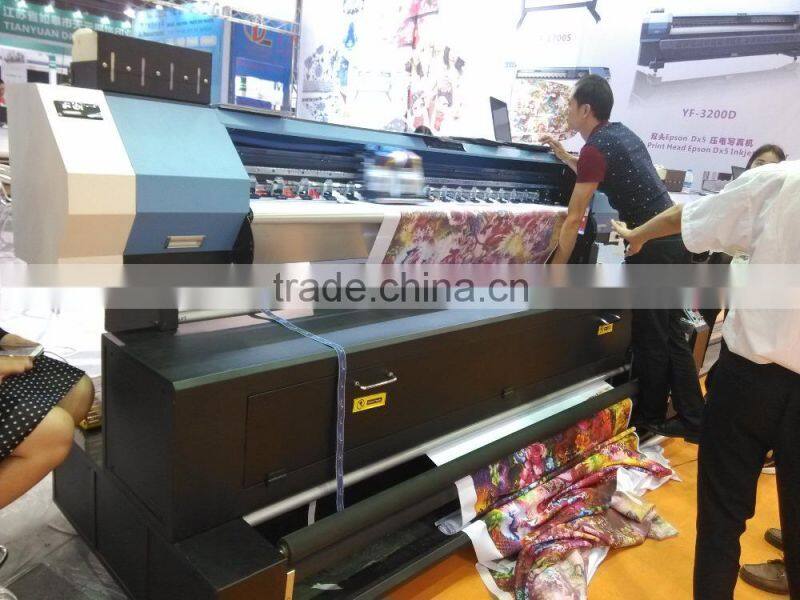

2m/3.2m digital sublimation textile printer with double dx5 print heads
Product Description
1.9m max printing width
With pre and back heater ,IR system and a set of fans
Dye sublimation heater
Good printing effect
Why choose our sublimation textile printer ——2000T?
1.High Productivity.
2.Support double DX5 print head
3.Equipped with automatic print head maintenance station
4.Positive ink supply system with 1500ml/color capacity ink tank
5.Perfect Color Presentation
6.Perfect brushless Servo Motor with DSP digital controlling technology
7.Original Industrial HIWIN non-noise linear rail
8.High resolution media feeding system, more accurate
9.Industrial vacuum table keep high resolution printing quality
10.High-tech on printing control, less ink consumption
Specifications:
Model | DJ-2000T | |
Resolution | Up to 1440dpi Visual Resolution | |
Printhead | Piezo Technology DX5/DX7 printhead | |
Print head number | 2PC | |
Printing Width | 1900mm | |
Printing Speed(sqm/h) | Production:32 Standard:20 High Resolution:12 | |
Ink Type | Sublimation Ink | |
Ink Supply System | Positive ink supply system with cleaning function Ink tank capacity: 1500ml/color | |
Color | Double CMYK | |
Media Width | 1900mm | |
Media Thickness | 1.5mm (1.5mm-5mm adjustable) | |
Media Roll Diameter(I/D) | 55mm or 76mm/ <200mm | |
Maximum Media Weight | 100KG | |
Media Type | Textile, Fabric, Lint-free Cloth, Flag etc. | |
Data Communication | High speed USB2.0(480m/s) | |
Image data format | BMP, TIFF, EPS,PDF, AI, JPEG | |
Rip | Ultra Print V4.4 Version/Photoprint/Maintop | |
Operation environment | Power supply: 220v(±10%), >10A,single phase (Temperature): 18°C-35°C (Humidity): 40%-70% | |
Power Consumption | 700W | |
Machine Size (L x W x H) | 3.01 x 0.86 x 1.28 m | |
Packing Size (L x W x H) | 3.07 x 0.86 x 0.73 m | |
Gross Weight / Net Weight | 300KG/220KG | |
The exact configurations of equipment are subject to real machine | ||
Motor | Perfect Brushless Servo Motor | |
Linear Rail | Original Industrial HIWIN non-noise linear rail | |
Heating System | Digital Control Pre & Back Heater | |
Media Feeding | Yes | |
Drying System | Yes | |
IR Drying System | Optional | |
Media Handling | Roll to roll handling | |
Take-up System | Optional: single/double driven automatic take-up | |

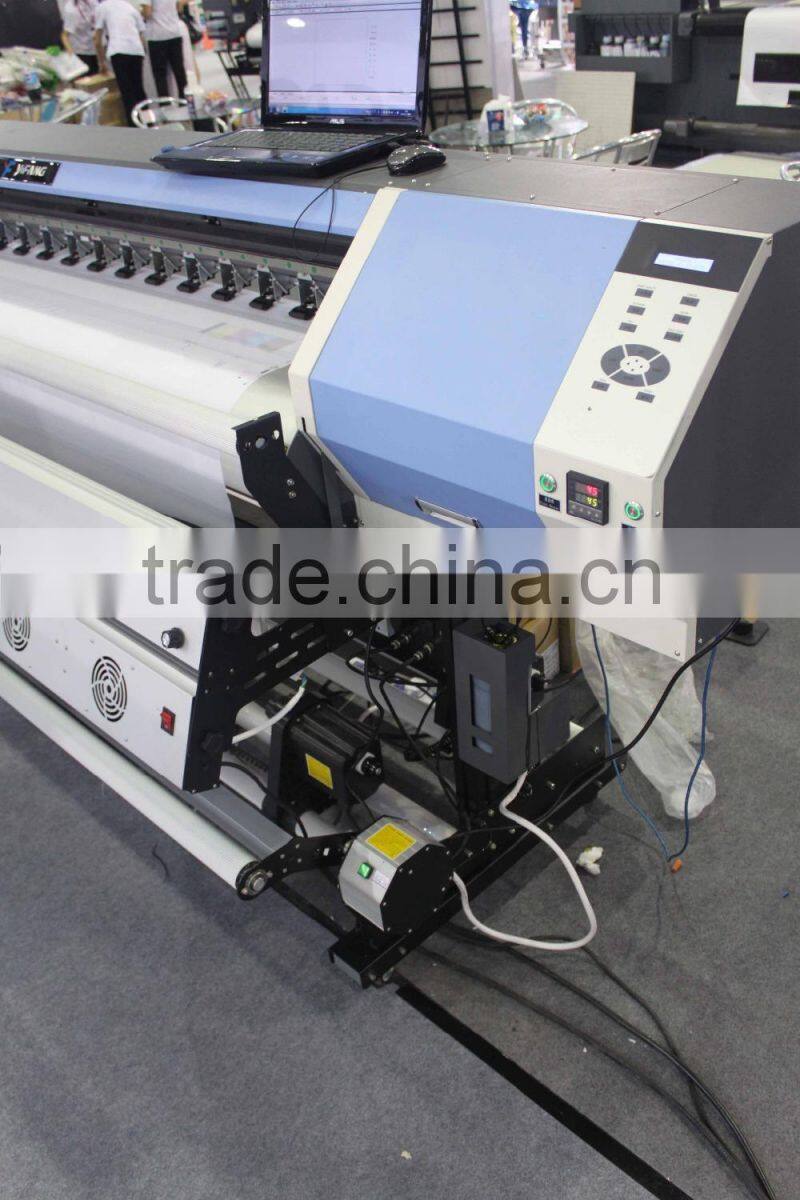

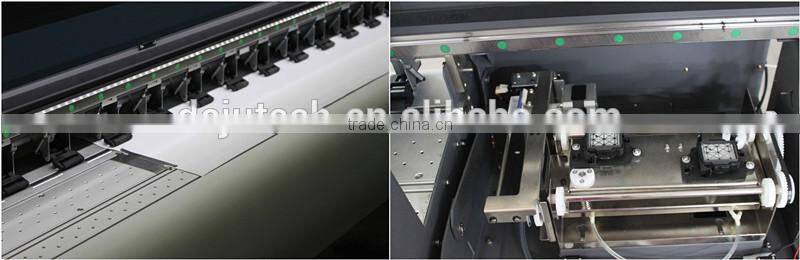

Aluminium alloy platform Capping Station - With automaticly cleaning frame is more stronger . anti-clogging flash function .

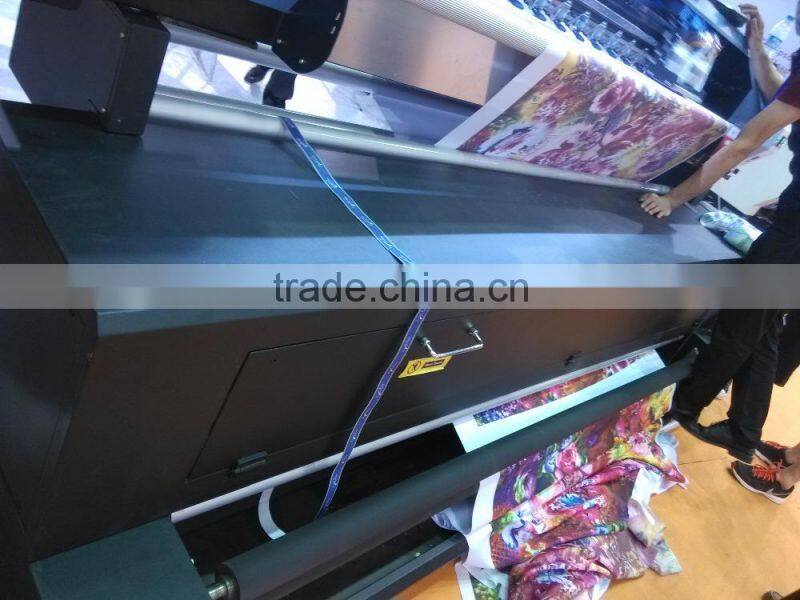

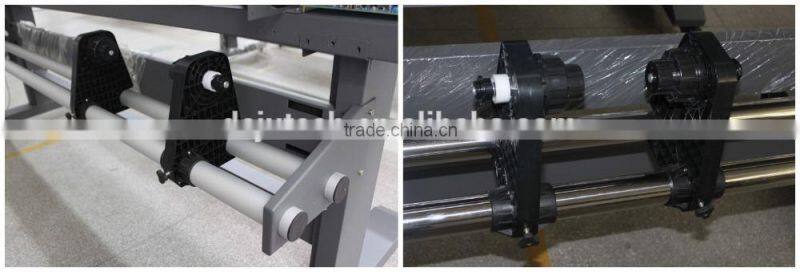

Feed-in system Take-up system with hybrid

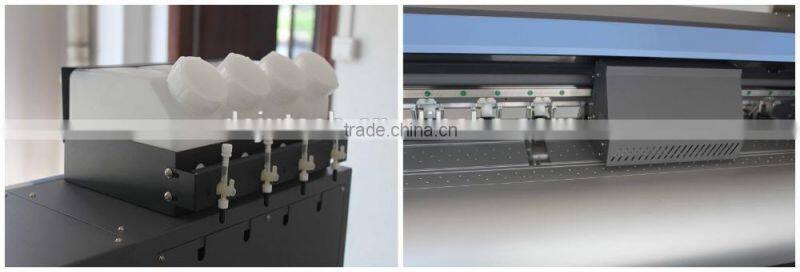

1500ml Ink supply box Carriage

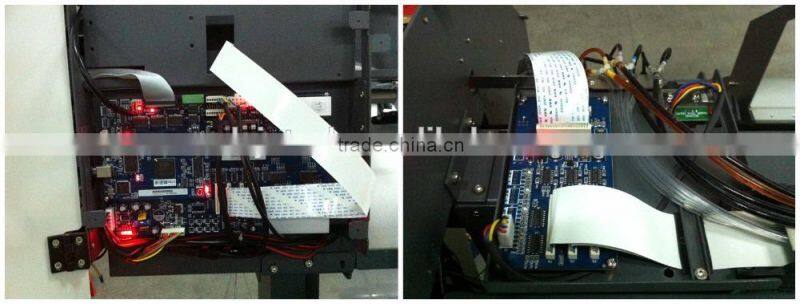

Main board Head board

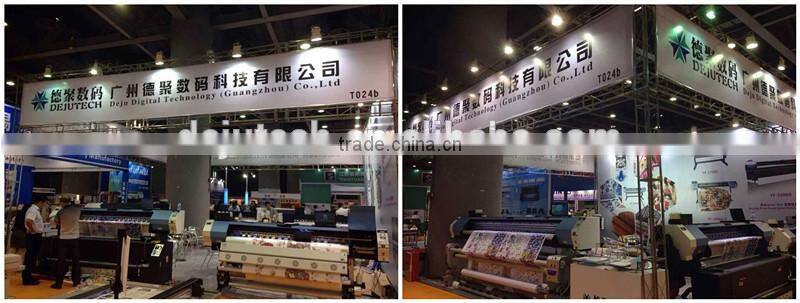

Show
Packing and shipping

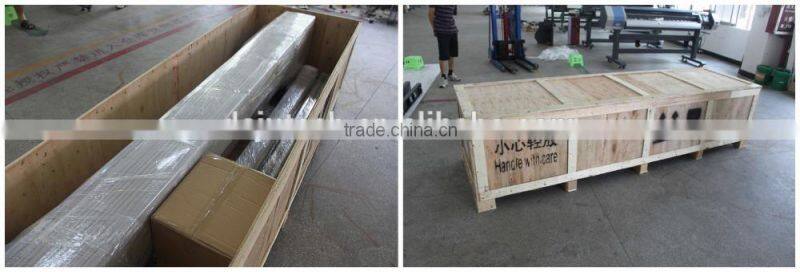

Packing:Wooden package .
Deliver time :within 15 working days
Shipping:helped by our long - term cooperation relationship forwarder ,goods will be sent by ship or by air .
Our service
1.We provide 1 year warranty and online technical support for our printer .
2.When some technical problems,please send detail description,photos or vedio,then our technician will give the resolution accordingly.
3.There are complete English user manuals and inistall video to guide you easily install , operate and maintain the printer. It’s clear and easy to understand.
Application
For more information ,welcome to contact me
vivi
Skype:dejutech1
WeChat :zhx33360
QQ:1807032716
Mobile phone/whatsapp:+8615920332343
