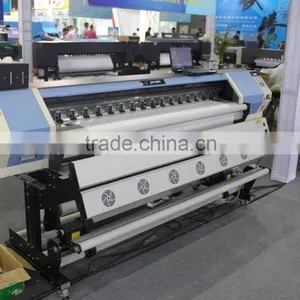

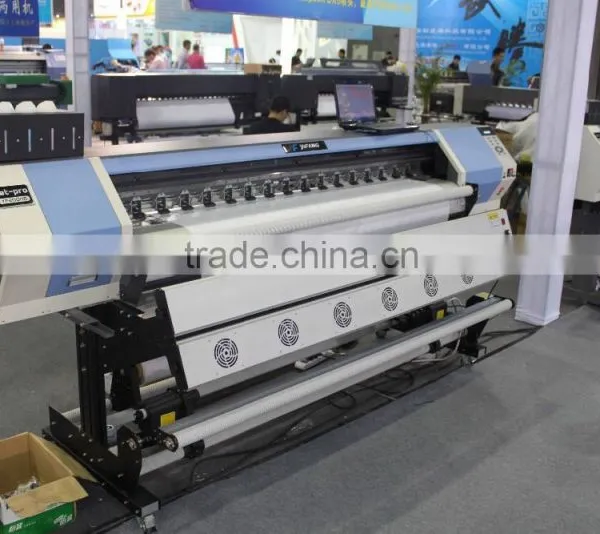

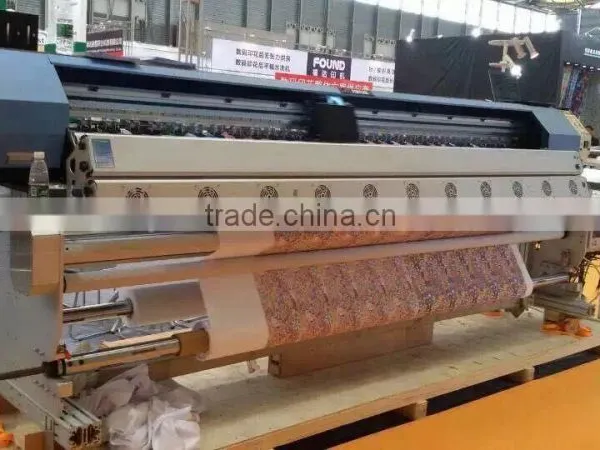

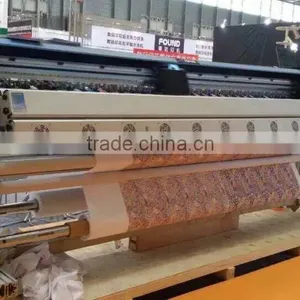

1.9m/3.2m Digital Fabric Printer With Doube DX5 Print Head

Name: 1.9m/3.2m Digital Fabric Printer With Doube DX5 Print Head
Brand: DEJU
SKU: 104552745

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Plate Type:

Flatbed Printer

Place of Origin:

Guangdong, China

Deju Digital Technology (Guangzhou) Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

GuangZhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Flatbed Printer

Place of Origin Guangdong, China

Brand Name DEJU

Model Number 2000T

Usage Cloths Printer, Other, Cloths Printer, textile printer, fabric printer

Automatic Grade Automatic

Voltage 220v(±10%)

Gross Power 700W

Dimensions(L*W*H) 3.01 x 0.85 x 1.235 m

Weight 210KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Features:duuuu

1.High Productivity.

2.Support Double DX5/DX7 print head.

3.Equipped with automatic print head maintenance station.

4.Positive ink supply system with 1500ml/color capacity ink tank.

5.Perfect Color Presentation.

6.Perfect brushless Servo Motor with DSP digital controlling technology.

7.Original Industrial HIWIN non-noise linear rail.

8.High resolution media feeding system, more accurate.

9.Industrial vacuum table keep high resolution printing quality.

10.High-tech on printing control, less ink consumption.

Specification:

Model	2000T
Resolution	Up to 1440dpi Visual Resolution
Printhead	Piezo Technology DX5/DX7 printhead
Print head number	2PC
Printing Width	1900mm
Printing Speed(sqm/h)	Production:32 Standard:20 High Resolution:12
Ink Type	Sublimation Ink
Ink Supply System	Positive ink supply system with cleaning function Ink tank capacity: 1500ml/color
Color	Double CMYK
Media Width	1900mm
Media Thickness	1.5mm (1.5mm-5mm adjustable)
Media Roll Diameter(I/D)	55mm or 76mm/ <200mm
Maximum Media Weight	100KG
Media Type	Textile, Fabric, Lint-free Cloth, Flag, Cotton, Polyester etc.
Data Communication	High speed USB2.0(480m/s)
Image data format	BMP, TIFF, EPS,PDF, AI, JPEG
Rip	Ultra Print V4.4 Version/Photoprint/Maintop
Operation environment	Power supply: 220v(±10%), >10A,single phase (Temperature): 18°C-35°C (Humidity): 40%-70%
Power Consumption	700W
Machine Size (L x W x H)	3.01 x 0.85 x 1.235 m
Packing Size (L x W x H)	3.07 x 0.74 x 0.70 m
Gross Weight / Net Weight	270KG/210KG
The exact configurations of equipment are subject to real machine
Motor		Perfect Brushless Servo Motor
Linear Rail		Original Industrial HIWIN non-noise linear rail
Heating System		Digital Control Pre & Back Heater
Media Feeding		Yes
Drying System		Yes
IR Drying System		Optional
Media Handling		Roll to roll handling
Take-up System		Optional: single/double driven automatic take-up
