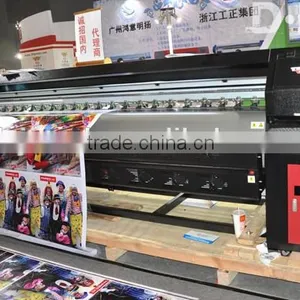

TAIMES Solvent Printer With 4piece or 8piece 512I Konica Head in Guangzhou

Name: TAIMES Solvent Printer With 4piece or 8piece 512I Konica Head in Guangzhou
Brand: TAIMES
SKU: 104552307
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Plate Type:

Flatbed Printer

Place of Origin:

Guangdong, China

Deju Digital Technology (Guangzhou) Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Huangpu

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Flatbed Printer

Place of Origin Guangdong, China

Brand Name TAIMES

Model Number T-5

Usage Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Other

Automatic Grade Automatic

Voltage 220v(±10%)

Gross Power 2.8KW

Dimensions(L*W*H) 4.57 x 0.88 x 1.65(M)

Weight 420KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

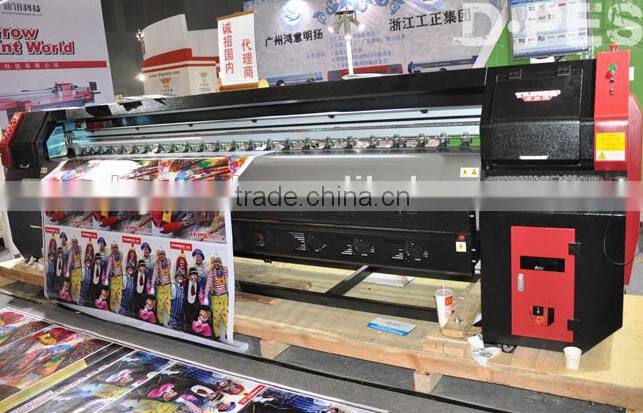

3.2m Larger format digital outdoor solvent printer 512 konica head

Product: Taimes solvent printer

Model: T7-KM512-14PL/42pl-8H

Printing Quality: 360dpi

Printing Speed: Draft Mode 180X720dpi 2pass @ 80sqm/h

Production Mode 240X720dpi 2pass @ 60sqm/h

Quality Mode 180X1080dpi 3pass @ 52sqm/h

Product Name		TAIMES T5 large format printer
Maximum Print Width		3200mm (10.5ft)
Printing Resolution		360DPI (Physical)			720DPI (Physical)
Product Model			T5-KM512 42PL-4H	T5-KM512 42PL-8H		T5-KM512 14PL-4H	T5-KM512 14PL-8H
Output (sqm/h)		Print Mode	Output Speed (sqm/h)		Print Mode	Output Speed (sqm/h)
		180x720dpi 2pass	42	83	360x360dpi 2pass	26	52
		240x720dpi 2pass	33	66	720x720dpi 2pass	22.8	45.6
		180x1080dpi 3pass	27	54	360x1080dpi 3pass	17	34
		240x1080dpi 3pass	21	42	720x1440dpi 4pass	11.3	22.6
		180x720dpi 4pass	21	42	720x1080dpi 6pass	7.7	15.4
		240x720dpi 4pass	17	33	720x1440dpi 8pass	5.7	11.4
Ink	Type	K42 Low Solvent Ink			K14 Eco Solvent Ink
	Color	4 Colors( C , M , Y , K ) / 6 Colors(C , M, Y, K, LC, LM)
	Capacity	5L Per Main Tank of Each Color
	Ink Supply System	Low Ink Detector, Auto or Manual Ink Supply System
Media	Width	3300mm (10.8ft)
Media	Type	Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
