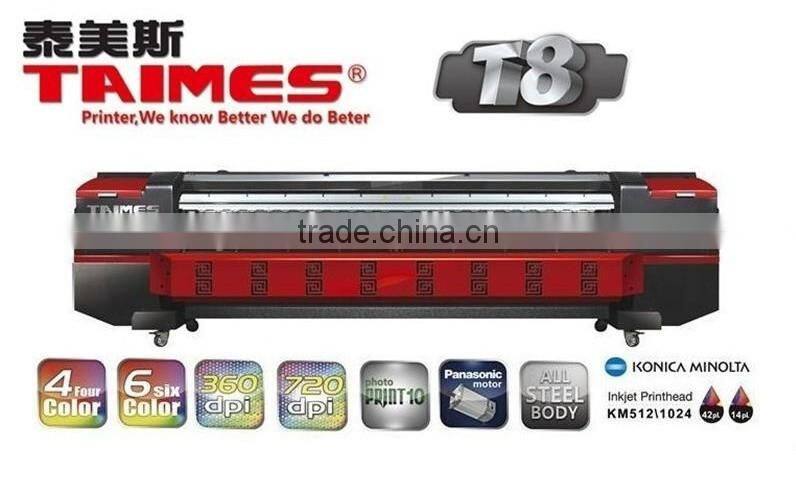

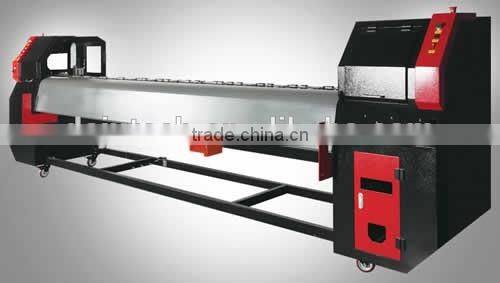

3.2m Taimes solvent printer with KM1024 print head
Product description:
The advantage of excellent machine frame work
Specially designed left and right steel side boards for T8S, thickness 8mm, weight 27kgs, bending resist rate is up to 235MPa. It enables machine body bear for maximum 2 tons weight, so as to effectively resist vibration when the carriage is moving fastly, make sure each ink dot drops accurately.

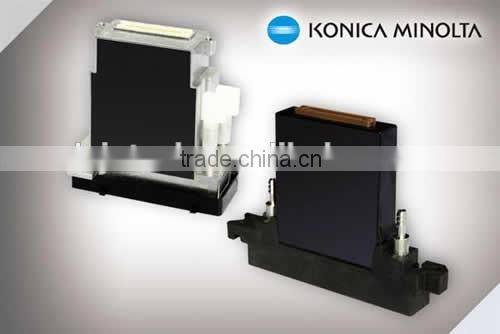

1.Konica Minolta KM1024-42PL/14PL(KM1024LNB/KM1024MNB) printheads, more options TAIMES T8S printer is applied with Konica Minolta KM1024 super wide printhead, 8 heads cover over 144mm printing width, completely promotes gorgeous colors and hurricane speed.

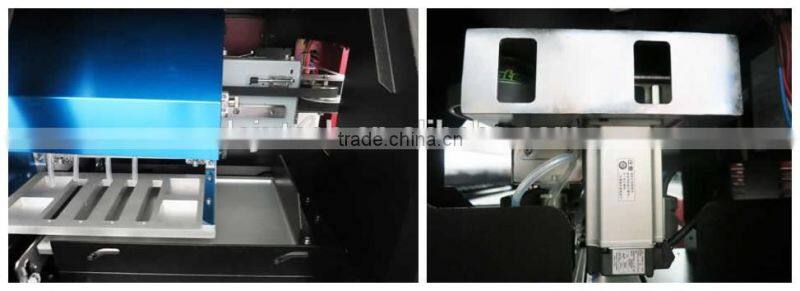

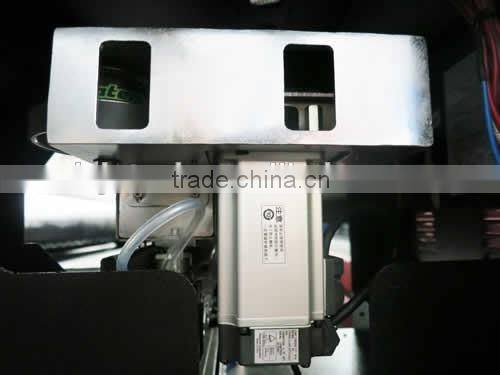

2.Imported 400W Panasonic AC servo motor system.

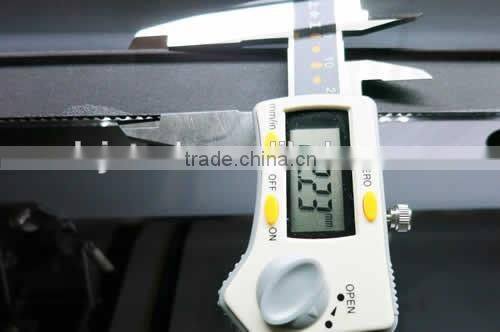

3. Ultra wide imported Italian megadyne belts with the width 22.23 mm.
4.2000W segmented infrared drying system.

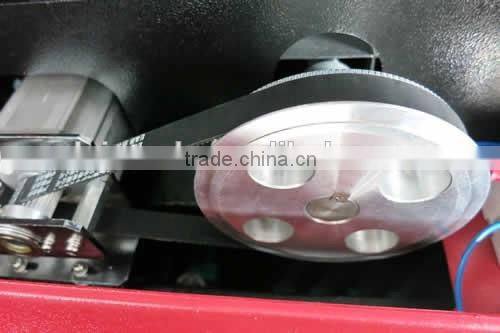

5.Aluminum step large synchronous wheel, much higher resolution and makes high quality.

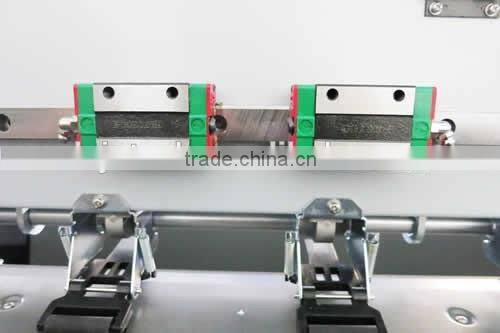

6.Taiwan double slider make the carriage move steady.

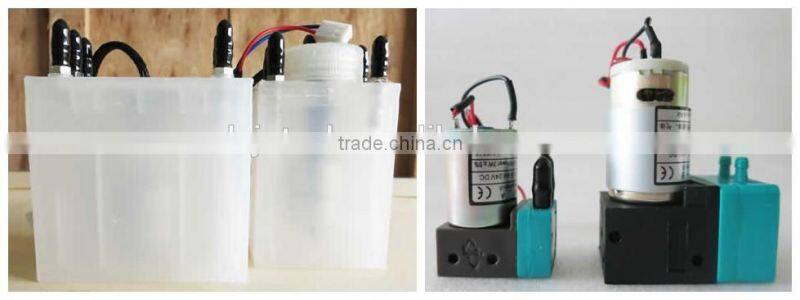

7.T8S series machine upgraded to a new large ink bottle and high-power ink pump: store more ink, printing more smoothly; More rapid refill ink, longer life.
8.The new T8S adopts sliding moisturizing shelf,effectively protects printheads, practical and convenient.
9.Professional take up system improve work efficiency .
10.Maintenance tips.
Specifications:
Product Name |
TAIMES T8 SOLVENT PRINTER |
||||
Maximum Print Width |
3200mm (10.5ft) |
||||
Printing Resolution |
360DPI (Physical) |
720DPI (Physical) |
|||
Product Model |
|
T8-KM1024/42PL-8H |
|
T8-KM1024/14PL-8H |
|
Output (sqm/h) |
Print Mode |
Output Speed (sqm/h) |
Print Mode |
Output Speed (sqm/h) |
|
180x720dpi 2pass |
160 |
720x720dpi 2pass |
91.2 |
||
360x1080dpi 3pass |
68 |
||||
240x720dpi 2pass |
120 |
720x1440dpi 4pass |
45.2 |
||
240x1080dpi 3pass |
80 |
720x1080dpi 6pass |
30.8 |
||
720x1440dpi 8pass |
22.8 |
||||
Ink |
Type |
TAIMES K42 Low Solvent Ink |
TAIMES K14 Eco Solvent Ink |
||
Color |
4 Colors( C , M , Y , K ) / 6 Colors(C , M, Y, K, LC, LM) |
||||
Capacity |
5L Per Main Tank of Each Color |
||||
Ink Supply System |
Low Ink Detector, Auto or Manual Ink Supply System |
||||
Media |
Width |
3300mm (10.8ft) |
|||
Type |
Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc |
||||
Auto Media Feeding System |
Equipped (Max. Media Weight 120kg ) |
||||
Auto Cleaning System |
Positive Pressure Cleaning Anti-clogged Flash Function & Capping System |
||||
Pre-heating & Drying System |
Equipped (Drying System Optional) |
||||
Clamp |
Equipped |
||||
Print Interface |
USB2.0 |
||||
Printhead Height |
2 to 4 mm Above Media Adjustable |
||||
RIP Software |
PhotoPRINT 10.5 or Maintop V5.30 |
||||
Input Power |
AC 220V ,50Hz ,4500W |
||||
Operation Environment |
Temperature: 20~28℃ Humidity: 40%~60% |
||||
Machine Dimension |
L4,850 x W1010 x H1,340 mm; Net Weight: 680Kgs (1,499lbs) |
||||
Package Dimension |
L5230 x W1040 x H1480mm; Gross Weight: 900Kgs (1,984lbs); Two units in one 20 feet container |
||||

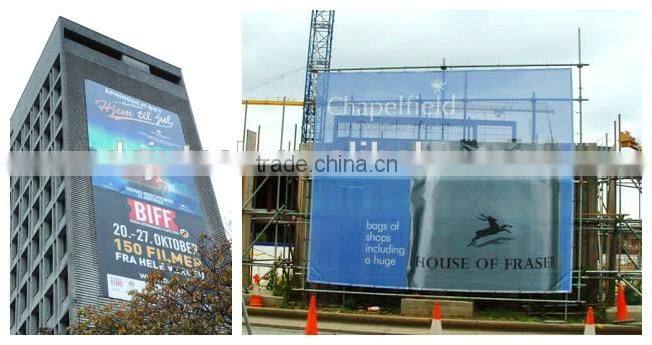

Applications:
Flex banner printing
Vinyl sticker printing
Mesh printing
