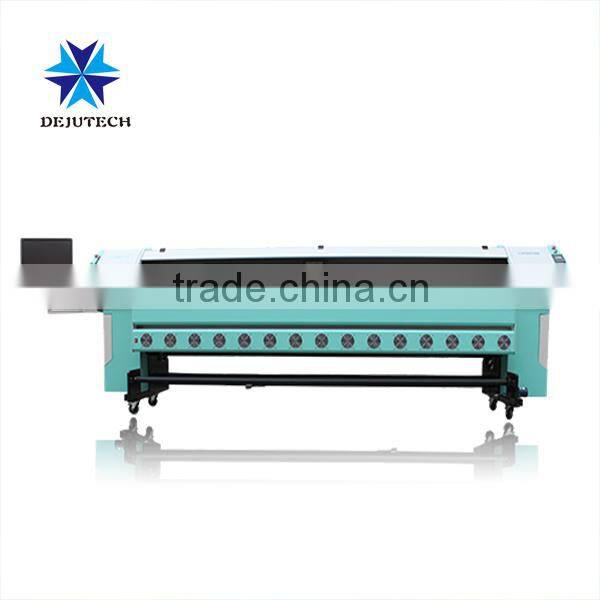

HDK3300 Series printer
1. Main feature of the printer

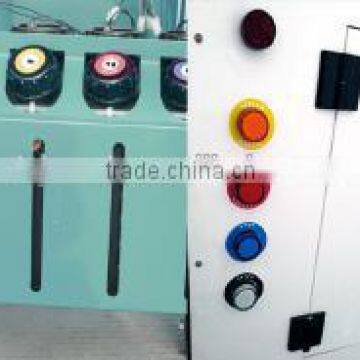

1.Ink detection alarm system.When anyone ink barrel color ink is about to run out, this system
can point out what color ink you need to add ink.
2.Adopt macromolecule polymer material under scientific process with stable function and long
life quality.

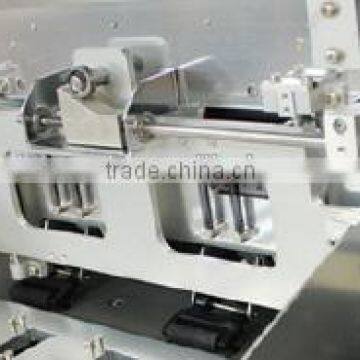

3.Print head height adjustment.
Easier operation printhead height adjustment system could be used according to all kinds of media
thickness and actual printing needs.

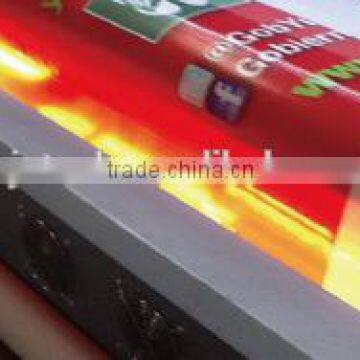

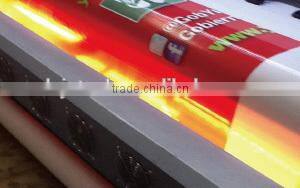

4.12-16 printheads design with intelligent infrared heater and fan drying system.
5.leg removable structure.
we can place 6 printers into one 40’ container = save the freight cost = save the incoming price.
6.when the carriage goes to the home position,the soleplate of keeping wet automatically rise
up to protech the printheads(option).
2.Technical specification
Model |
HDK3300K |
HDK3300M |
HDK3300X |
HDK3300P |
|||||
Print head |
KM512/42pl |
KM1024/42pl |
XAAP PROTON 382 |
Spectal polaris 512015/35pl |
|||||
Max resolution |
1440dpi |
1440dpi |
720dpi |
1440dpi |
|||||
Number of print head |
8/12/16 |
4/8 |
8/12 |
4/8 |
|||||
Media printing width |
3.2m(126 inch) |
||||||||
Heating system |

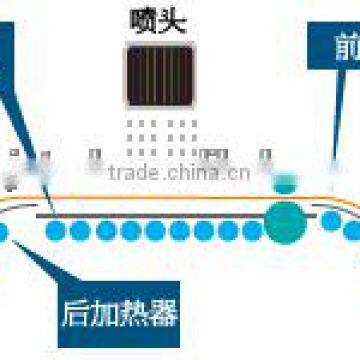

Pres-heater,printing bed heater, infrared heating,fan drying heating-option) |
||||||||
Air draft |
Positive pressure cleaning,anti-clogged flash function) |
||||||||
Printing speed |
Normal |
155sqm/hr(4*4H) |
160sqm/hr(2*4H) |
180sqm/h (3*4H) |
185sqm/hr(2*4H) |
||||
|
good quality |
115qm/hr(4*4H) |
120qm/hr(2*4H) |
90qm/hr (3*4H) |
110qm/hr (2*4H) |
||||
|
High quality |
78qm/hr(4*4H) |
80qm/hr(2*4H) |
60qm/hr (3*4H) |
80qm/hr (2*4H) |
||||
Ink |
Solvent ink-C,M,Y,K. |
||||||||
Ink capacity |
2.5L drums, automatic ink control, non-stop and ink |
||||||||
Media |
Flex-banner,fiberglass mash, car sticker, soft film |
||||||||
Control system |
Windows 2000 workstation/windows XP/Vista/window7 32bits,RAM≥6G |
||||||||
|
Feeding and Take-up |
Automatic media feeding (fixed)&Take-up system(optional) |
||||||||
RIP software |
Ultraprint/photo print |
||||||||
Operation environment |
Temperature |
15℃-30℃ is more effectively control static and guarantee printed quality |
|||||||
|
Humidity |
50%-80%.To effectively control static and guarantee printed quality |
|||||||
Power supply |
AC,50HZ/60HZ ;220V(±10%)>15A |
||||||||
Image format |
Tiff, JPEG,EPS |
||||||||
Dimension(L*W*H) |
4420*1750*1420mm |
||||||||
|
Package dimensions (L*W*H) |
4940*760*1030mm |
||||||||
|
Net weight &gross weight |
650kg&850kg |
||||||||
Safety certificate |
CE(certification) |
||||||||
3.Application
It can be used for flex banner, fiberglass mesh,car sticker,soft film and others materials.
4.Some printing samples
flex banner
fiberglass mesh
car sticker
soft film
Thank you for your reading.
If any doubt of the printer,welcome to contact me.
Name: Sun Wang
Skype:dejutech02
WhatsApp:0086-18819364200
website:http://dejutech.en.china.cn/
