Help CenterWhole Sale Price KM512 42pl/14pl 6pl
Related Products
Solvent printhead konica 512 14pl print head
Technology |
On-Demand Piezo Electric |
Native Resolution |
360 dpi |
Cal. Droplet Size |
14 pico litre |
Max. Drops in Greyscale |
3 drops |
Tot. Amount of Nozzles: |
512 (256 nozzles per line) |
Nozzle Spacing |
70.5 microns |
Print Width |
36.1 mm |
Firing Frequency |
12.8 kHz |
Ink Compatibility |
Oil Based, Solvent and UV Inks |
Compatibility printer brand |
Compatibility printer model |
Agfa |
Anapurna M /Anapurna M4f / Anapurna Mv / Anapurna Mw |
Anhui Liyu |
Apollo PTP-KL / Maxima PZ-KM / Maxima PZ3204-KM / Maxima PZ3206-KM / Maxima PZ3208-KM |
JHF |
Vista Vista3306 / H8 3304FN / H8 3306FNS/E3000/E6000 |
Seiko ColorPainter |
Seiko ColorPainter 64S / ColorPainter 100S |
Rodin |
K4320-A / K4320-B / K6164-B / K8320-B / k6320-A |
Myjet |
LB3208KM42 / LE3208KM42 / WB3208KM42, / WC3208KM14 |
Others |
Allwin C8,DGI SaturnJet ST-1806 / OR-1806, Flora HJ 3200Turbo / LJ 320P, HP DesignJet 9000s / DesignJet 10000s, Oce CS6060 / CS6100,Sun Neo Da Vinci, Skynet PC-series / HS-series |

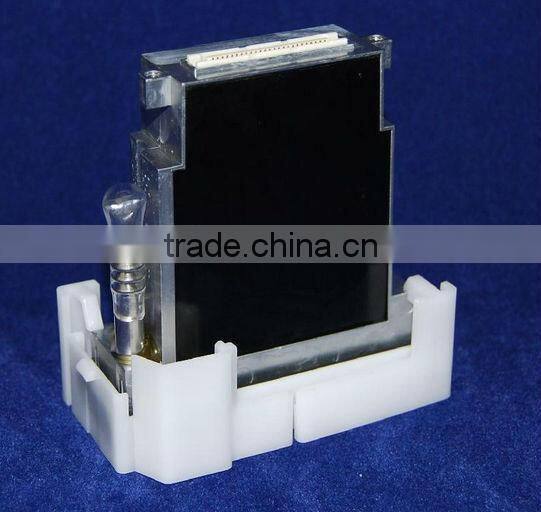

The Konica Minolta KM512 MN print head is a robust, shear mode, piezo on-demand print head that is usable in both binary and 4 level greyscale mode,
providing variable drop size and higher print quality without the use of additional print heads.
The Konica Minolta KM512 MN print head has 512 nozzles with a droplet size of 14 pico litre
and a native resolution of 360 dpi. It is compatible with oil based, solvent and UV inks.
This print head is also known as the Konica Minolta KM512 MNX.
This is Konica original print head and it includes the Head ID and the necessary waveform information.
It carries a product warranty.
name |
KM512L |
KM512M |
KM512S |
Driving pattern |
Piezoelectric on-demand ink |
||
The nozzle resolution |
180dpi×2 line= 360dpi |
||
Number of nozzle |
256×2 line= 512 |
||
Nozzle spacing |
70.5μm =(141μm 2 line) |
||
drops |
42pl |
14pl |
4pl |
Emission frequency |
7.6kHz |
12.8kHz |
23.0kHz |
Printing width |
36.1mm |
||
size |
67mmW×40mmD×72mmH |
||
Solvent ink |
Yes |
Yes |
Yes |
UV ink |
Yes |
Yes |
Yes |
Oil ink |
Yes |
Yes |
Yes |
Gray-scale drips |
- |
3 drops |
7 drops |
With the heater(H) |
Yes |
Yes |
Yes |
Without the heater (N) |
Yes |
Yes |
no |
