Introduction of bar peeling machine
Introduction of composition
There are two main parts --main machine and auxiliary machine
1.Main machine consists of the bed,main bearings,ail/oil lubrication system,front-clamping pinch feeding and rear-clamping extracting,front-guide and middle-rear guide system,main driving system etc.
2.Air/oil lubrication system is specially designed to solve the lubrication of main shaft
bearings with highspeed rotation.It’s composed of pump,oil and air distribution block
and air processing components.
3.Cutting liquid circulation cooling system consist of recycle water pump,pipeline,
nozzle etc.
4.High pressure water pump takes the cutting liquid cooled from reservoir through
pipeline transporting the near to the nozzle of cutter head,until spraying on the
tools and scraps.Then take away most the cutting heat and enter into chip conveyor
mouth of the bottom of cutter head,through the pipeline reflow reservoir for cooling.
5.Chip conveyor is provided by our supplier.The scraps through chip conveyor
mouth to be taken to the chain plate and driving belt move with the scraps.
Finally,the scraps are centralized collection.
6.Hydraulic system consists of pump set of motor,all kinds of control valves,
hydraulic oil tank,hydraulic pipeline etc.Though controlling the cylinders of front-clamping pinch feeding and rearclamping extracting to realize clamping and
loosening for the bar.
7.Electrical system includes power supply system and control system,by 1
power distribution cabinet and 1 button station integrated operation,implement
pinch before and after the main transmission system,feeding system,cooling
system,hydraulic system,the electrical control of chip conveyor and
auxiliary machine.
Product Application Presentation
Main parameters for your reference
MODEL |
WXC130S |
|
RAW |
Diameter Range(mm) |
Φ45~Φ130 |
Raw Material Length(mm) |
≥2800 |
|
Tensile Strength(Mpa) |
≤1100 |
|
Surface Hardness |
≤HB320 |
|
Curvature(mm/m) |
≤1.50 |
|
Diameter Tolerance |
According to GB 702-2004 second group |
|
Roundness(mm) |
≤50% of the diameter tolerance |
|
Surface Roughness(Ra) |
≤25-50μm |
|
FINISHED |
Diameter Range |
Φ44~Φ129 |
Unilateral Turning Depth (mm) |
1~2.5 |
|
Diameter Tolerance |
≤h9 (standard tolerance grade) |
|
Surface Roughness(Ra) |
≤12.5μm |
|
Curvature(mm/m) |
≤1.5 |
|
Roundness(mm) |
≤0.03 |
|
Feeding Cutting Speed(m/min) |
0.8-1.5 (for continuous chips and high strength and hardness should reduce the cutting speed) |
|
Cutter Head Rotational Speed(rpm) |
240-670 (Six poles) 360-1000 (Four poles) |
|
Main Machine Motor Power(KW) |
110 |
|
Auxiliary Machine Motor Power(KW) |
11(feeding part) |
|
|
Main Machine Outline Dimensions (Length*Width*Height) m |
5.3 X 3.5 X 3 |
|
|
Full Set Machine Outline Dimensions (Including auxiliary) (Length*Width*Height) m |
18M X 3.5M X 3M |
|
Main Machine Weight |
29(20.5t) |
|
Total Installed Capacity(KW) |
130 |
|
|
Compressed Air Source (users prepare by themselves) |
0.5~0.8MPa,1.8m3/min,more than 0.8 m3 gasholder, two-stage oil-water separator and compressed air freezing drier |
|
Company Information
Yantai Haige International Trading Co.,Ltd., is a joint-stock enterprise engaged in exporting niche mechanical equipments produced in China to the markets abroad, which is located in Laishan district, Yantai City, Shandong Province, China.
The company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd whose area is more than 2000m². There are one hundred and forty staffs working in the factory. The factory is mainly engaged in producing and selling peeling machines(centerless lathes), straightening machines, polishing machines(abrasive belt machines), auxiliary machines and other processing and finishing equipment for steel(bright steel) for more than ten years.
Overseas service is available!
A. Warranty period: 1 year,except for fast-wearing parts
B. Reply your enquiry in 24 working hours
C.Customized design is available. OEM& ODM are welcomed.
D. If necessary,we can dispatch our well-trained and professional engineers to our customers' factory to help them install and debug the equipment.
E.Special discount can be provided to our distributor.
Certification

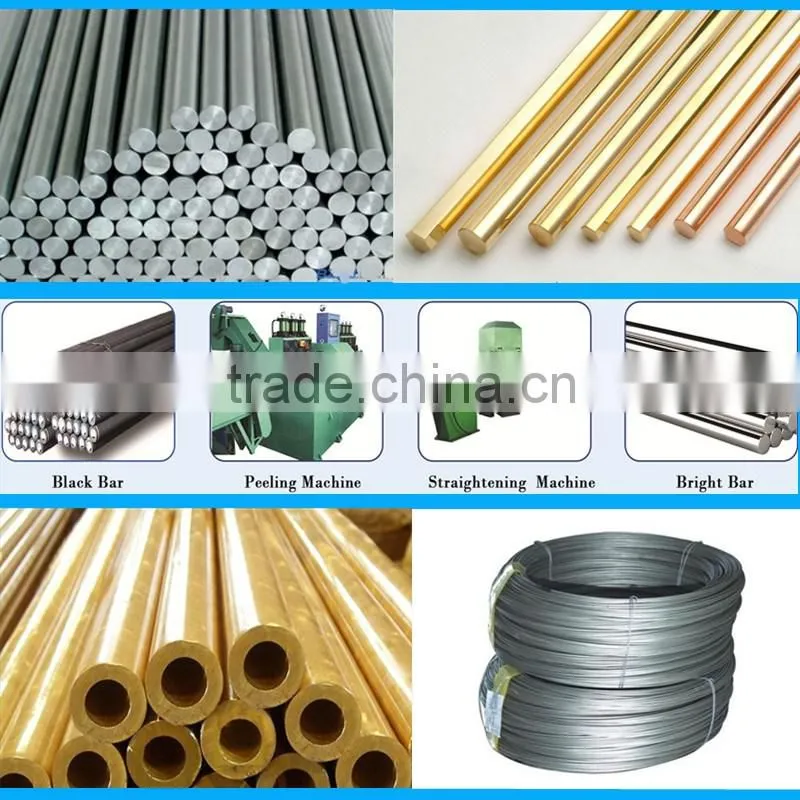

Process Materials
1.ferrous material:stainless steel,bearing steel,spring steel,tool steel,structural steel,
free cutting steel,valve steel,pinion/gear steel.etc
2.nonferrous metal:copper alloy,titanium alloy,magnesium alloy,titanium alloy,
magnesium alloy,aluminum alloy.etc
Packaging &shipping
Inside taking multi protection measures:
The first layer
wrapping with foam film and stretch film for the special components, in order to avoid moisture.
Second layer
inside of plywood box, adopting small square plywood block and strapping belt to fix.
Third layer
the machine itself has screw fixing holes, so it can be tightly fixed on the bottom of the plywood box through screw and nut.
Fourth layer
in a container, by compact layout, reducing the gap between boxes to avoid shaking. At the same time, reinforcing between the bottom of the container and plywood boxes once again, furthermore using hanging steel wire protection.
Outside wooden case with export fumigation
Other products
Bar Straightening Machine & Abrasive belt sander polishing machine
Contact
Any questions,please feel free to contact me.I will give you soon reply.
