Main parameters for your reference
MODEL |
WXC130S |
|
RAW |
Diameter Range(mm) |
Φ45~Φ130 |
Raw Material Length(mm) |
≥2800 |
|
Tensile Strength(Mpa) |
≤1100 |
|
Surface Hardness |
≤HB320 |
|
Curvature(mm/m) |
≤1.50 |
|
Diameter Tolerance |
According to GB 702-2004 second group |
|
Roundness(mm) |
≤50% of the diameter tolerance |
|
Surface Roughness(Ra) |
≤25-50μm |
|
FINISHED |
Diameter Range |
Φ44~Φ129 |
Unilateral Turning Depth (mm) |
1~2.5 |
|
Diameter Tolerance |
≤IT9 (standard tolerance grade) |
|
Surface Roughness(Ra) |
≤12.5μm |
|
Curvature(mm/m) |
≤1.5 |
|
Roundness(mm) |
≤0.03 |
|
Feeding Cutting Speed(m/min) |
0.8-1.5 (for continuous chips and high strength and hardness should reduce the cutting speed) |
|
Cutter Head Rotational Speed(rpm) |
240-670 (Six poles) 360-1000 (Four poles) |
|
Main Machine Motor Power(KW) |
110 |
|
Auxiliary Machine Motor Power(KW) |
11(feeding part) |
|
|
Main Machine Outline Dimensions (Length*Width*Height) m |
5.3 X 3.5 X 3 |
|
|
Full Set Machine Outline Dimensions (Including auxiliary) (Length*Width*Height) m |
18M X 3.5M X 3M |
|
Main Machine Weight |
20.5 (29) |
|
Total Installed Capacity(KW) |
130 |
|
|
Compressed Air Source (users prepare by themselves) |
0.5~0.8MPa,1.8m3/min,more than 0.8 m3 gasholder, two-stage oil-water separator and compressed air freezing drier |
|
Yantai Haige Machine Tools Co.,Ltd
----Professional Manufacturer of Centerless Lathe &Straightening Machine
Yantai Haige Machine Tools Co.,Ltd. was built in 1997,which is mainly producing series WXC Centerless Lathe(Bar Peeling Machine),Series JY Bar Straightening Machine,Abrasive Belt Grinder (Belt Sander Polishing
Machine) and auxiliary machine,etc.
We regard Customer’s Satisfaction as our unremitting pursuit.
Based on more than ten years manufacturer and design experience,our machine have been exported to Russia,
Vietnam,India,Korea and other countries and regions.
|
Haige Machine Tools Co.,Ltd. Unique After-sale Service 1.Our engineers can offer overseas service,including guiding installation,commissioning,etc. 2.Free quality guarantee period for 1 year except for vulnerable parts 3.Free provide long-term technical support 4.Free train buyer’s operator in seller’s factory |

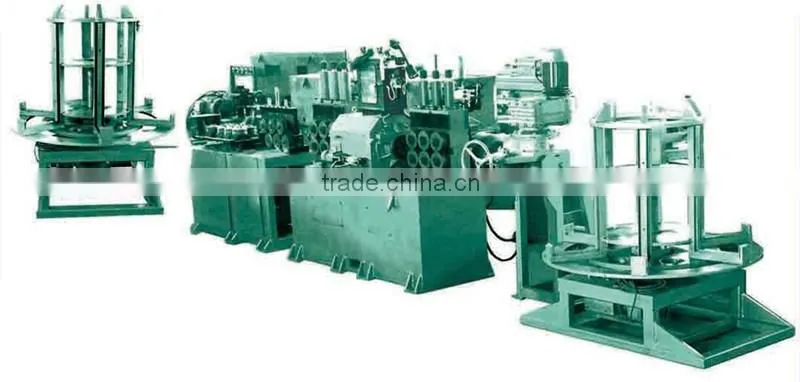

Series WXC Centerless Lathe includes Semi-automatic hydraulic and CNC type.
The machine’s features are as follows:
1.When processing over-length bar,centerless lathe has incomparable advantages.
2.Centerless Lathe is not only processing Bar,also Wire Rod.
3.Processing speed 1~12m/min,the working efficiency of centerless lathe is dozens of times of the ordinary lathe.
4.High Precision,after peeling,diameter tolerance can reach ≤IT9,surface roughness(Ra)≤6.3μm.
During processing,the bar itself doesn’t rotate.The cutter head drives the tools rotating at high speed to peel the
surface of the bar.After peeling,the bar keeps walking straight ahead.
Main Technical Parameters for your reference

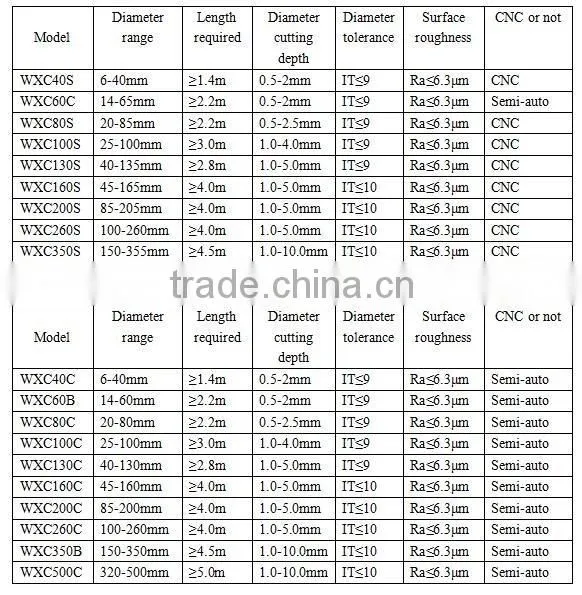

List of Main Technical Parameters of Centerless Lathe

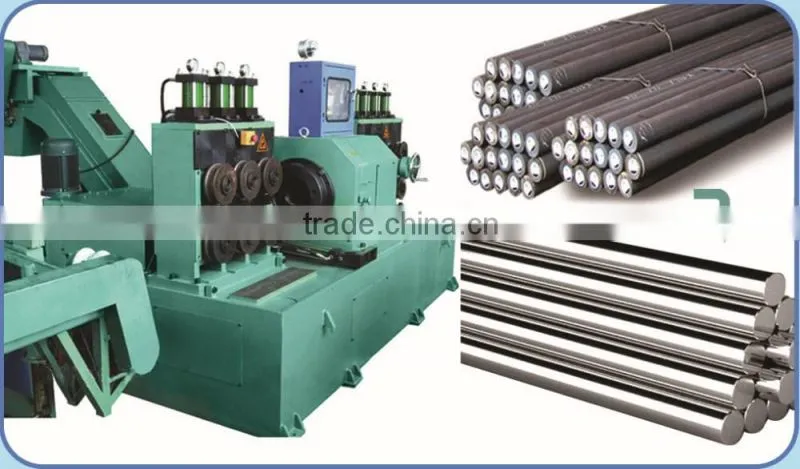

Main Parts of Series WXC Bar Peeling Machine
1.Main machine consists of the bed,main bearings,ail/oil lubrication system,
front-clamping pinch feeding and rear-clamping extracting,front-guide and
middle-rear guide system,main driving system etc.
2.Air/oil lubrication system is specially designed to solve the lubrication of main shaft
bearings with highspeed rotation.It’s composed of pump,oil and air distribution block
and air processing components.
3.Cutting liquid circulation cooling system consist of recycle water pump,pipeline,
nozzle etc.
4.High pressure water pump takes the cutting liquid cooled from reservoir through
pipeline transporting the near to the nozzle of cutter head,until spraying on the
tools and scraps.Then take away most the cutting heat and enter into chip conveyor
mouth of the bottom of cutter head,through the pipeline reflow reservoir for cooling.
5.Chip conveyor is provided by our supplier.The scraps through chip conveyor mouth
to be taken to the chain plate and driving belt move with the scraps.Finally,the scraps
are centralized collection.
6.Hydraulic system consists of pump set of motor,all kinds of control valves,hydraulic
oil tank,hydraulic pipeline etc.Though controlling the cylinders of front-clamping pinch
feeding and rear clamping extracting to realize clamping and loosening for the bar.
7.Electrical system includes power supply system and control system,by 1 power distribution
cabinet and 1 button station integrated operation,implement pinch before and after the main
transmission system,feeding system,cooling system,hydraulic system,the electrical control
of chip conveyor and auxiliary machine.
