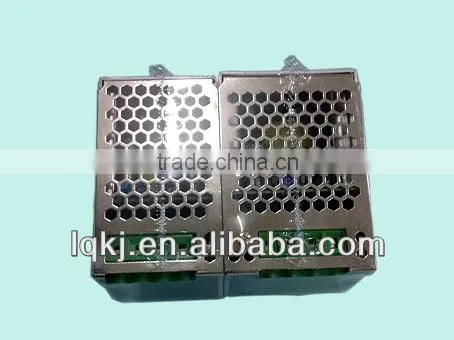

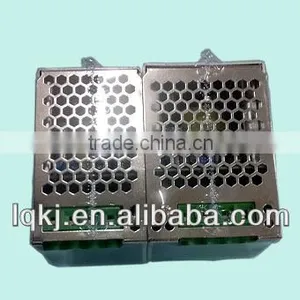

Help Center350W 12V Switching Power Supply
Related Products
Specifications
high efficiency, low temperaturepower supply factory price
Specialized in power supply
2 years warranty
CE certificat
Model(single set ) |
LQ-S-350-12 |
DC output voltage |
12V |
DC current |
29A |
wave and noise |
60mVp-p |
load stability |
±0.3% |
efficiency |
83% |
DC output power |
350W |
adjustable range for DC voltage |
± 10% |

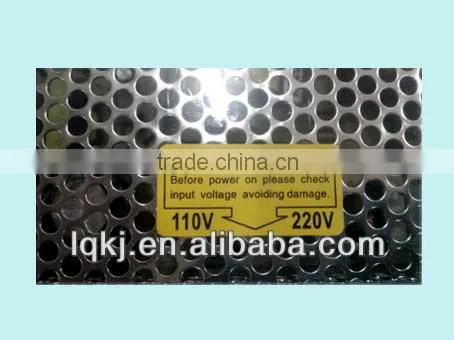

AC input voltage |
85~132VAC/170~264VAC with switch select |
AC input current |
6.5A/115V;4A/230V |
Overload proctecton |
105%~130% hiccup mode, auto-recovery |
Overvoltage proctecton |
105%~130.% |
setup rise hold up time |
200ms,100ms,20ms |
withstand voltage |
ACI/P-O/P:1.5KV;ACI/P-FG:1.5KV;ACO/P-FG:0.5KV |
isotation rosestance |
I/P-O/P:1.5KV;I/P-FG:1.5KV;O/P-FG:500VDC/100MΩ |
working temperantion and humidity |
-10~+60°C |
safety standards |
GB4943,UL60950,EN60950 |
EMC standards |
GB9254,EN55022 ClassA |
weight |
1.25KG |
size |
215*115*50mm |
Universal AC input / Full range
Protections:Short Circuit / Overload / Over Voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
2 years warranty
Application:
1.Digital and electronic products;
2.LCD, LED, CCTV camera;
3.Communications and security products;
4.Electrical equipment, Instrumentation .
Protection:
1.With short circuit, over temperature and over power protection.
2.The power supply will auto recovered when faults remove.
3.The power supply shall not damage by short the output to ground.
1. Please send a message to us if any problem you have.
2. We have 100% satisfactory guarantee, if you are not satisfied with your purchase for any reason, please DO contact us and we will help to resolve your problem.
Please tell us your requirements, then, there will be no disappointment, no regret.
