Specifications
CE certified saving energy electroplating machine1.Warranty : 1year
2.CE,ISO9001
3.Min order : 1set
CE certified saving energy electroplating machine
Welcome,my friend! Glad to introduce CE certified saving energy electroplating machine and our companyLongqiang to you. If you have any questions, please don't hesitate to ask me.
The technical parameter of CE certified saving energy electroplating machine
Model: LQ-6-3000 | ||
Type |
| Prepare Note |
Modular | IGBT( Insulated Gate Bipolar Transistor) |
|
AC input power | 220V, 3 phase 380V, 3 phase 415V, 3phase 460V, 3phase |
|
DC current(A) | 0~3000A(adjustable) |
|
Constant-current precision (%) | 1% |
|
DC voltage(V) | 0~6V(adjustable) |
|
Voltage accuracy (%) | 0.5% | Digital voltmeter |
Cooled way | Air/water cooling way |
|
Protection | ü Overheating ü Input over/low voltage ü Short circuit ü Phase lack |
|
Overload protection (%) | 110% |
|
Environment temperature | 20°C~40°C |
|
Interface type | Digital/simulation signal (0-10V,4-20mA) | Regular without interface |
Stabilized voltage precision | 1% |
|
Overload capacity | 110%(rated value) |
|
Environment humidity | <70% |
|
Overall efficiency | ≥90% |
|
Power factor | 0.85 |
|

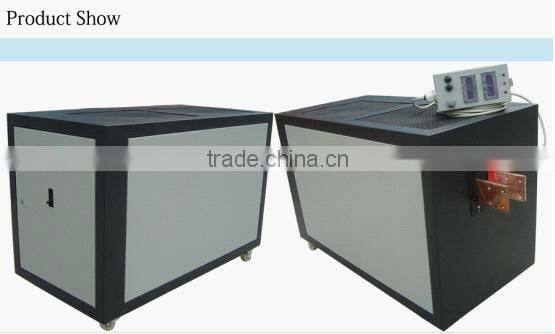

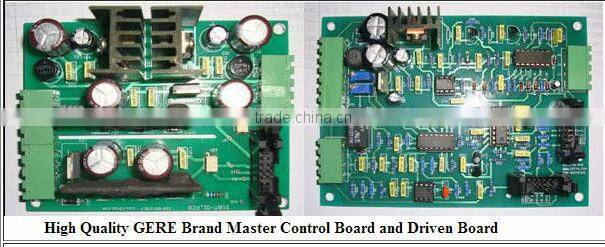

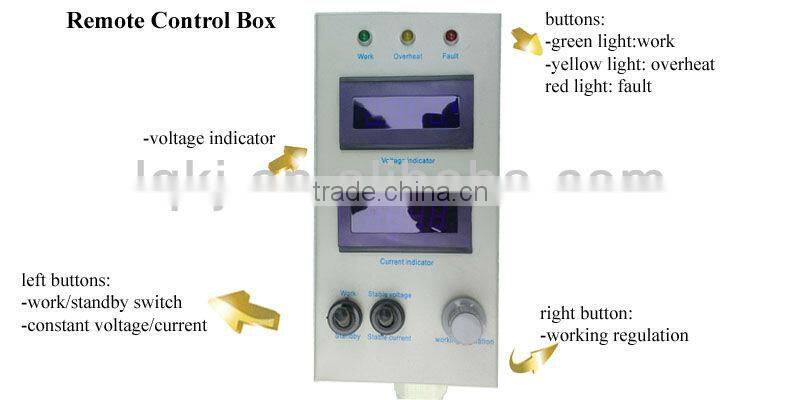

The detail of CE certified saving energy electroplating machine

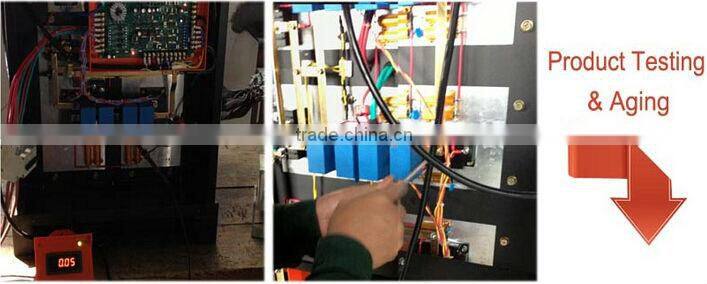

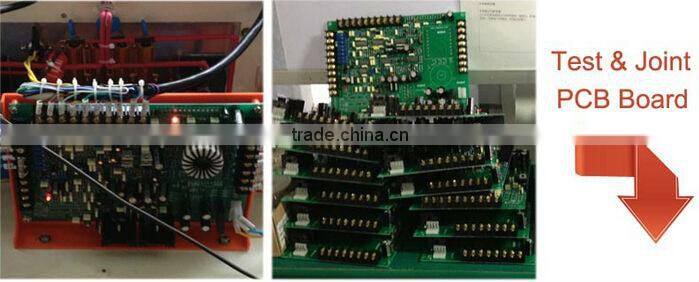

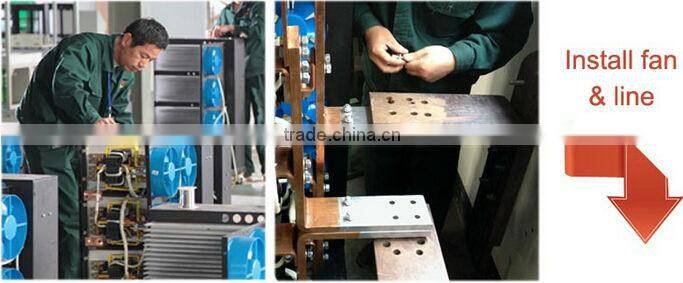

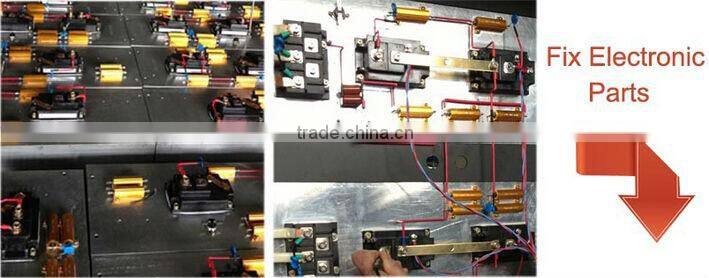

produce prcess

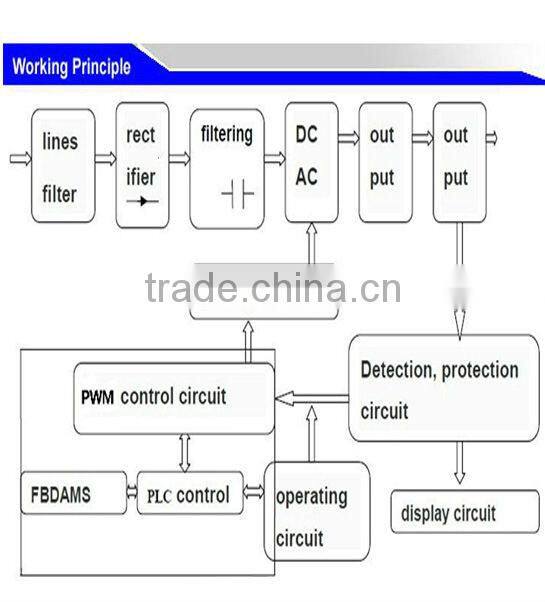

The working principle for CE certified saving energy electroplating machine
These rectifiers are widely used in many surface treating fields and lots of industries in need of direct current power supply such as pharmaceuticals ,fine chemicals and DC motor testing .Among them ,the high-power high frequency switching electroplating power supply developed independently by our company is an important new product .The products have passed the certification of related technical department,and thus have reliable quality and stable performance.
Application of CE certified saving energy electroplating machine
Plating:Chrome, Zinc, Nickel, Copper, Gold, Silver
Application of more products
- Plating: Chrome, Zinc, Nickel, Copper, Gold, Silver
- Electrolysis: Copper, Zinc, Tin, Lead
- Aluminum foil, copper foil production
- Electrochemical machining
- Anodizing: anodizing, hard anodizing
- Waste water treatment

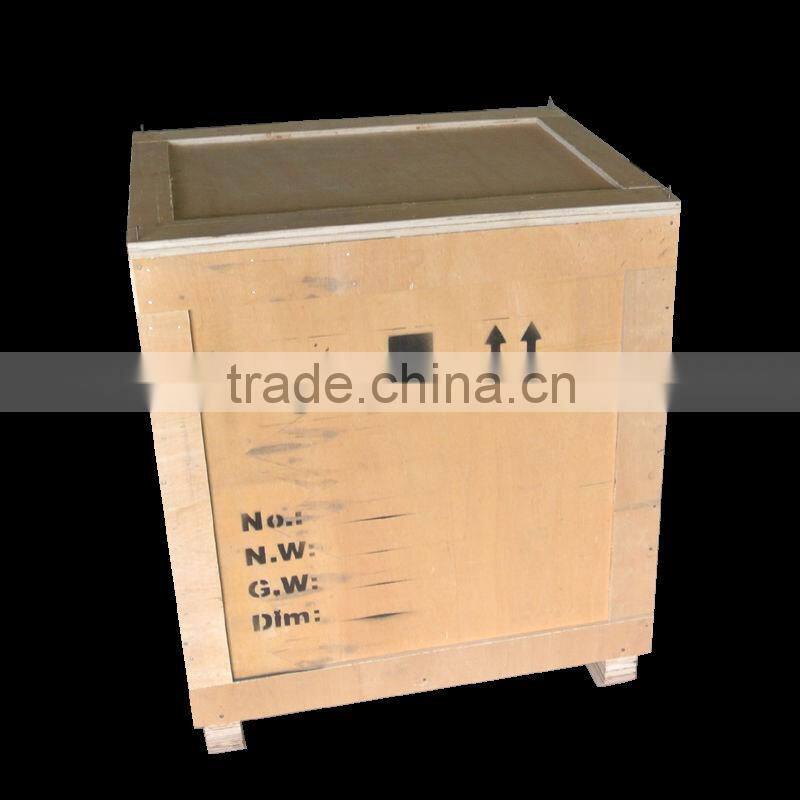

Package
Quality promise for CE certified saving energy electroplating machine
Our factory show
On exhibition
Questions:
Q 1. What’s the payment terms?
A. We accept T/T, Paypal , L/C and so on.
Q 2. How’s the delivery time?
A. It according to the different machine model , it is about 5-15day.
Q 3. We want to know about production capacity.
A. Our average capacity is 500 pcs per month.
Q 4. May I know the standard of package?
A. Plywood package. And if customer has special demand , we can package the goods according to customers demand.
Q 5. What kind of material of transformer?
A. It depends on your requirements.
Q 6. Would you accept to use our logo?
A. It is absolutely no problem to do OEM.
Q7.What certification does your goods have passed ?
CE, ISO9001.and patent technology
Q8, How long is your warranty time?
Normally 1 year warranty time, beyond 1 year ,we also arrange the technician to offer you the technical service .
More details,please feel free contact us
Chengdu Longqiang Technology Co,ltd.
Skype: peterpan89
Tele: 0086-028-62893362 Fax: 0086-028-83530291
118 Beixin St., Xindu Town, Xindu Dist. Chengdu Sichuan
