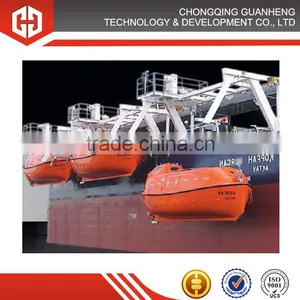

Marine Offshore Rig Davit System
Specifications
Davit system:1.We can supply various davit cranes
2.Awarded by CCS.ABS.LRS.BV.GL.DNV.NK. etc
3.ISO 9001:2000 system
Davit system:

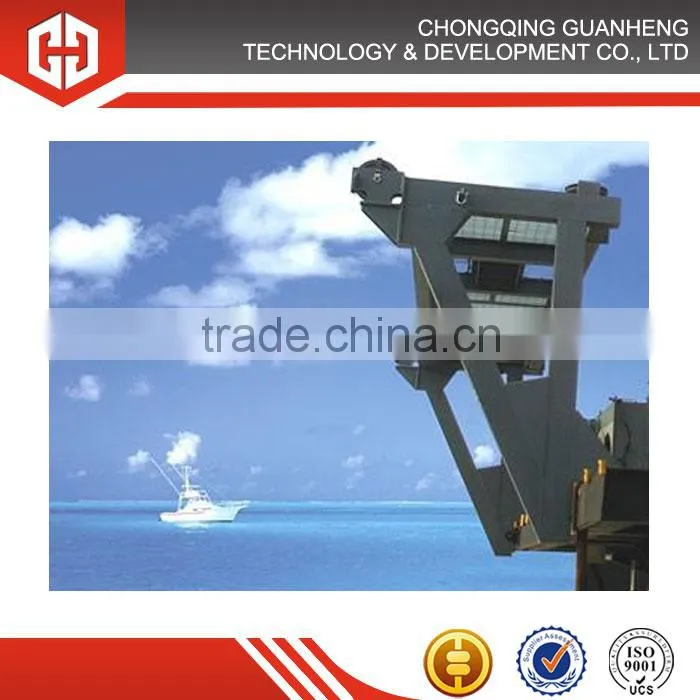

Marine Offshore Rig davit system
GHMDDP series:
Freestanding deck-mounted davit consisting of two davit arms, an intermediate frame, a winch and an operating platform. The system is suitable for safe and effi cient launching and recovery of a fully manned lifeboat with relevant equipment. In case of a power failure or malfunctioning of the electric system, hoisting can also be done manually by using the winch’s crank handle.
Design features:
Twin hooks for Lifeboats
Single hooks for Rescue boats
Minimum of maintenance
Other sizes/dimensions available on request
Basic specification for enquiry:
Required lifting capacity (or lifeboat capacity)
Power pack: hydraulic, electric, or any other
Power source
Required Classification societies
Platform Davit System Specifications:
Product No. |
S.W.L |
Main Dimensions(mm) |
Suitable Boat |
|||
(KN) |
A |
B |
H1 |
H2 |
||
GHMDDP-01 |
65 |
1400 |
2870 |
2200 |
3600 |
5m-7.5m |
GHMDDP-02 |
85 |
1730 |
3550 |
2375 |
3650 |
7.5m-8m |
GHMDDP-03 |
105 |
1750 |
3600 |
2400 |
3900 |
8.5m |
|
GHMDDP-04 |
138 |
2130 |
4250 |
2700 |
4050 |
9m-10m |
Platform Davit System
![]() | ||||||
| ||||||
![]() | ||||||
![]() | ||||||
![]() | ||||||
![]() | ||||||
![]() | ||||||
![]() | ||||||
![]() | ||||||
