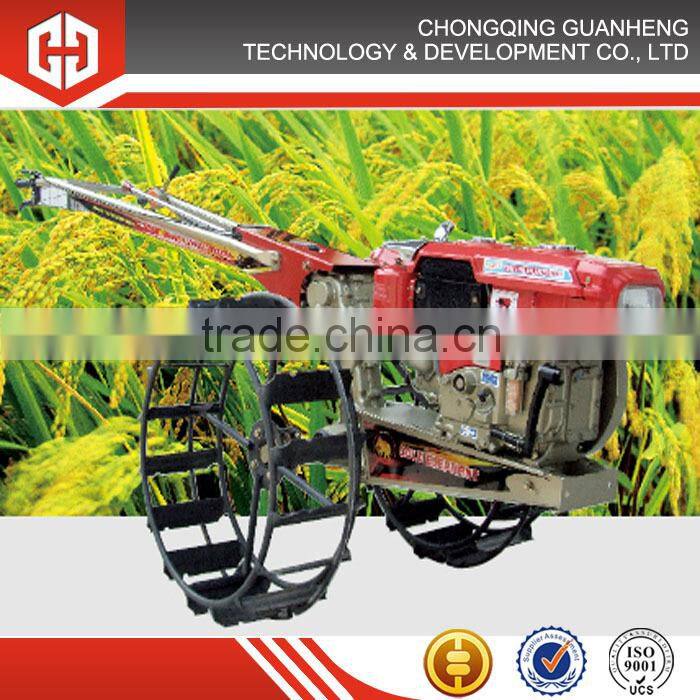

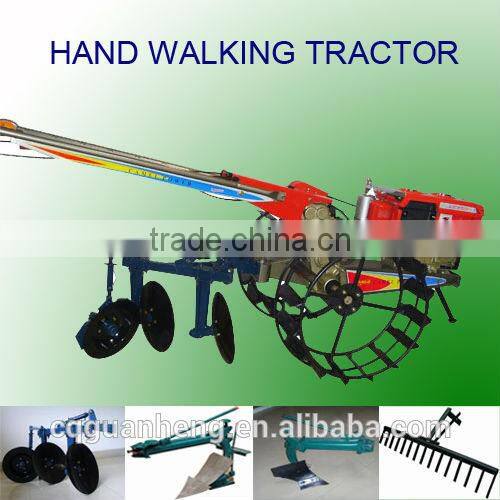

Farm hand tractor mini walking tractor small hand tractor
China Chongqing hand tractor manufacturer
Share the same accessories with KUBOTA , JAPAN.
Basic design features:
1.Rompact structure , nice appearance
2.Reliable performance in shift,clutch,brake and steering system

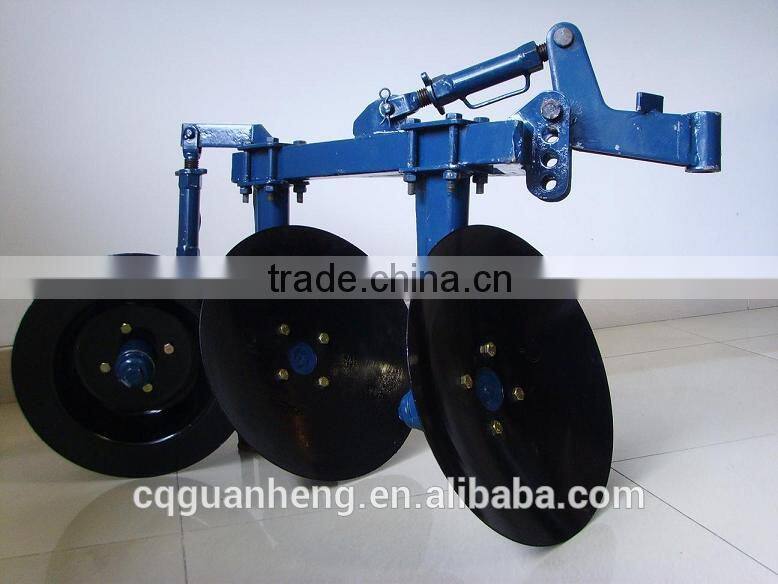

3.The tractor is widely used for ploughing,raking,spraying,irrigation and drainage,planting,reaping,ditching and transportation etc.
hand tractor Specifications:
Engine |
Type |
diesel engine |
power |
7-14 hp |
|
Clutch type |
Dry type multi disc clutch |
|
Steering system |
Compress steering type |
|
Brake system |
Small-scale braking |
|
Transmission system |
Fixed sliding positioning |
|
Transmission ratio |
Low gear 1st gear |
44:1 |
Mid gear 2nd gear |
23:1 |
|
High gear 3rd gear |
8:1 |
|
Backward gear |
56:1 |
|
|
Tractor speed (Engine speed: 2400/rpm rubber size :600-12 , length:600mm) |
Low gear 1st gear |
4.86km/h |
Mid gear 2nd gear |
9.26km/h |
|
High gear 3rd gear |
26.5km/h |
|
Backward gear |
3.8km/h |
|
diameter of towing pin |
|
26mm |
V-belt |
length |
1905 |
quantity |
2 |
|
diameter of engine pulley |
140mm |
|
diameter of transmission pulley |
180mm |
|
axle |
type |
Hexagonal axle |
size |
44.5mm |
|
rubber tire |
type |
Special tire for tractor |
size |
600-12 |
|
pressure |
46pound/sq.inh |
|
lubricant in transmission |
type |
SSAE No.90 |
capacity |
5.5-6L |
|
Tractor weight( excluding the engine) |
185kg (600-12 rubber tire) 210Kg ( iron tire) |
|
REAMRK:
1) Tractor body and diesel engine can be sold seprately.
2) Tractor will be shipped to you in carton and bulk, it is SKD condtion.
3) A 40' container can hold 80-85 sets walking tractor without engine.

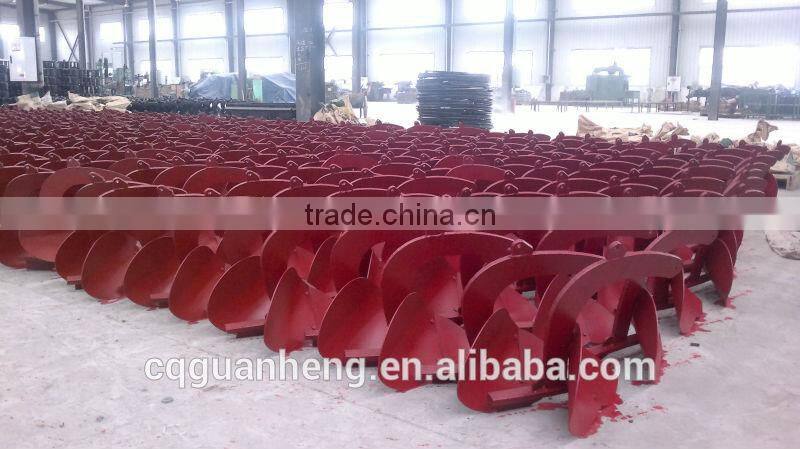

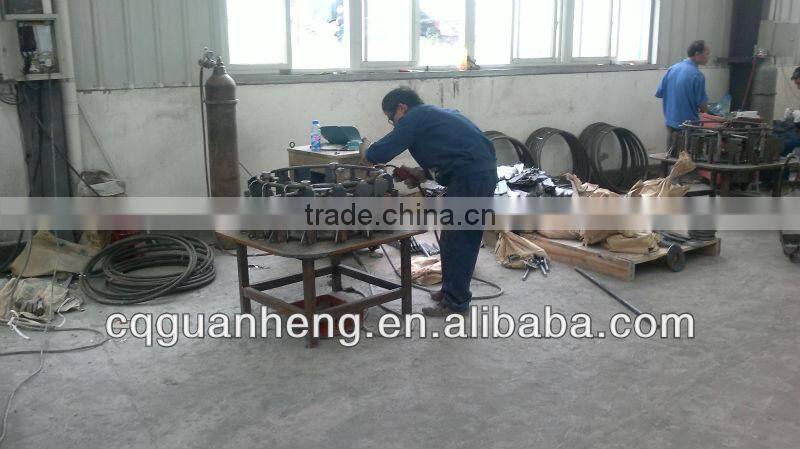

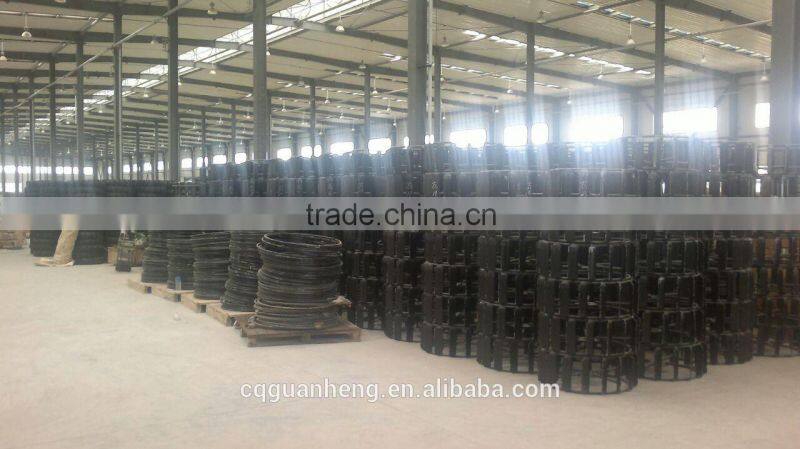

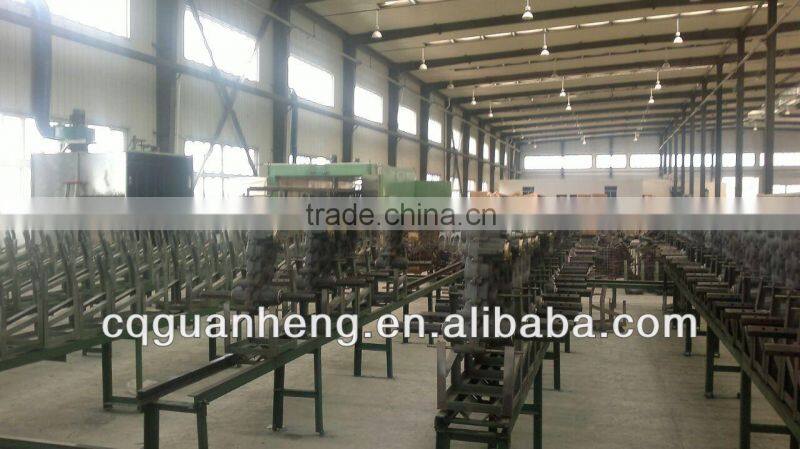

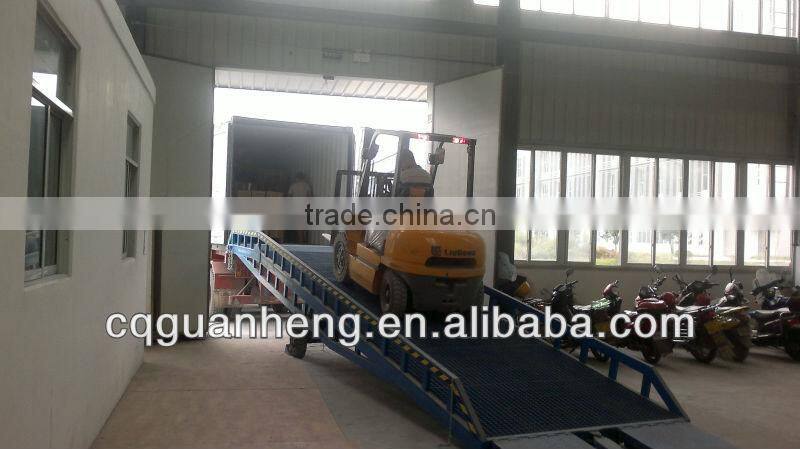

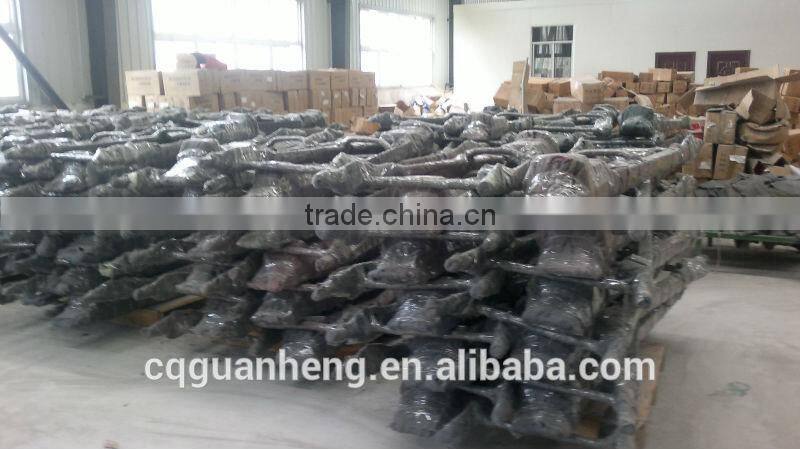

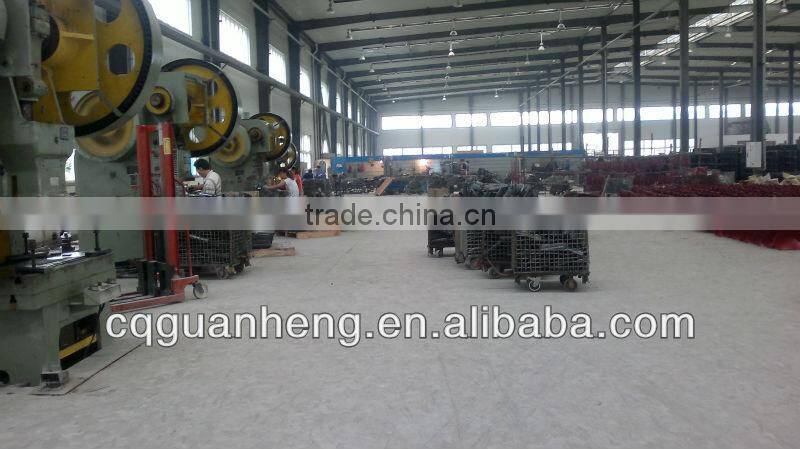

hand tractor factory view:
