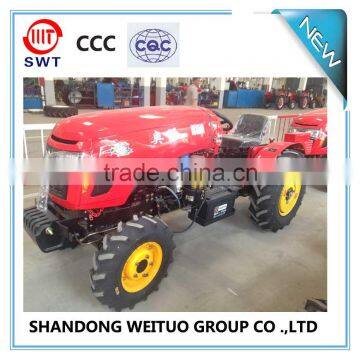

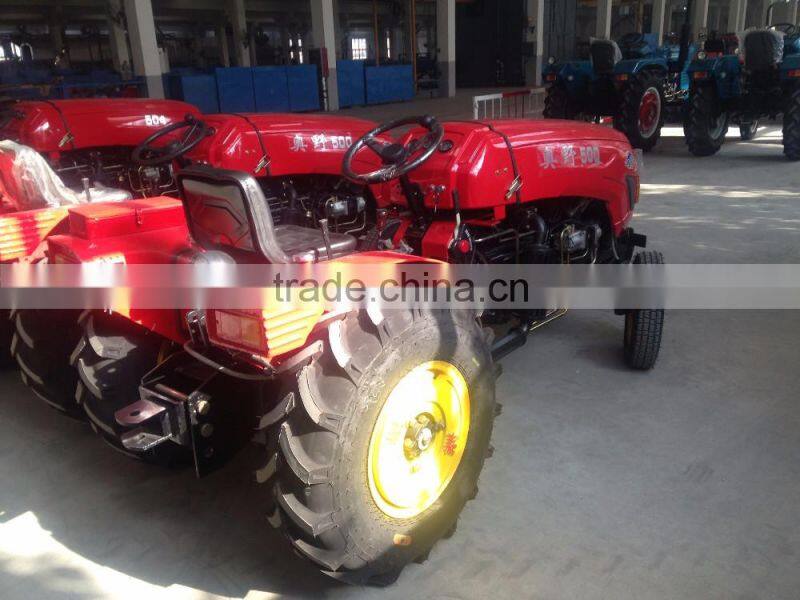

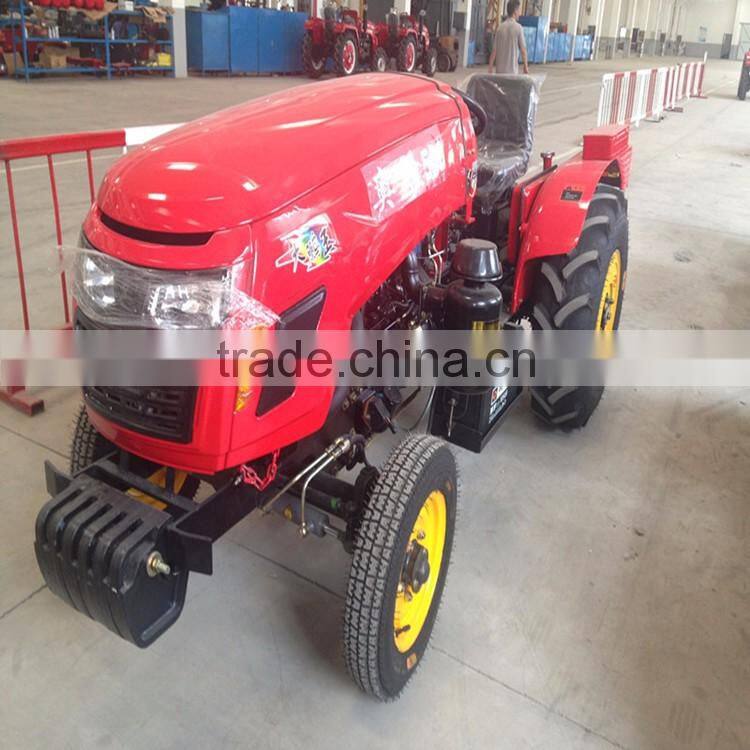

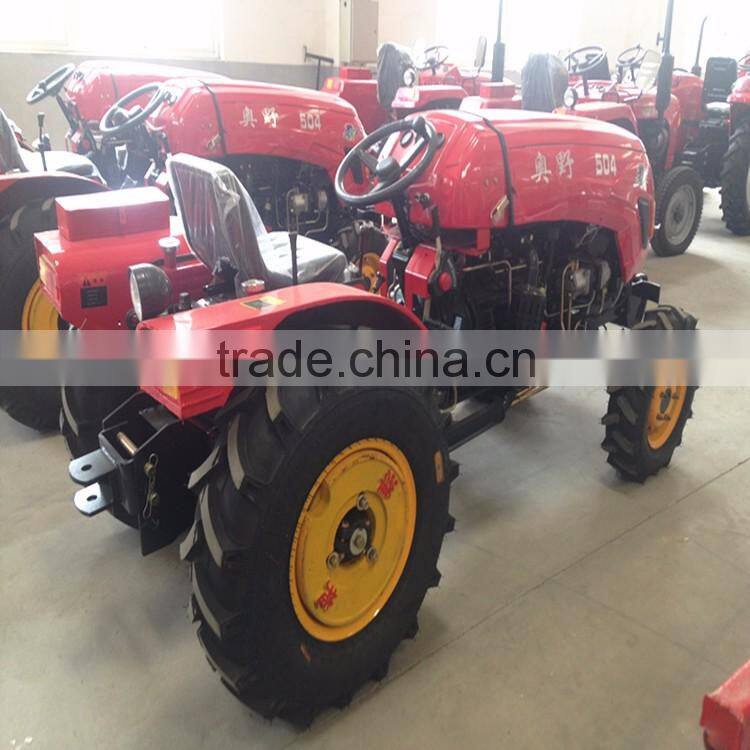

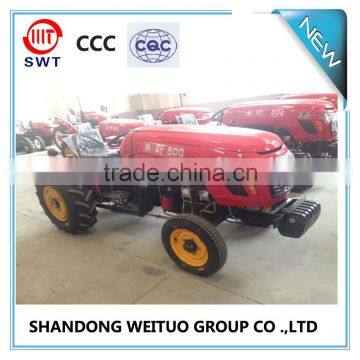

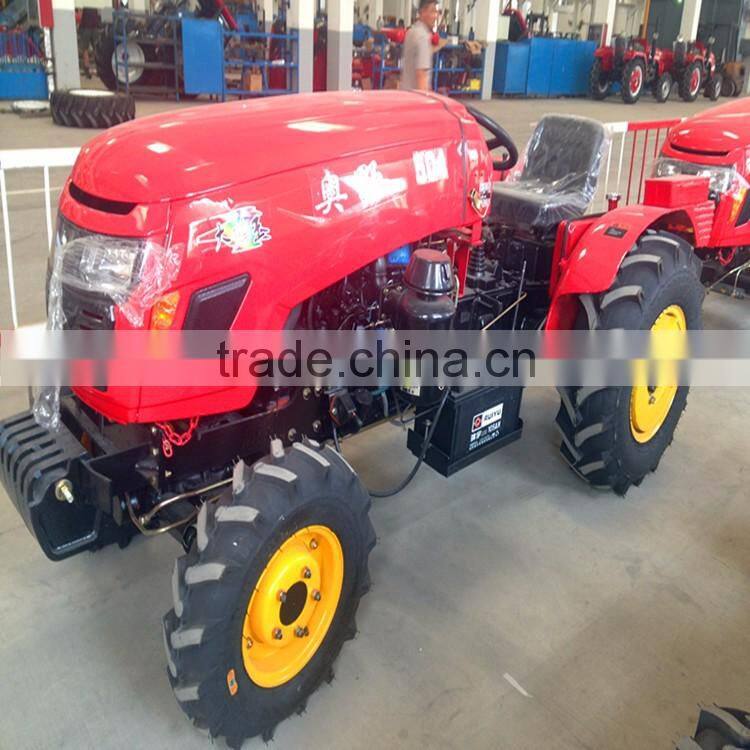

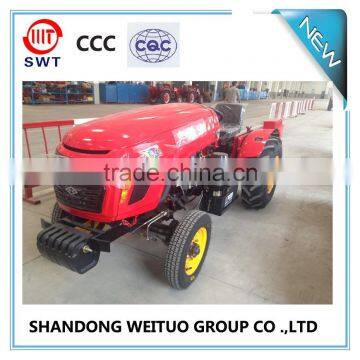

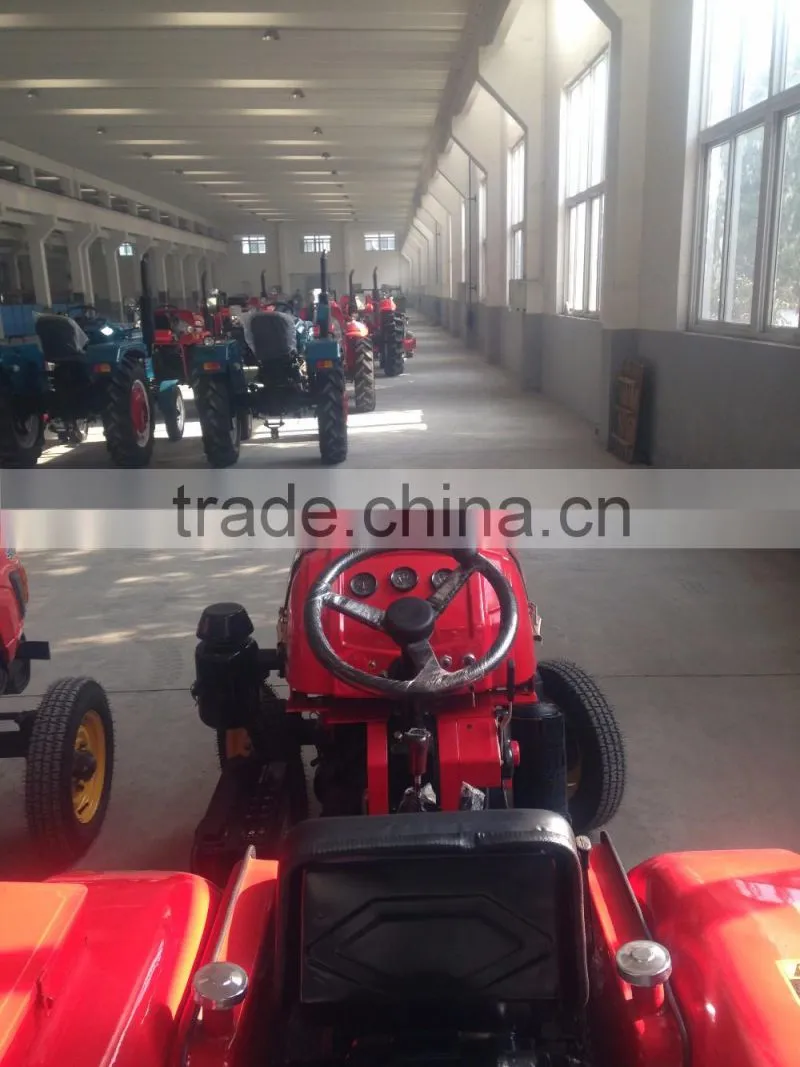

2016 New Model 50HP 4wd mini farm tractor
- 200 Set / Sets per Month
- QINGDAO
- T/T L/C D/P D/A
Product Details
| Condition: | New | Type: | Wheel Tractor | By wheel: | 4WD |
| Usage: | Garden Tractor | Drive Type: | Gear Drive | Power(W): | 36.77KW |
| Certificate: | Other, ISO CCC | Brand Name: | WEITUO | Model Number: | TG |
| Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

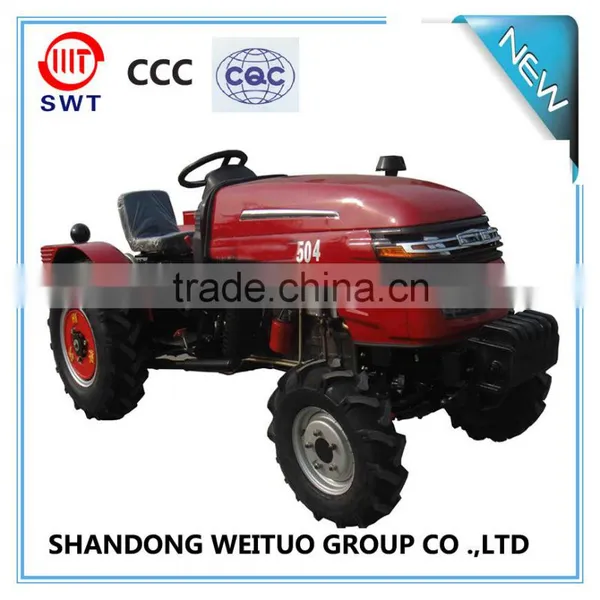

Model | TE400 | TE500 | TE404 | TE504 | ||||||
Type | 4*2 4*4 | |||||||||
(mm) Dimensions Of Tractor | Length | 2950 | ||||||||
Width | 1200 | |||||||||
Height | ≤1170 | |||||||||
(mm) Tread | Front Wheel | 2WD:950/1150/1250 4WD:1000/1200/1250 | ||||||||
Rear Wheel | 2WD:960/1150/1250 4WD:1000/1200/1250 | |||||||||
Wheel Base | 2WD:1720 4WD:1780 | |||||||||
(mm) Min. Ground Clearance | 190 | |||||||||
Min Radius of Turning Circle | One-side braking | 2WD:2.5 4WD:2.8 | ||||||||
No braking | 2WD:3.0 4WD:3.45 | |||||||||
(kg) Dry Mass | 950 | 1150 | 950 | 1150 | ||||||
Engine | Model | 4L23BT | 4L100BT | |||||||
Type | Vertical,4-cylinder,Watercooled,4-stroke | |||||||||
(kW)Rated Power | 29.4 | 36.8 | ||||||||
(r/min)Rated Rev. | 2400 | |||||||||
Fuel | Diesel Oil | |||||||||
Connection between engine and clutch | Shaft connection | |||||||||
Clutch | Single Disc,Dry-friction,Single Stage | |||||||||
Transmission Box | (4+1)×2Mechanical Type | |||||||||
Steering | Mechanical Type or Hydraulic Type | |||||||||
Suspension Type | Post Postitioned Tri-piont Sus pen sion,Catalogue 1 | |||||||||
PTO | (r/min) Type and Rev | 720 Single speed Non-independent Type 720 | ||||||||
Spline Size | (6×28.91×34.79×8.69) Post positioned 1 35 Rectangle Spline with 6 teeth (6×28.91×34.79×8.69) | |||||||||
Speed km/h | Forward | 1.77-26.98 | ||||||||
Reverse | 2.33-10.77 | |||||||||
Tyre | Front | 5.00-12/6.00-12 | ||||||||
Rear | 9.5-16 | |||||||||
One 40 HQ container can load 18 sets. Packaged by iron frame
Warranty:
We provide 12 months warranty. During the warranty period, broken parts are send to users by Express with no cost.
We provide life-long service. If you need any help , please feel free to contact us by mail ,skype: guobao205. We will reply you soon.
Shandong Weituo Group Co., Ltd ( hereinafter called SWT ) is one of the largest backbone enterprises in Chinese Agricultural Machinery Field. It has more than 60 years history and its registered capital is 150 million RMB. SWT covers 210,000 square meters of tractor industrial garden and power machinery industrial garden which are located respectively in Weifang Economic Technology Developing Zone and Fangzi District. Tractor annual output is 100000 units. Engine annual output is 80,000 units. Genset annual output is 30,000 units.
The SWT mainly produces various types of wheeled tractors, power machinery (including diesel engines, gas engines, new energy machinery, etc.), gensets (including low noise gensets and automatic controlled gensets), power equipment accessories and other products.
Contact Us
- Shandong Weituo Group Co., Ltd.
- Contact nameLydia Li
- Phone86-536-2605526
- Address63 East Beigong St., Kuiwen Distt, Weifang, Shandong Province, China Weifang,Shandong
