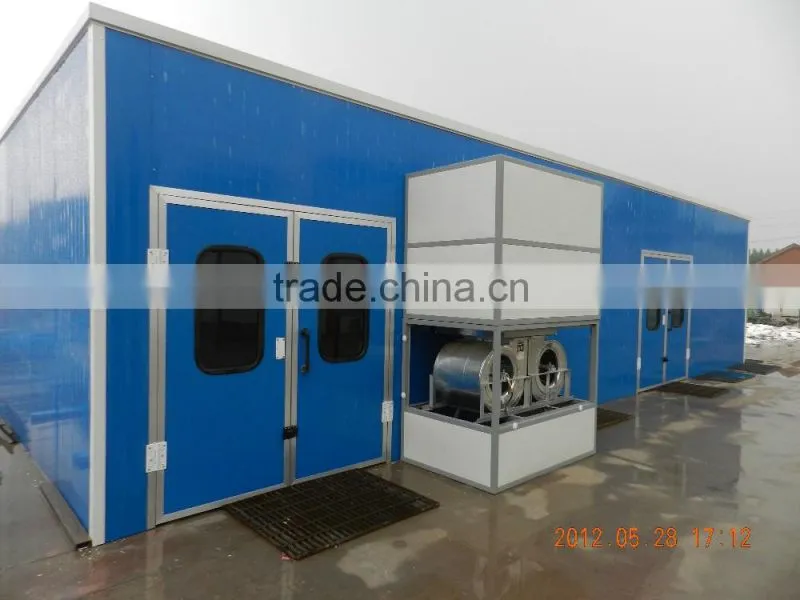

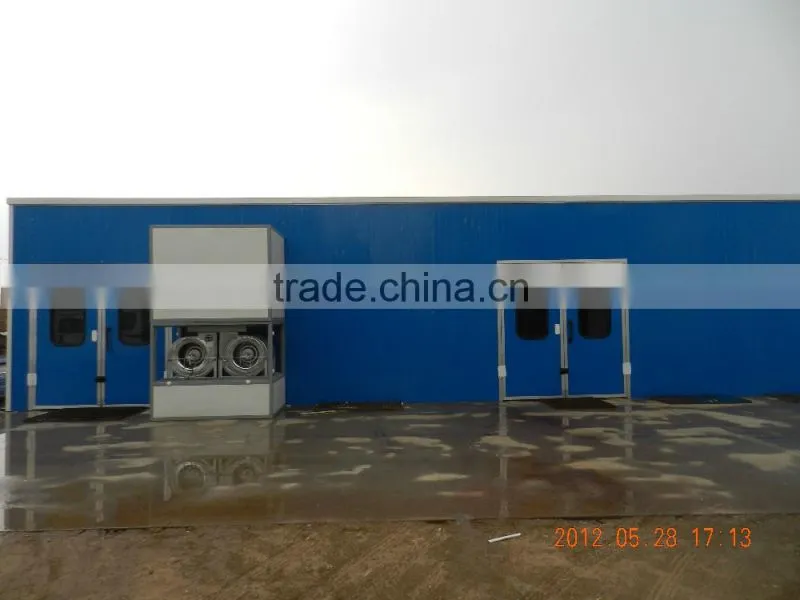

DOT-F2 Certified Furniture Spray Paint Room With Far-infrared Heater
- Qingdao
- T/T
You May Like
-
DOT-F2 Hot Sale and Cheap Spray Booth, Body Paint Baking Oven, Furniture Paint Booth
-
DOT-F3 Include 4.9M Paint Room +18.95M Drying Room
-
DOT-F3 Made in China Furniture Spraying Booth
-
DOT-F1 D Oriental Cheap Spraying Booth / Furniture Spray Paint Room With Oven
-
DOT-F1 Durable Spray Booths Are Furniture Paint Booths With High Quality and Resonable Price
-
DOT-F2 Best Use And Sell Furniture Spraying Booth Paint Booth Infrared Heater
Product Details
| Place of Origin | Shandong, China | Brand Name | D Oriental | |
| Model Number | DOT-F2 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Painting Room Size(m): | 4.9×4.9(L×W) | Drying Room Size(m): | 14.95×4.9(L×W) |
Wall and door | Wallboard and roof panel | Wall panel and ceiling panel: EPS colorful Steel Skin Boards, tongue and groove construction, thickness: 50mm , compound construction, aluminum-alloy Frame. Anti-flame and heat-Insulation. | |
Incoming and delivery Door dimension (mm): | 1900×2000(L×W) | ||
Lighting | Painting room | 6units×3 pieces=18pieces×36W Philips lamp. anti-explosive | |
Baking room | 12pieces×36W Philips lamp. anti-explosive | ||
Brightness | ≥450 LUX | ||
Filtration system | Pre-filters | EU3 grade pocket filter system, filtration effect is much better | |
Ceiling filter | EU5 grade high efficient filter | ||
Exhaust filter | Water curtain filter. Dimension:3000×400×1500mm(L×W×H),stainless steel. Water pump: Brand:Lailibao, capacity: 7m³/h, lift:18m, rotate speed: 2860rotate/m power: 750W 380V/50HZ | ||

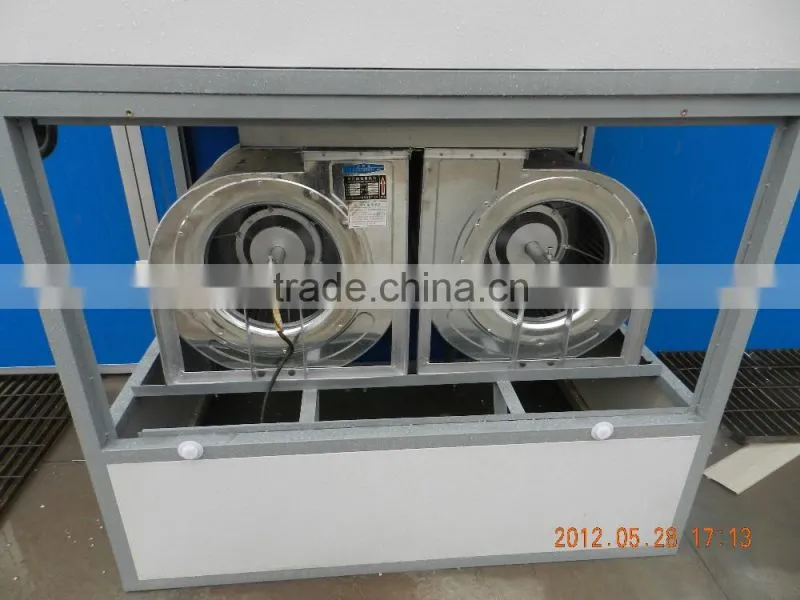

Ventilation system | Inlet fan (Direct drive motor) | 2×4KW double-intake centrifugal fans, air capacity: 24000m³/h. | |

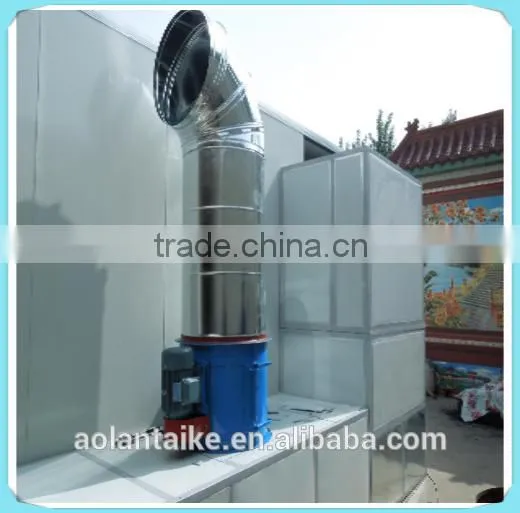

Outlet fan(Direct drive motor) | optional | ||
Air flow speed in cabin | 0.23m/s in empty booth, 0.35-0.45m/s in loaded booth | ||
Heating system | Infrared Heating Tubes | 30 pieces ×1 KW carbon fiber far-infrared heater, anti-explosion. | |
Heating time | 3-5 minutes( from 20°C to 60°C) under baking status | ||
Control board | Control system | Standard control system | |
PLC controller | Yes, PLC control, more reliable and lower breakdown rate | ||
Function | lighting switch, spraying, baking temperature, time setting, emergency stop, temperature controller, power supply | ||
Total power | 39.08KW | ||
A. All of the machines in our factory can be customized. If you have any other requirements of the
machine, please feel free to contact me. We can design it for you.
B: Payment terms: T/T. 30% in advance after order confirmed, 70% in balance before shipment.
C: Delivery time: To effect shipment within 7 days after the receipt of deposit.
D:Warranty time: 1 year. During the warranty time, any defective caused by products quality, CHNHC
has responsibility to offer free spare parts to customers freely and bear the
delivery cost for DHL or TNT Carrier.
Ji'nan D Oriental Technology Co.,Ltd. Is a China based , with integration of development, designation, manufacturing, marketing and services. With more than a decade developing, we positioning on painting equipment, automatic production line and automobile fix & maintenance industries.
The Automatic Business Division was founded in 2008 and make robotic system applying to composite material, precise instrument, automobile industry, metal works, rail transit, sanitary industry and furniture industry etc. Our corporation has become high technology company of the city depend on the advantage of development and technology of ourselves.
1.CE ISO9001 Certification Passed
2. Reliable Quality and Strict Quality Control
3. On-time Delivery Within One Week after the Deposit
4. Reasonable and Competitive Price.
5. OEM ODM Service
6. Excellent Team--Powerful, Efficient and Energetic
Q: Are you a factory or a trading company?
A: We are a factory and all machines are produced at our own factory.
Q:Can I order special color which I like?
A: Yes, we can also produce machines with special color according to client's request.
Q: Can I order spray booth in any special size?
A: Yes,you can.
The size is customized.
Q: I don't know how to assemble your spray booth
A: The complex installation is already finished before delivery, what you need to
do is finishing the simple procedures according to the installation instructions.
Q: When the product can be delivered?
A: Commonly the lead time will be within 7 working days after receiving 30% deposit by T/T.
Q: What is "Trade Assurance"?
A: Trade Assurance is a new service provided by Alibaba, which can provides buyers with a number of trade safeguards, protect buyers' payments, and to ensure suppliers fufill their obligations regarding order delivery time and product quality.
Thanks for your visit.
If you need more information, please click "Send" now.
If you have any other questions, please feel free to contact us.
Name | Kitty |
TEL | +86-156-1018-6292 |
24 Hours Mobile | +86-531-8898-4033 |
|
