YX-320 Label Converting Machine

Name: YX-320 Label Converting Machine
Brand: YINGXUAN
SKU: 104480967
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

YINGXUAN

Model Number:

YX-320

Pingyang Ying Xuan Arts And Crafts Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name YINGXUAN

Model Number YX-320

Condition New

Specifications

YX-320 rotary/semi-rotary label die-cutting machine is new developed converting machine equips with inline slitter.

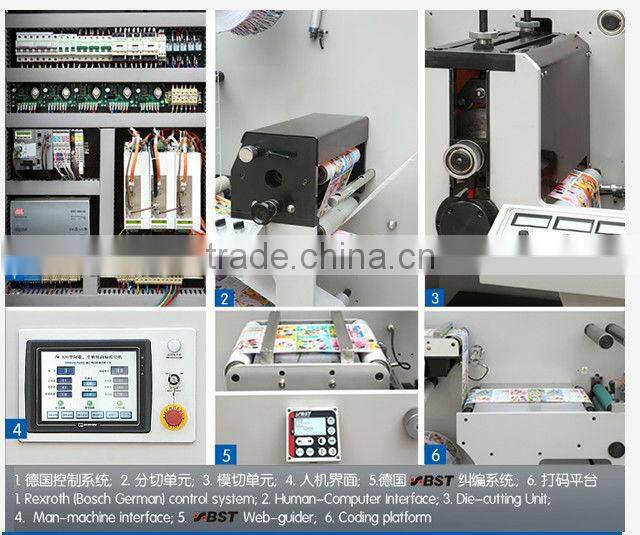

YX-320 rotary/semi-rotary label die-cutting machine adopts latest Rexrtoh-Bosch (Germany) servo and control system

include: unwinder, web-guider, lamination, register die-cutter, slitter and rewinder.

The register die-cutting system is our patent product, it can be full rotary or semi-rotary die-cutter

according to the production requirement.

When semi-rotary die-cutter, the tension among unwinder,

web-guider and rewinder will be the same (different from traditional intermittent type), the material

will not run away during the die-cut.semi-rotary die-cutting unit adopts one big magnetic cylinder,

if you have different applications, the only job is to change the flexible die.

Main Technical Parameters:

Model type	YX-320
Max. Die-cutting speed (rotary)	120m/min
Max.Die-cutting speed (Semi-rotary)	65m/min
Max. Die-cutting length (rotary)	190.5-539.75mm
Max. Die-cutting length (Semi-rotary)	100-350mm
Max .Die-cutting width	300mm
Max web width	320mm
Max. Unwinder dia.	600mm
Max. Rewinder dia	600mm
Die-cutting accuracy	±0.1mm
Slitting width	≥20mm
Power supply	380V 3P
