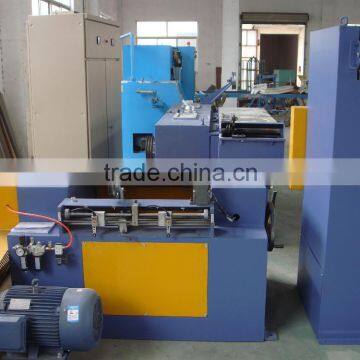

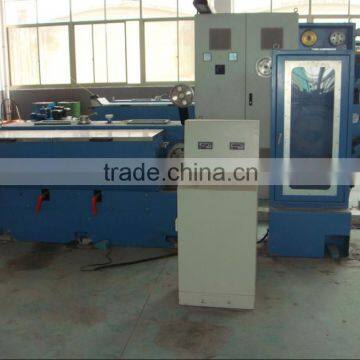

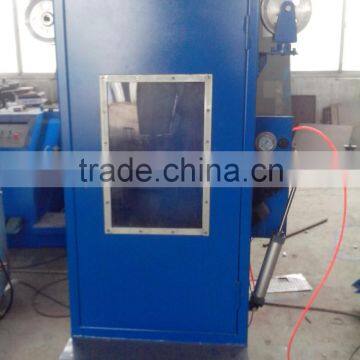

Medium Copper Wire Drawing Machine
US$ 24,200 - 27,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HXE
Model Number:
17DS
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Intermedium Copper Drawing Machine/cable Making Machine/cable EquipmentUS$ 100 - 10,000MOQ: 1 Set -
Intermediate Copper Wire Drawing Machine/power Cable Making MachineUS$ 24,200 - 27,500MOQ: 1 Set
-
CCA Wire Drawing Machine; CCS Wire Drawing MachineUS$ 26,800 - 27,000MOQ: 1 Set
-
HXE-17MDS Medium Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set
-
17MDS-intermediate Copper Wire Drawing Machine-manufacturerUS$ 24,200 - 27,500MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HXE
Model Number
17DS
Usage
Drawing
Medium copper wire drawing machine is used to drawing the copper wire from 2.5-3.2mm to 0.4-1.6mm. It's easy to operate,matain.The most important is its high efficiency ,so it's right to choose our product, we will give you the best service.
| outlet dia. | 0.4-1.6mm |
| inlet dia. | 2.5-3.2mm |
| Max.line speed | 2000mpm |
| inverter control | dual inverter control |
| dies No. | 17 |
| slip ratio of m/c | 20%+15% |
| frame | iron cast |
| capstan | ceramic plasma |
| Max. capstan diameter | 250mm |
| fix speed capstan diameter | 250mm |

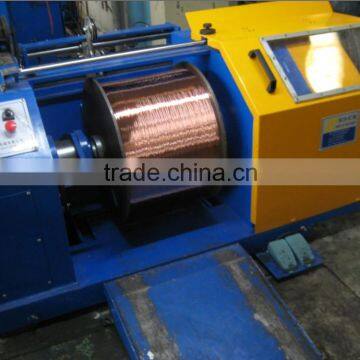

| spooler bobbin size | 400-630mm |
| bobbin loading & unloading type | double end thimble |
| traversing unit | 90W strap speed-down motor type |
| main motor | 55KW |
| spool motor | 11KW |
| transmission type | by precision gears |
| revise system | PID sychronous control spooler |
| detecting device | weight balance by swing arm |
| tension control | by pressure adjust |
| Max. loading capacity | 500kg |
| brake | magnetic brake |
| lubrication type for bearing | oil immersion |
| power source | 380v 50/60HZ |
| lubricationoil capacity | 120L/min |
