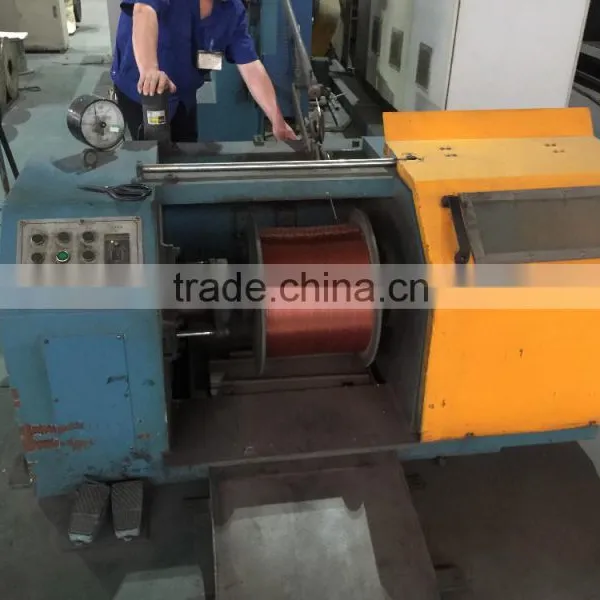

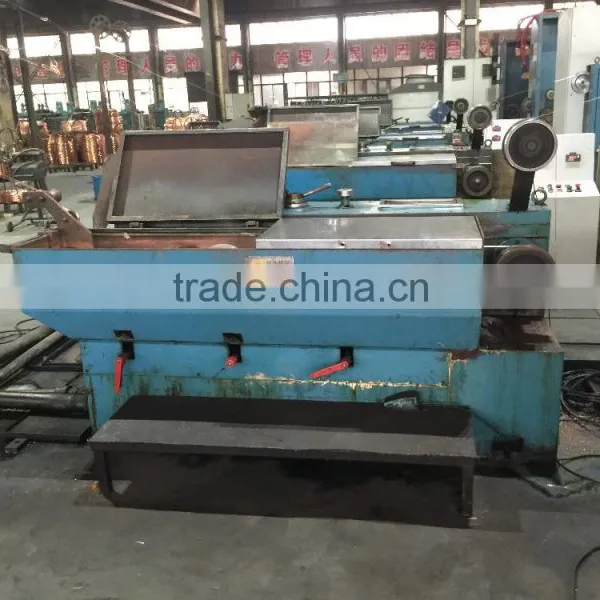

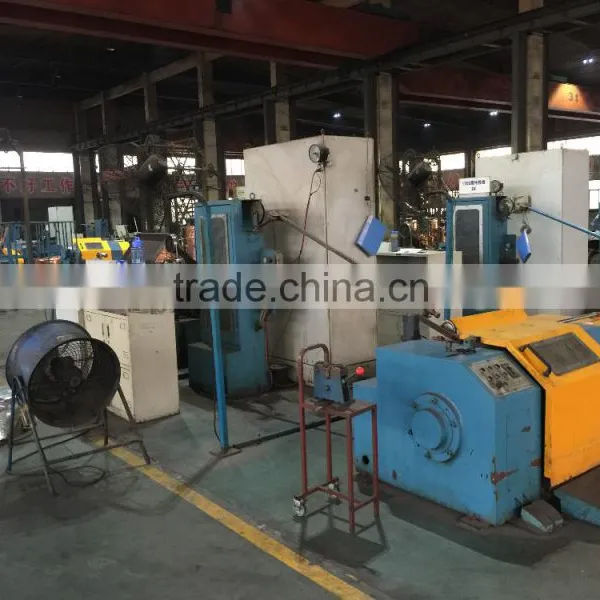

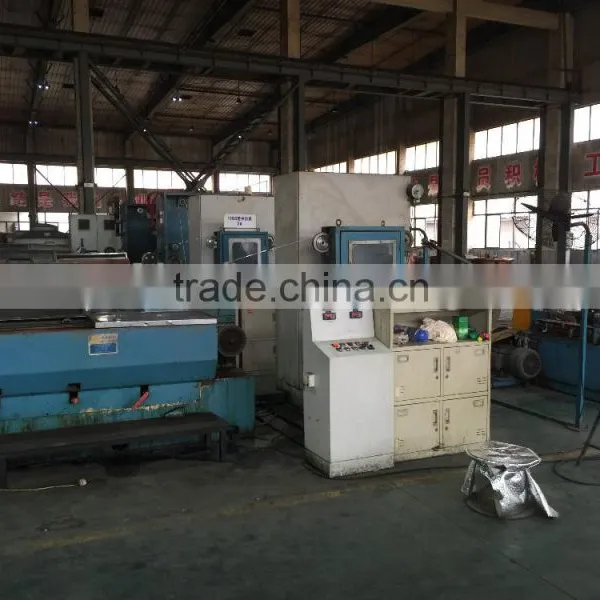

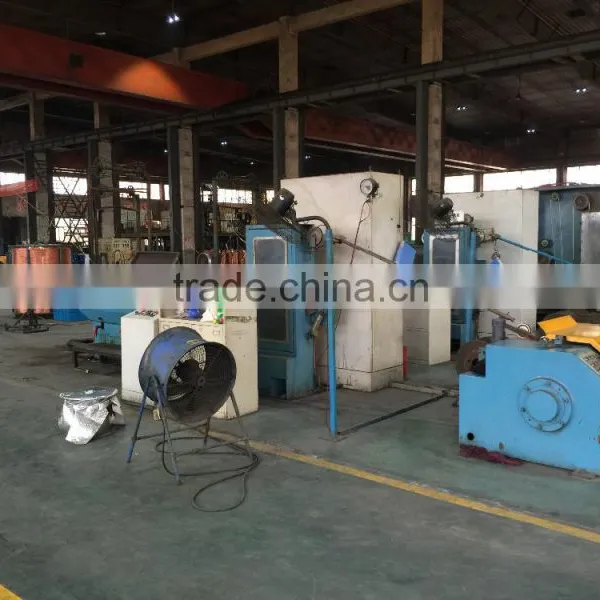

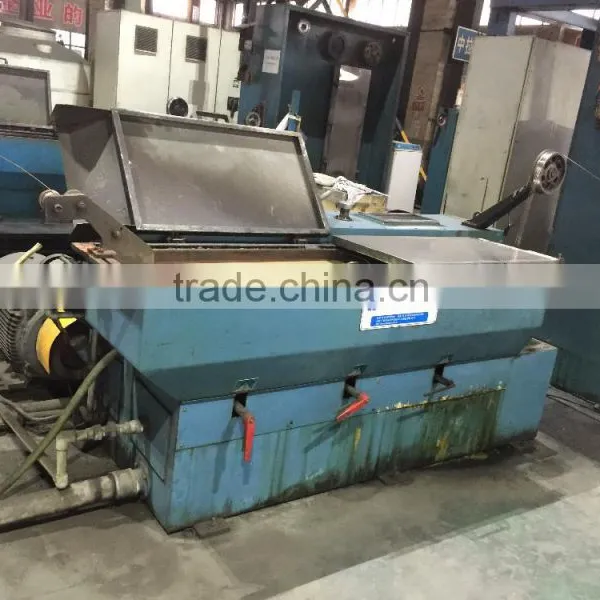

HXE-17DS copper wire drawing machine ; Intermediate copper wire drawing machine; medium copper wire drawing machine
HXE-17DS Intermediate copper wire drawing machine is used to draw single bare copper wire from 2.5mm-3.2mm to 0.4mm-1.8mm.
I. Compositions of equipments
Name | Quantity |
1.Pay-off shelf | 1 set |
2.HXE-17DS Main drawing machine | 1 set |
3.HXE-180 Tension controller | 1 set |
4.HXE-WS630 Take-up machine | 1 set |
5.Electric cabinet | 1 set |
6.Operation panel | 1 set |
7.User manual,including inverter instruction, Installation layout,etc | |
8. Accessories |
II. Main Technical parameters
1.Usage: Bare copper wire drawing
2.Inlet diameter :2.5mm-3.2mm (customized)
3.Outlet diameter :0.4mm-1.8mm (customized)
4.Speed: outlet diameter:0.7mm -0.4mm,1800-1400mpm,
1.0mm -0.7mm,1200-700mpm,
1.6mm -1.0mm,700-500mpm
5.Die Nos.17 pieces/Max(customer self provide) 30mm-15mmT or 25mm-10mmT,the finished die 25mm-10mmT
6.Decrease section ratio of m/c:18.18%+13.58%
7.Main motor: AC 3 phase 55KW(power source :customized)
8.Take up motor:AC 3phase 11kw,controlled by inverter independently.
9.Take up capacity:250kg for diameter 500mm iron spool ,Max. weight:500kg (customized)
10.Spool size:diameter500mm-630mm/Max. 500mm Spool specs:Outer diameter:500mm (customized) Outer width:324mm,Inner diameter:271mm,Inner width:300mm, Hole:22mm,Shaft bore:127mm
11.Capstans:tungsten carbide coated, 4-tier unity
12.Capstan lubrication:full immersion
13.Traversing:90w reversible motor control,transmission by timing belts
14.Brake: pneumatic brake
15.Machine dimension(L*W*H): Main machine: 2100*1100*1000mm Take up:1850*1650*1000mm
16.Machine weight:5100kg
III. Main components list
No. | Item | Specs | Origin | Brand | Note |
1 | Main Inverter | MD320__AC | Shenzhen | INOVANCE | 55KW |
2 | Take up inverter | MD320__AC | Shenzhen | INOVANCE | 11KW |
3 | Main motor | 3Phase__AC | Anhui | WN | 55KW |
4 | Take up motor | 3Phase__AC | Anhui | WN | 11KW |
5 | Proximity switch | E0 | Germany | P+F | |
6 | Electric cabinet | Hengxie | HXE | ||
7 | Precision resistance | WDD35-4 | Shanghai | Military enterprises | |
8 | Bearing | NSK | Japan | NSK | |
9 | Capstan | Tungsten carbide | Guangdong | Chuangkang | |
10 | Low voltage equipment | France | Schneider | ||
11 | Instrument | Shenzhen | INOVANCE | ||
12 | Frame | 17DS | Hengxie | HXE | Q235 |
The end
Manufacture Suzhou Hengxie Machinery Co., Ltd
Sign by Bryant Wu
Date 2015-10-07
