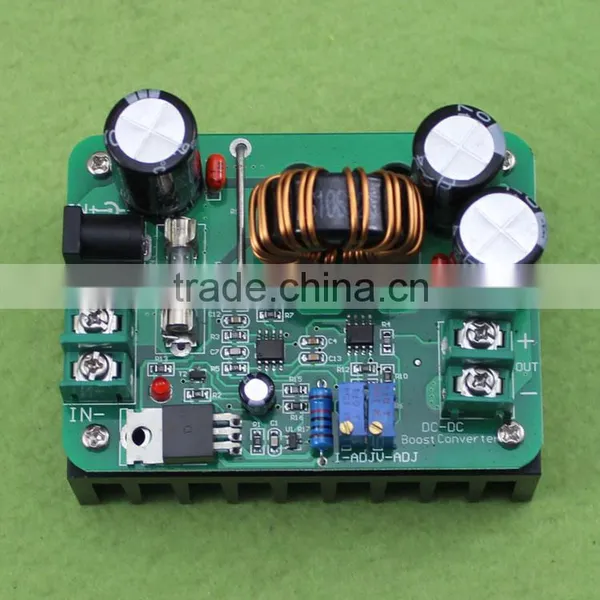

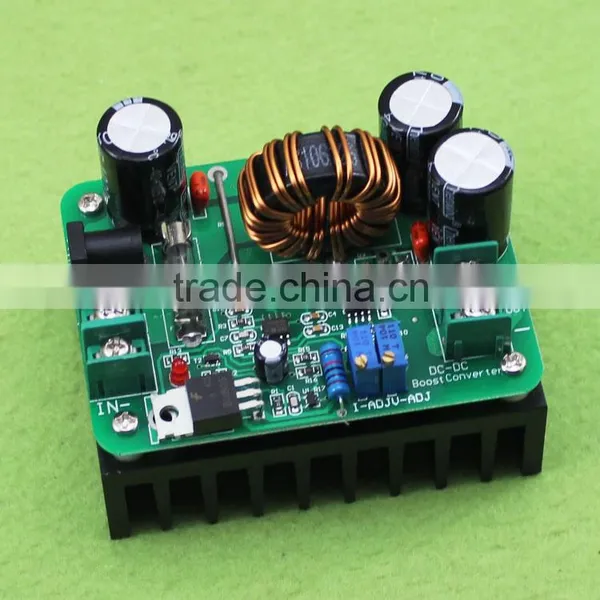

The most adequate materials! The whole weight of 265 grams, large production, machine patch on the back of tin, suitable for high current!
600W high power boost module, wide voltage input: 12V ~ 60V, 12V80V adjustable wide voltage output; output current can be adjusted; ultra low input and output voltage difference.
Detailed parameters:
Input voltage: 12V-60V
Input current: maimum input current 15A
Output voltage: 12V-80V continuously adjustable
Output current: maimum output current 10A (adjustable)
Output power: effective power P = input voltage V * 10A
Conversion efficiency: up to 95% (input voltage, current, output voltage, current conversion efficiency)
Short circuit protection: fuse
Module size: 73*51mm
weight270gDetail description:

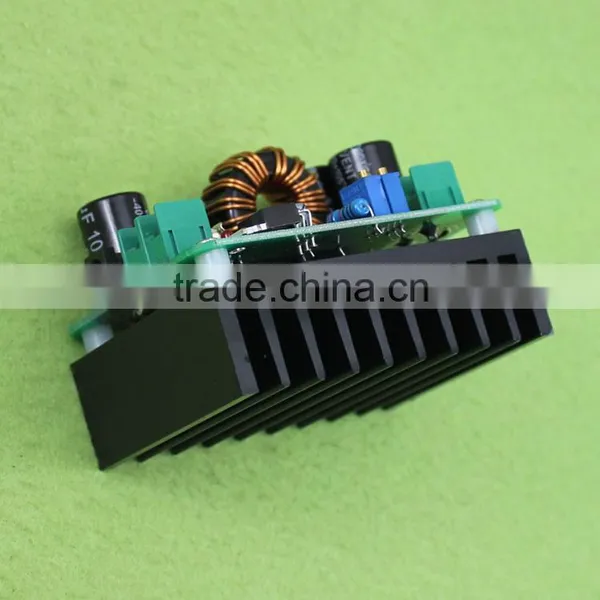

1. The product materials chronological, using a custom radiator, specifications: radiator base plate thickness of 5mm, tooth 21mm, length 85mm, wide 63mm, boost fied plate radiator above, rational design, radiator and boost board integration design, convenient for users to directly use, use use long screw nails can be fied.

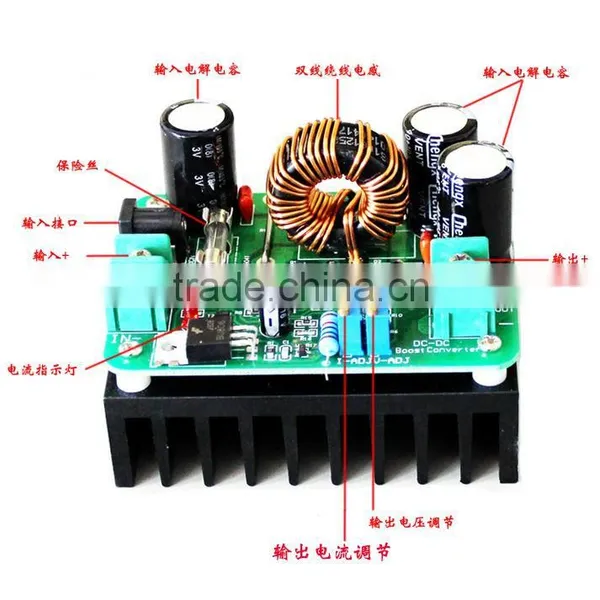

The 2 magnetic ring with 27mm sendust cores, 1mm double winding inductance, high input filter capacitance, 1 1000uF63v capacitors and two output 470uF100V electrolytic capacitor, boosting the output power quality better, the plate load power switch, power indicator, voltage regulator with current regulating potentiometer, and the output is more convenient, may at any time to adjust the output voltage and current size, input and output by 8500 terminals, strong through the current capability to ensure work reliably for a long time.
Application range:
1.DIY an output can be adjusted on board power supply, only need to enter the 12V power supply, the output voltage can be (14V-80VContinuous adjustment, but the output voltage can not be less than the input voltage.
2.Universal vehicular notebook power supply. Enter the 12V power supply, the output can be regulated into a notebook need to work.
3 booster charger, you can use 12V power supply is higher than the 12V battery charge, such as 24V battery, and the charging current can be adjusted.
4 power supply for the electronic equipment, as long as the voltage is regulated to the required voltage and current does not eceed the rated current can be normal work.
5. System level power supply, when working on a project, input 12V-18V. System board need about 24V power and power very ordinary DC-DC power module is too small, then the module will be your best choice, directly on the machine can work without debugging, easy to do, rate of high power boost.
Module application eamples:
1 input voltage 12V current 8.73A, boost output voltage 20V current 5.0A, module efficiency is about 86%, output voltage, current stability
2 input voltage 54V current 13.5A, output 58V current 12A, the use of 5 ohm 1Kw resistance as a load test, the efficiency is 95%
3 module output965W test chart, using a 5 1Kw resistor as a load test
