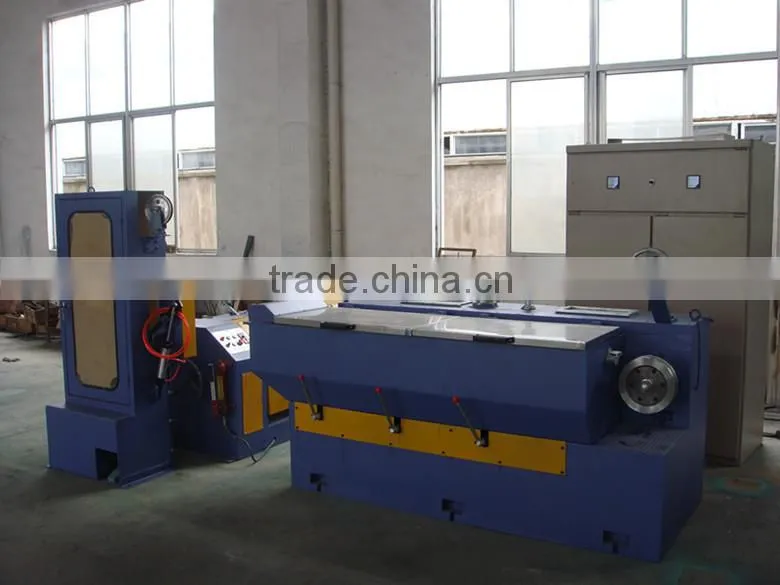

Help CenterIntermediate Copper Wire Cable Machine-drawing Usage-copper Making Machine
Related Products
-
Intermediate Copper Wire Cable Drawing Machine-water Immersion Type-17DS ManufacturerUS$ 1 - 2MOQ: 1 Set -
Intermediate Power Cable Pulling Machine-copper WireUS$ 1 - 2MOQ: 1 Set
-
Intermediate Copper Wire Producing Machine-17DSUS$ 1 - 2MOQ: 1 Set
-
Intermediate Copper Wire Drawing Machine-cable Making MachineUS$ 1 - 2MOQ: 1 Set
-
Intermediate Copper Wire Cable Continuous Drawing Machine-cable Industry-manufacturerUS$ 1 - 2MOQ: 1 Set
Specification
1. inlet diameter: 2.5-3.2mm
2.outlet diameter: 0.4-1.6mm
3.Speed: 2000mpm
Machine type |
HXE-17MDS |
HXE-17DS |
HXE-17D |
HXE-17MD |
Control system |
Traditional analog type |
|||
Inverter control |
Dual inverter control |
|||
Inlet diameter |
2.5-3.2mm |
2.5-3.2mm |
2.6-3.2mm |
|
Outlet diameter |
0.4-1.2mm |
0.4-1.6mm |
0.4-1.2mm |
0.4-1.2mm |
Max line speed |
1500mpm |
2000mpm |
1200mpm |
|
Die numbers |
17 |
|||
Slip ratio of m/c |
15%+10% |
20%+15% |
18%+12.5% |
15%+10% |
frame |
Welded by steel plate |
Cast iron |
||
Capstan |
Ceramic plasma or tungsten |
|||
Max capstan diameter |
254mm |
250mm |
260mm |
254mm |
Fix speed capstan diameter |
252mm |
250mm |
260mm |
254mm |
Fix speed capstan diameter |
252mm |
250mm |
260mm |
252mm |
Spooler bobbin size |
400mm-630mm/max |
|||
Bobbin loading &unloading type |
Double end thimble |
|||
Traversing unit |
90W strap speed down motor type |
|||
Main motor |
37kw |
55kw |
37kw |
|
Spool motor |
11kw |
|||
Transmission type |
Precision ground gears |
Chain |
||
Revise system |
PID synchronous control spooler |
|||
Detecting device |
Weight balance by swing arm |
|||
Tension control |
By air pressure adjust |
|||
Max loading capacity |
500kg/max |
|||
brake |
Disc brake |
|||
Lubrication type for bearing |
Oil immersion |
|||
Lubrication type |
Water immersion +spray type |
Full dip in |
Spray type |
|
Power source |
380V 50/60HZ |
|||
Dimension |
3500x1200x1250 |
2100x1022x995 |
5000x2500x2000 |
|
Weight |
4500KG |
5100KG |
3000KG |
3000KG |
Certifications
Packaging&Delivery
Exhibition

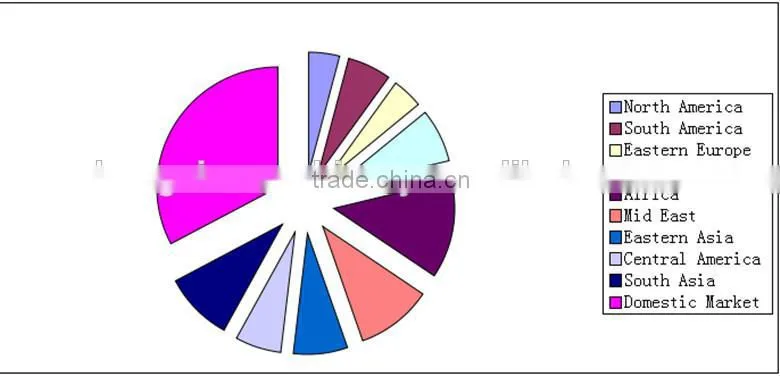

Market share
Brand of accessories
Inverter : Invoance
Motor :Wannan
Precision resistance: WDD military enterprise
Bearing :NSK
Low voltage equipment: France Schneider
Warranty
6 month for electrical part
12 month for mechanical part
After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the rod breakdown machine , if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
