Home > Products > Module > AM2303 digital temperature and humidity sensor 18B20 temperature and humidity probe high precision industrial grade

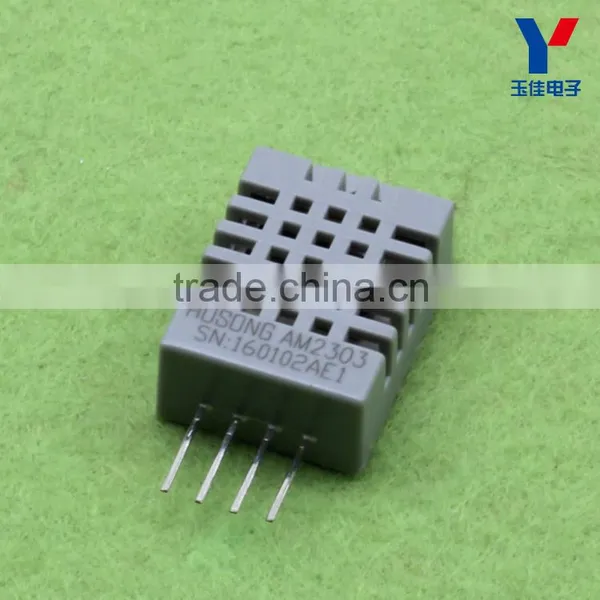

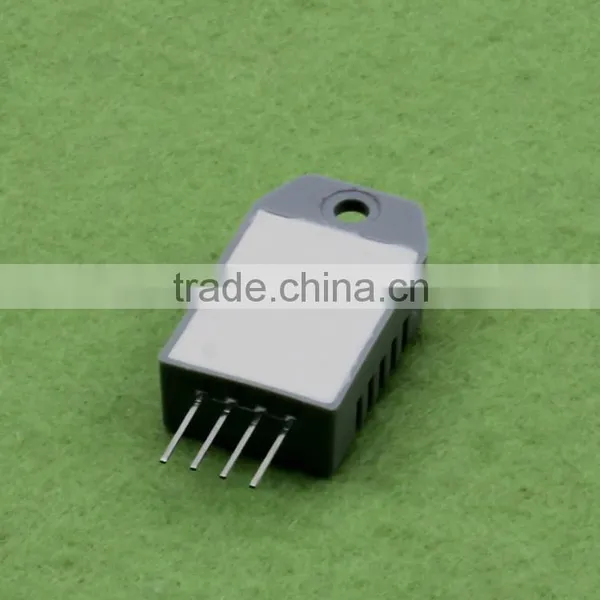

AM2303 digital temperature and humidity sensor 18B20 temperature and humidity probe high precision industrial grade
- 8699 Piece / Pieces per Month
- HK
- T/T L/C D/P D/A Credit Card PayPal
- SHT10 patch temperature and humidity sensor imported genuine
- HC-08-USB turn Bluetooth serial port module wireless transmission through the computer terminal PC terminal 4
- HC-06-USB turn Bluetooth serial port module CSR wireless transmission through the computer terminal PC terminal
- 10A high power DC-DC 300W adjustable voltage regulator power supply module with voltage meter display
- Blue screen 12864 character LCD screen with no single chip supporting liquid crystal
- Low voltage or high voltage module of high voltage inverter transformer module 80 thousand fast lighter
Packaging Details
stand tube or reel
Product Description
AM2303Product overview
AM2303Digital temperature and humidityThe sensor is a digital signal that has been calibrated.Temperature and humidity combined sensor with number output.It uses the special digital module collection technology and the temperature and humidity sensing technology, to ensure that the product has a high reliability and ecellent long-term stability. The sensor includes a powerVolumetypesenseWet components and aNTCTemperature measuring element, and with aHigh performance 8 bit single chip microcomputerconnect Therefore, the product has ecellent quality, super fast response, strong anti-interference ability, high cost performance. eachAM2303The sensors are calibrated in a highly accurate humidity calibration chamber. The calibration coefficient is stored in the OTP memory in the form of the program, and the sensor is called in the process of the detection signal.singleLine serial interface, so that the system integration becomes simple and quick. Ultra small size, etremely low power consumption,Signal transmission distance of up to 20 meters or more,Make it the best choice for all kinds of applications and even the most demanding applications. productby4Pin single row pin package.Convenient connection.
parameter | condition | Min | Typ | Ma | Company | |||
humidity | ||||||||
resolving power |
|
| 0.1 |
| %RH | |||
| 16 |
| Bit | |||||
Repeatability |
|
| .1 |
| %RH | |||
accuracy | 25C |
| .2 |
| %RH | |||
-2080C |
|
| .5 | %RH | ||||
Interchange | Completely interchangeable | |||||||
sampling period |
| 1.7 | 2 |
| S | |||
response time | 1/e (63%) 25C,1m/satmosphere |
| <5 |
| S | |||
Hysteresis |
|
| <.0.5 |
| %RH | |||
Long-term stability | Typical value |
| <.0.5 |
| %RH/yr | |||
temperature | ||||||||
resolving power
|
|
| 0.1 |
| C | |||
| 16 |
| Bit | |||||
Repeatability |
|
| .0.2 |
| C | |||
accuracy |
|
|
| <.0.5 | C | |||
Range range |
| -40 |
| 125 | C | |||
response time | 1/e (63%) | 6 |
| 20 | S |
Highlights of this product: ultra low energy consumption, transmission distance, all automatic calibration, the use of capacitive humidity sensitive devices, completely interchangeable, standard single output, ecellent long-term stability, the use of high-precision temperature measurement device
