Copper Wire Drawing Machine-17D-manufacturer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HXE
Model Number:
17D
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HXE-17DS High Quality Intermediate Copper Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set -
Intermediate Copper Wire Drawing Bench-17DS-chinaUS$ 1 - 2MOQ: 1 Set
-
Intermediate Copper Wire Cable Pulling Machine-cable Industry-manufacturerUS$ 1 - 2MOQ: 1 Set
-
Intermediate Copper Wire Cable Drawing Machine-house Cable Manufacturing EquipmentsUS$ 1 - 2MOQ: 1 Set
-
17DS Medium Copper& Aluminum Wire Drawing Machine -FactoryUS$ 1 - 2MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HXE
Model Number
17D
Usage
Drawing

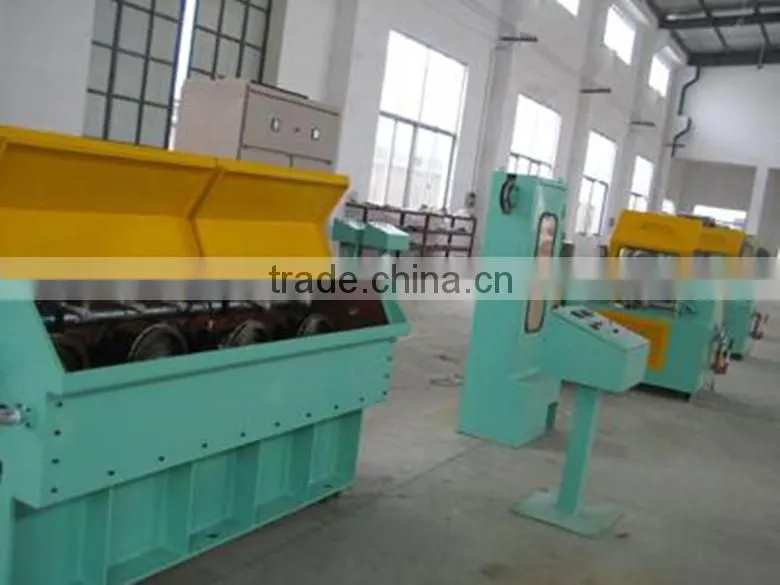

copper wire drawing machine-17D-manufacturer
| outlet dia. | 0.4-1.2mm |
| inlet dia. | 2.5-3.2mm |
| Max.line speed | 1500mpm |
| inverter control | dual inverter control |
| dies No. | 17 |
| slip ratio of m/c | 20%+15% |
| frame | iron cast |
| capstan | ceramic plasma or tungsten |
| Max. capstan diameter | 250mm |
| fix speed capstan diameter | 250mm |
| spooler bobbin size | 400-630mm |
| bobbin loading & unloading type | double end thimble |
| traversing unit | 90W strap speed-down motor type |
| main motor | 55KW |
| spool motor | 11KW |
| transmission type | by precision gears |
| revise system | PID sychronous control spooler |
| detecting device | weight balance by swing arm |
| tension control | by pressure adjust |
| Max. loading capacity | 500kg |
| brake | magnetic brake |
| lubrication type for bearing | oil immersion |
| power source | 380v 50/60HZ |
| lubricationoil capacity | 120L/min |
Certification
Package&Delivery
In Exhibition
Brand of accessories
Inverter : Invoance
Motor :Wannan
Precision resistance: WDD military enterprise
Bearing :NSK
Low voltage equipment: France Schneider
Warranty
6 month for electrical part
12 month for mechanical part
After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the rod breakdown machine , if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
