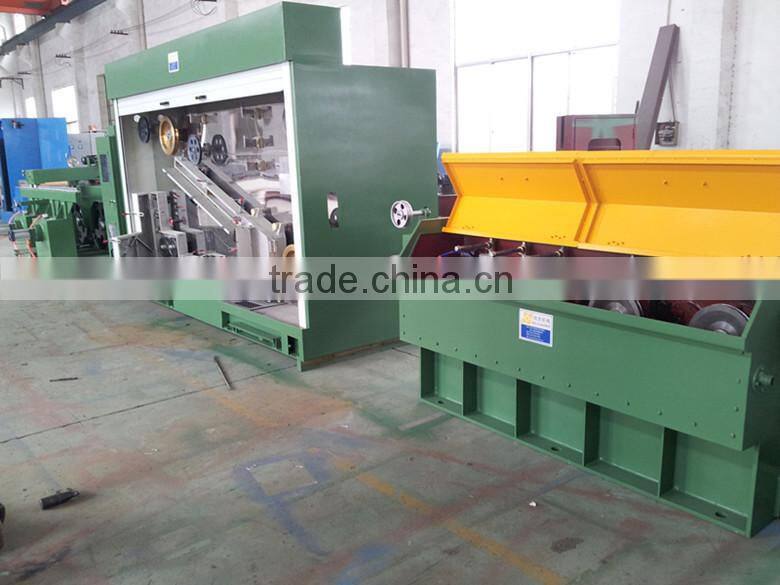

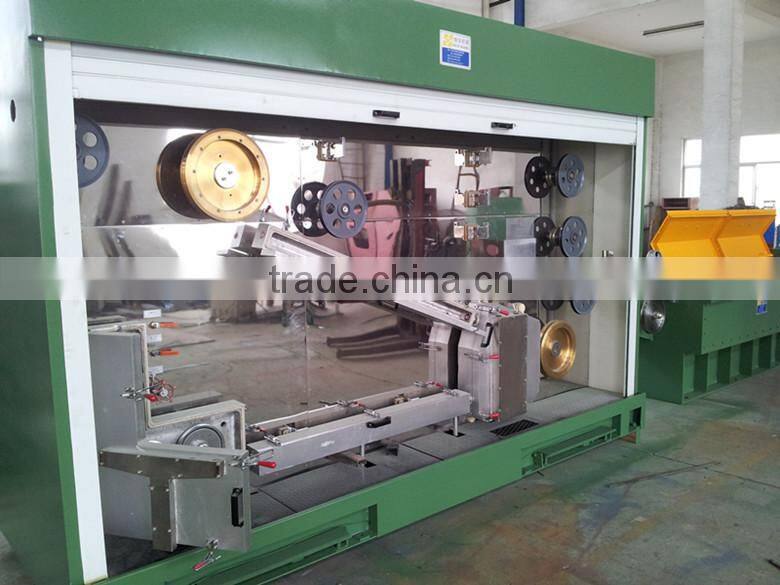

Large-medium copper wire cable making machine with annealer
Specification
1. .Inlet size:3.0mm-3.5mm
2. Outlet size:1.0mm-2.8mm
3. Max mechanical speed:900m/min
Main technical parameter
1.Inlet size:3.0mm-3.5mm
2.Outlet size:1.0mm-2.8mm
3.Max mechanical speed:900m/min
4.Dies number:13pcs (Four-axis & Horizontal type)
5.Dies size:30mm*15mmT or 25mm*10mmT
6.Slip ratio of m/c: 1st -8thdie: 19.6% , 9th die: 12.5%
7.Frame: Welded by steel plate

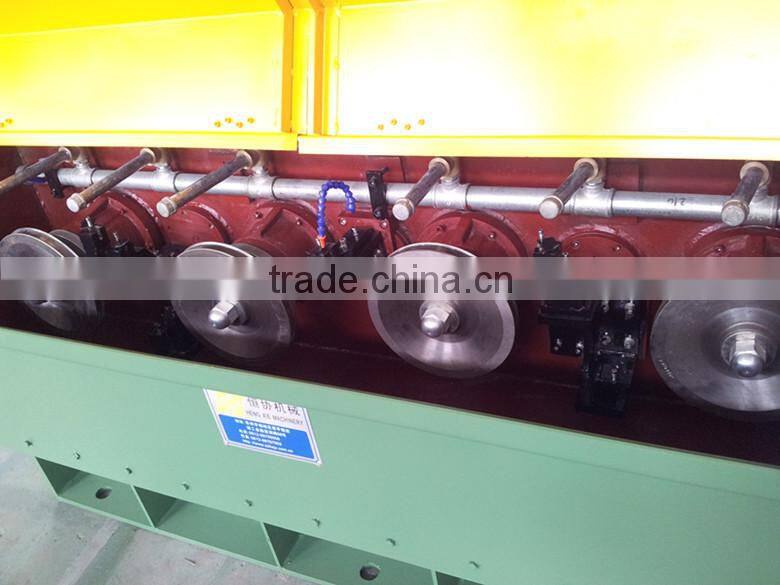

8.Capstans: Tungsten coated
9.Capstan diameter: 280mm

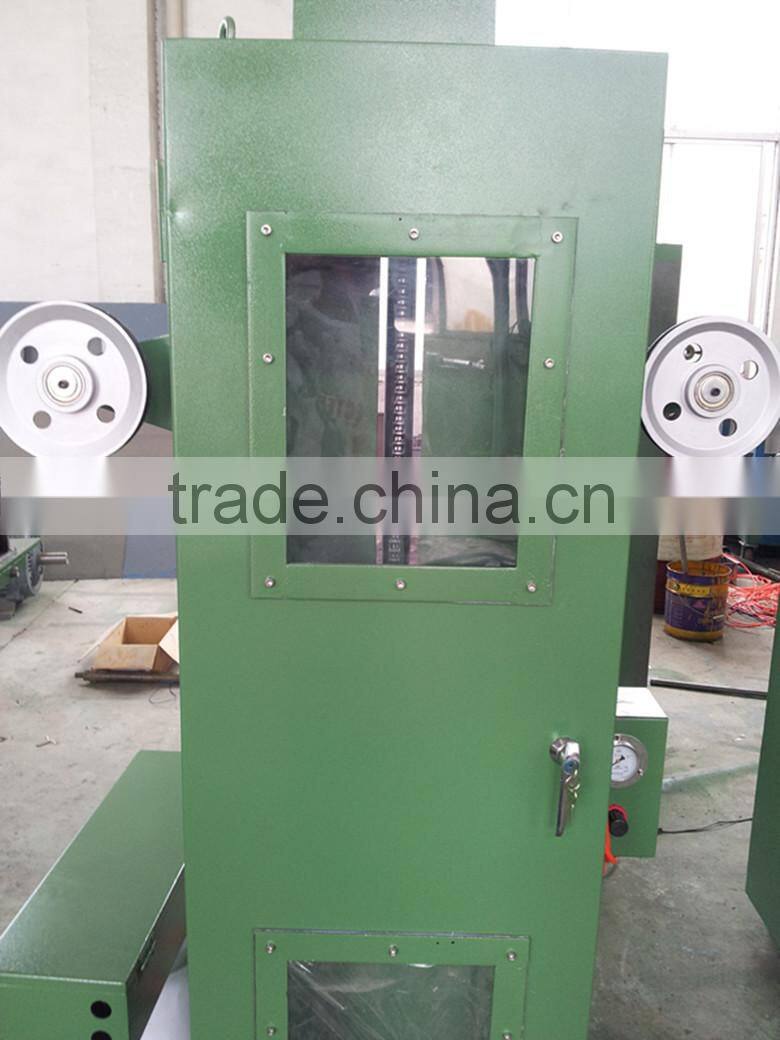

10.Annealing method: Three-section annealing
12.Annealing current: DC3000A
13.Annealing voltage: 55V
14.Annealing power: 165KVA
15.Main motor: 45kw (Inverter control)
16.Spool motor:11kw*2 sets (Inverter control)

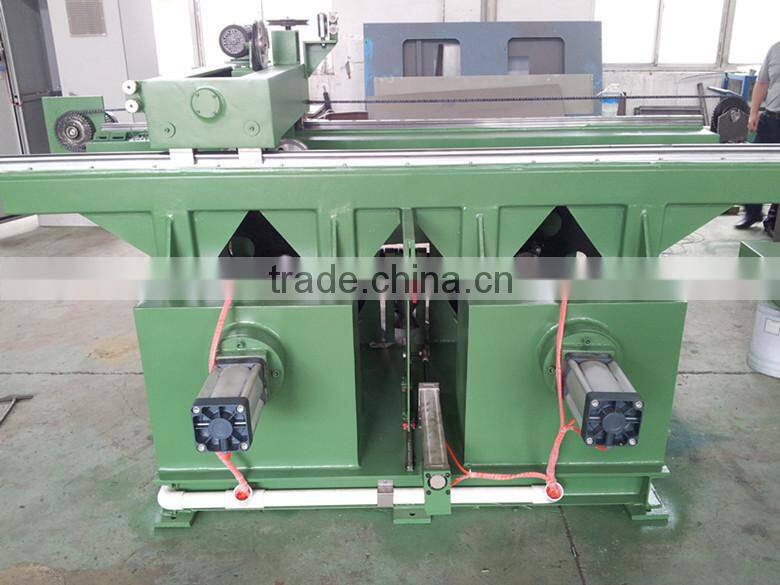

17.Spool size:400mm&630mm
18.Spool loading*unloading:Double end thimble
19.Lubrication: Half dip in+water pipe spray
20.Lubrication capacity:150L/min
21.Power source: customize
22.Machine dimension: L13300mm*W3500mm*H3400mm
23.Machine weight: 8500KG
Brand of accessories
Inverter : Invoance
Motor :Wannan
Precision resistance: WDD military enterprise
Bearing :NSK
Low voltage equipment: France Schneider
Warranty
6 month for electrical part
12 month for mechanical part
After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the rod breakdown machine , if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
