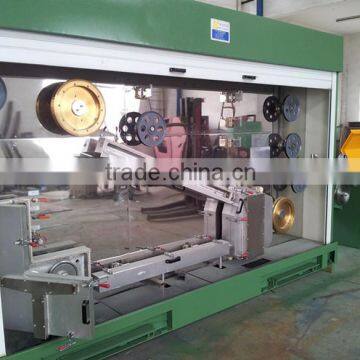

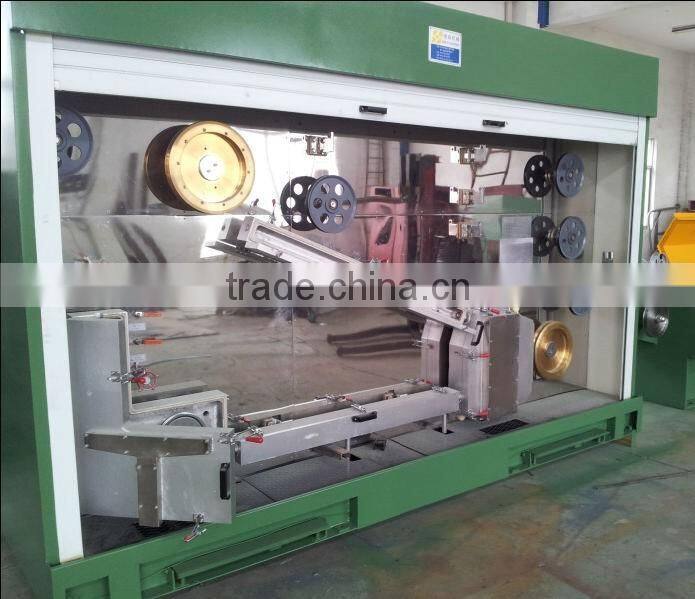

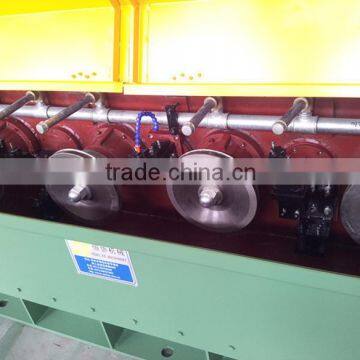

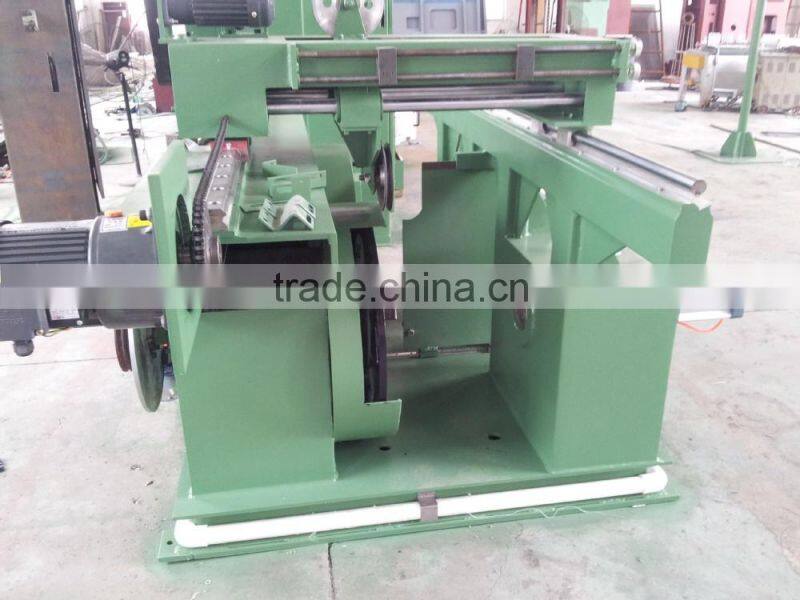

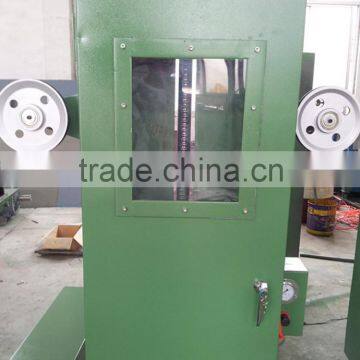

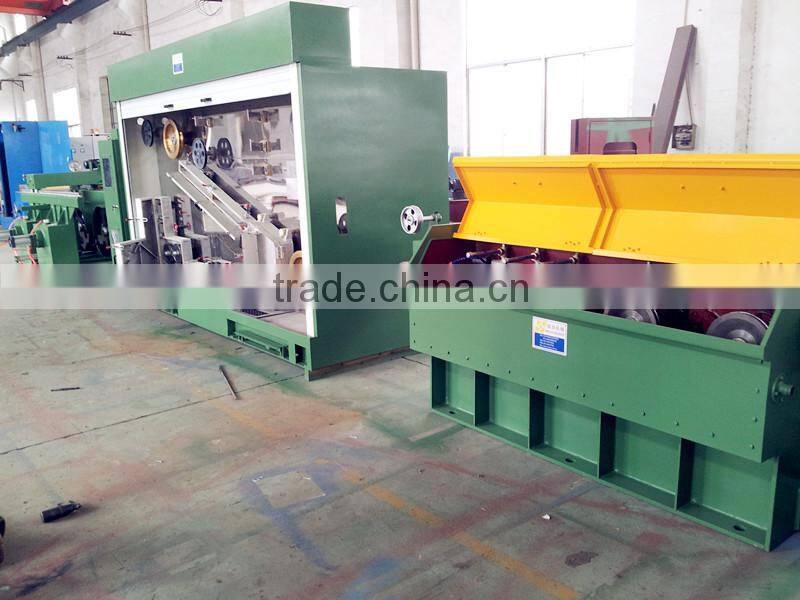

9DT Large-medium copper drawing machine with continuous annealer is used to drawing the copper wire from 3.0-3.5mm to 1.0-2.8mm.Easy to operate,matain and high efficiency.

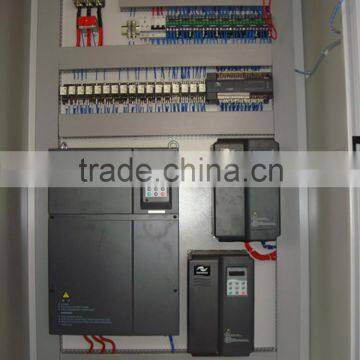

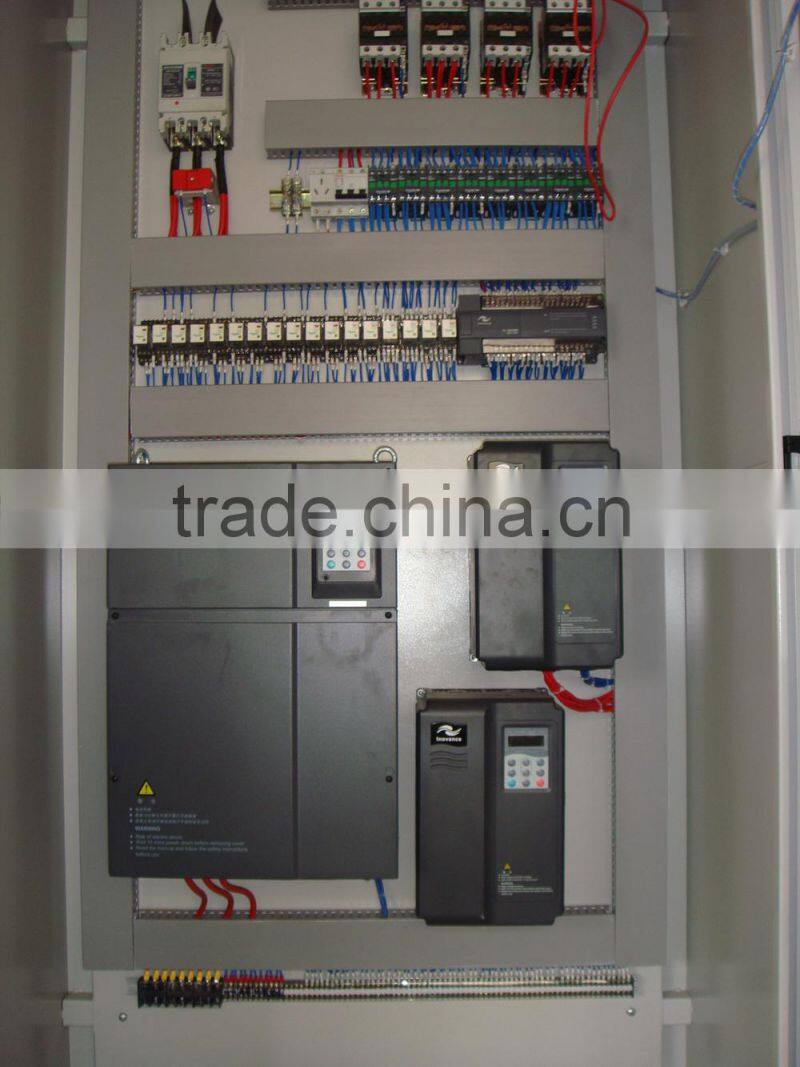

| Control system | traditional analog or digital contral |
| Outlet dia. | 0.8-2.8mm |
| Inlet dia. | 3.0-3.5 |
| Max. line speed | 900mpm |
| Die No. | 9 |
| Slip ratio of m/c | 19.6%+12.5% |
| Fram | weld by steel plate |
| Capstan | tungsten |

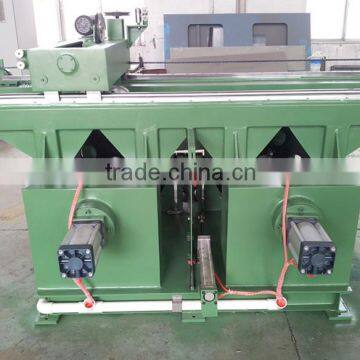

| Bobbin loading & unloading type | double end thimble |
| Max. loading capacity | 500KG |
| Annealing method | DC.three-section annealing |
| Main motor | AC45KW |
| Spool motor | AC11KW*2 |
| Annealing power | 180KVA |
| Steam quantity | 18kg/h |
| Coling water capacity | 650L/min |
| Compressed air capacity | 0.4-0.6Mpa,50L/min |
| Power source | 380V 50/60HZ |
| Dimension | 13300mm*3500mm*3400mm |
Suzhou Hengxie is a private machinery company specialized in cable series equipment.
The main products of company are as following:9,13 dies rod breakdown machine and 17 dies medium drawing machine,medium and large drawing machine with continuous annealer, 14dies medium and fine wire drawing machine,22 or 24 dies fine wire drawing machine,20 or 24 dies super fine wire drawing machine, annealing and tinning machine , medium wire drawing machine with double spooler , and high speed suto stranding machine ,etc.
Our products sale in domestic and overseas such as India, Brazil, Egypt, Malaysia, Korea, Vietnam, Syria, Kennya, Argentina, South Africa and Iran.
