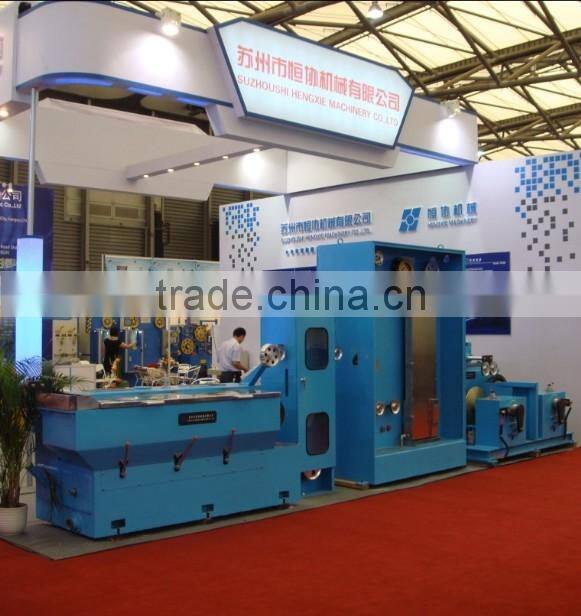

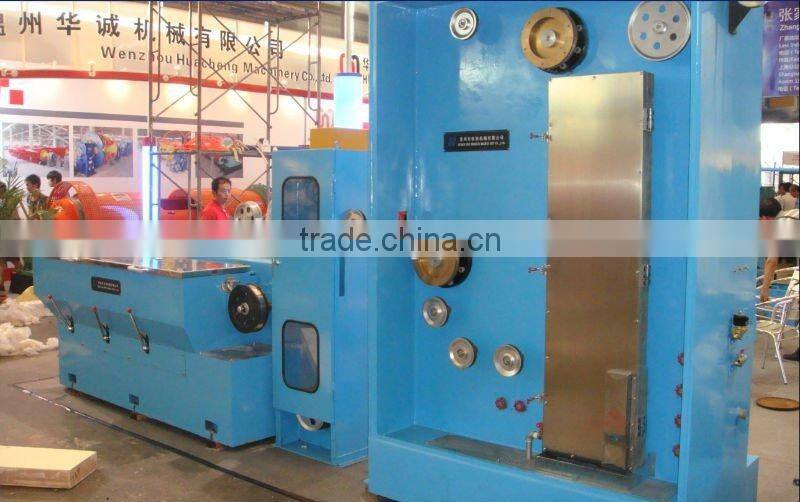

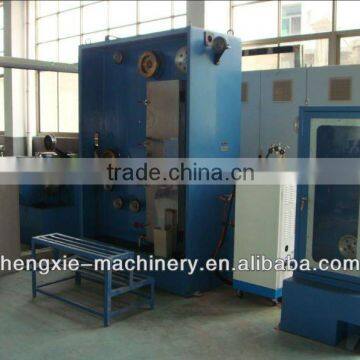

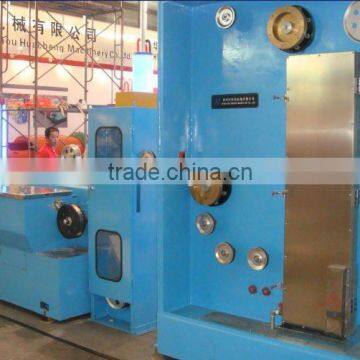

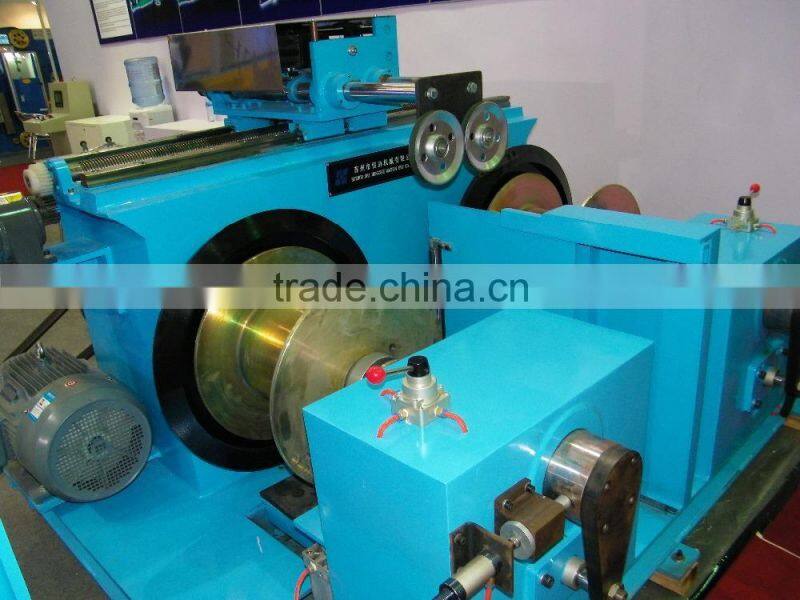

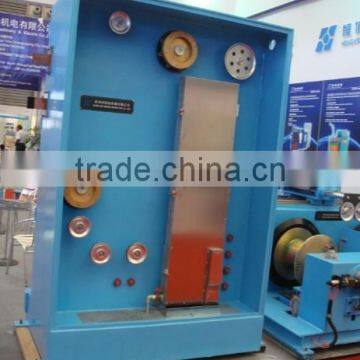

HXE-17DST High Speed Copper Wire Drawing Machine With Continuous Annealer
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
HXE
Model Number:
HXE-17DT
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HXE-13DT Medium Copper Wire Cable Drawing Machine With Continuous AnnealerUS$ 1 - 2MOQ: 1 Set -
HXE-17DST High Capacity Medium Copper Wire Drawing Machine With AnnealingUS$ 1 - 2MOQ: 1 Set
-
10DT Middle Copper Wire Rod Drawing & Annealing Machine -FactoryUS$ 1 - 2MOQ: 1 Set
-
10DT-Medium Copper Drawing Usage Machine With Annealer-manufacturerUS$ 1 - 2MOQ: 1 Set
-
13DT Copper Wire Rod Drawing & Annealing Machine -FactoryUS$ 1 - 2MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
HXE
Model Number
HXE-17DT
Usage
Other, Drawing, Drawing,Copper wire drawing and annealing
HXE-17DST High speed copper cable wire drawing machine with continuous annealer
Inverter control |
Double inverter control |
Die NO. |
17 |
Input diameter |
Φ2.5Φ3.2mm |
Output diameter |
Φ0.4Φ1.2 mm |
Line speed |
MAX1200m/min |
Machine elongation |
18% |
Slip ratio of fix speed capstan |
13% |
Frame |
Ironed cast |
Drawing wheel |
Carbonization tungsten |
Pulling motor |
37KW |
Take up motor |
11KW |
Capstan diamter |
Φ260mm |
Fix speed capstan diameter |
Φ260mm |

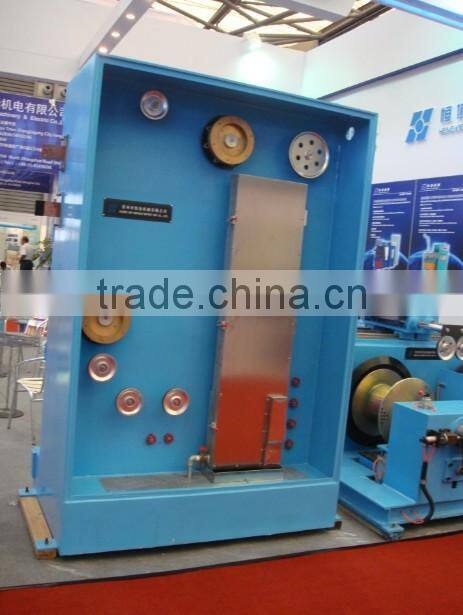

Annealing wheel diameter |
Φ250mm |
Annealing voltage |
DC0~60V |
Annealing current |
DC1200A |
Annealing protecting |
Steam or N2 |

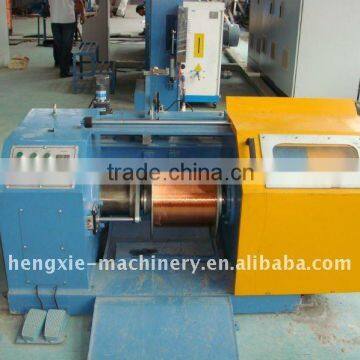

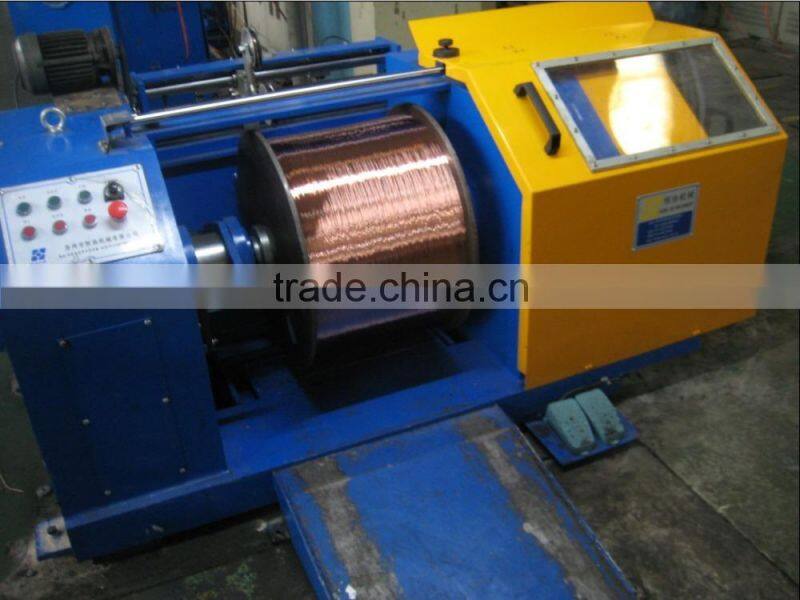

Take up type |
Shaft type |
Transmission type |
By chains |
Detecting device |
Weight balance by swimming arm |
Tension type |
By air pressure |
Loading capacity |
200KG |
Lubrication type |
spray |
Brake |
Disc brake |
Power source |
380V50/60HZ |
Machine weight |
3000KG |
