Specification
copper wire draiwng Machine with annealer-high efficiency -9DT-manufacturer
1.inverter control
2. Inlet size:3.0mm-3.5mm
3. Outlet size: 1.0mm-2.8mm
4.TUV ISO
Main technical parameter
Inlet size |
3.0mm-3.5mm |
Outlet size |
1.0mm-2.8mm |
Max mechanical speed |
900m/min |
Dies number |
13pcs (Four-axis & Horizontal type) |
Dies size |
30mm*15mmT or 25mm*10mmT |
Slip ratio of m/c |
1st -8th die: 19.6% , 9th die: 12.5% |
Frame |
Welded by steel plate |
Capstans |
Tungsten coated |
Capstan diameter |
280mm |
Annealing method |
Three-section annealing |
Annealing current |
DC3000A |
Annealing voltage |
55V |
Annealing power |
165KVA |
Main motor |
45kw (Inverter control) |
Spool motor |
11kw*2 sets (Inverter control) |
Spool size |
400mm&630mm |
Spool loading*unloading |
Double end thimble |
Lubrication |
Half dip in+water pipe spray |
Lubrication capacity |
150L/min |
Power source |
customize |
Machine dimension: |
L13300mm*W3500mm*H3400mm |
Machine weight |
8500KG |

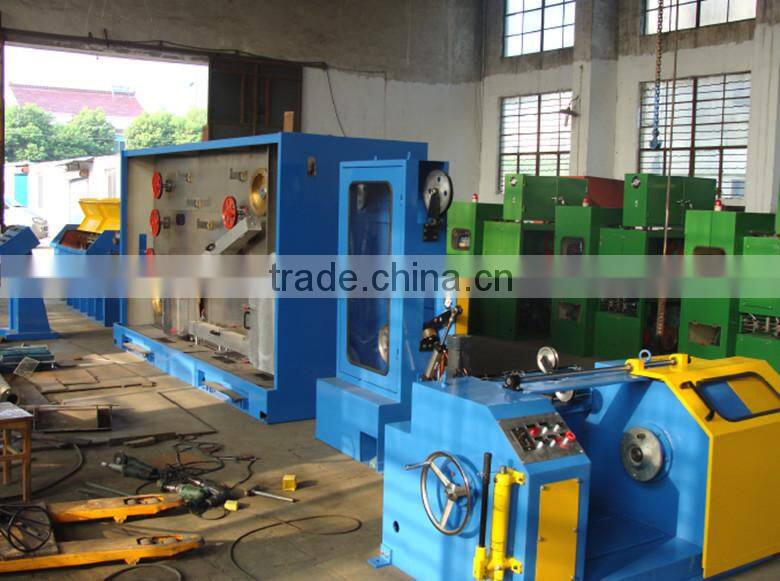

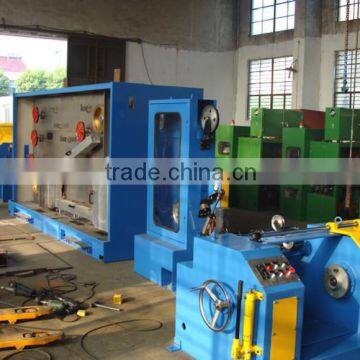

Main components
1.Pay-off |

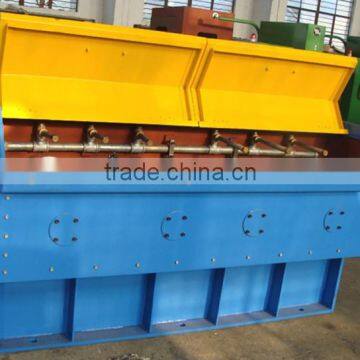

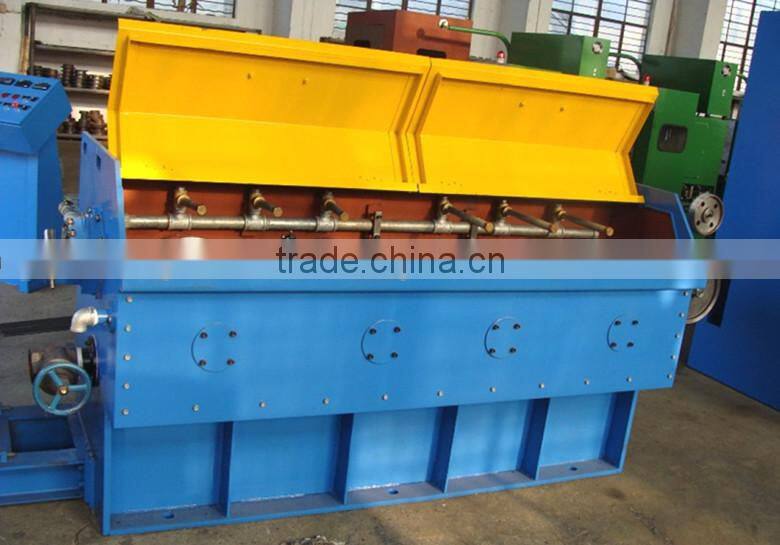

2.HXE-9DT Main drawing machine |

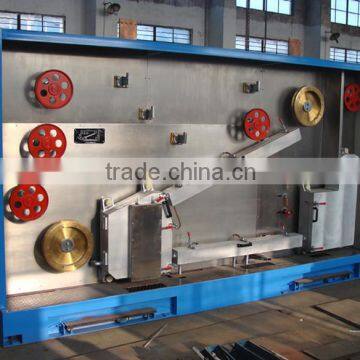

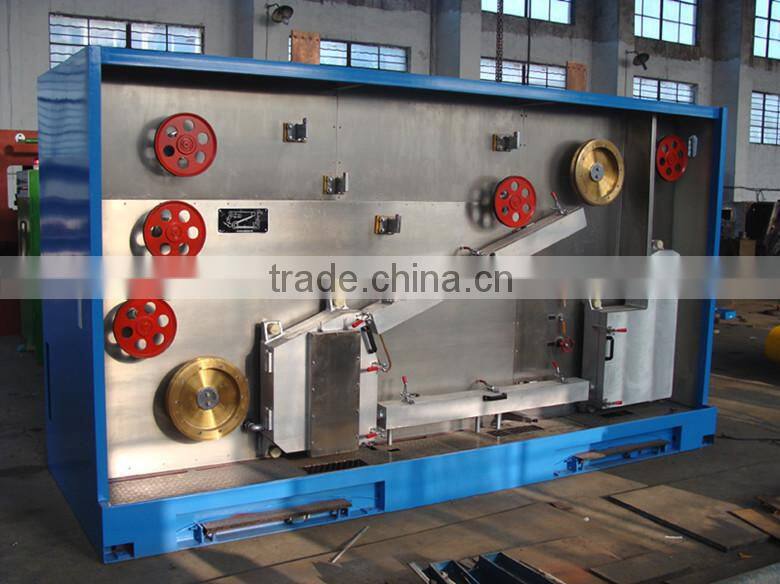

3.HXE-TH350 Annealer |
4.HXE-180 Tension controller |
5.HXE-SX630 Dual take-up machine |

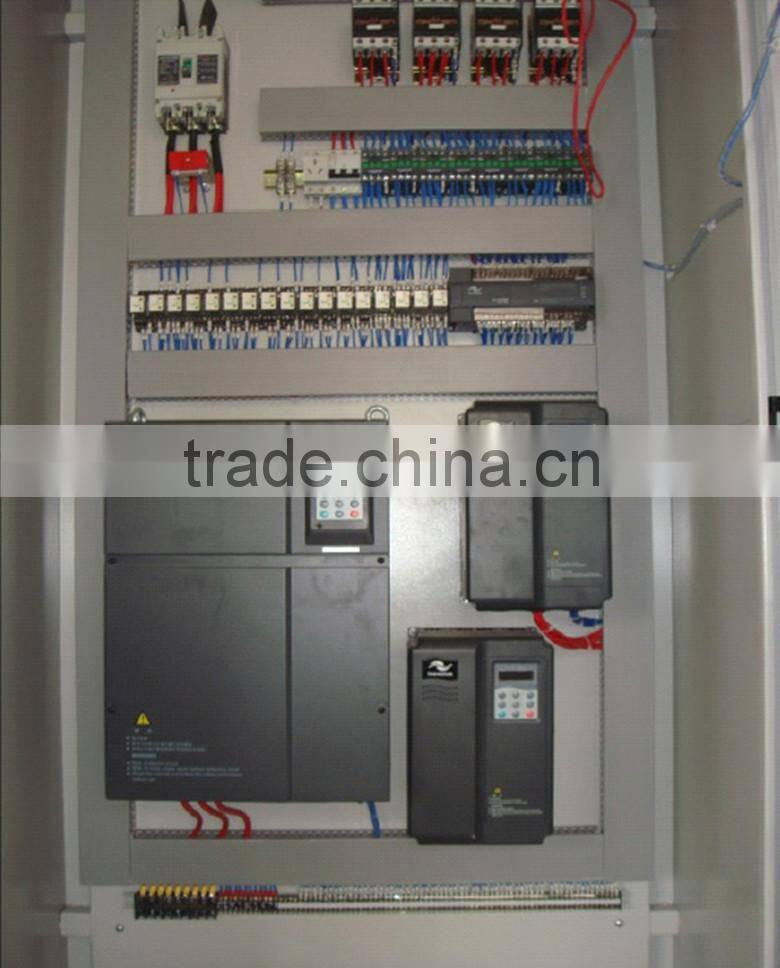

6.Electric cabinet & Annealing cabinet |
7.Operation panel |
8.Voltage Transformer |
Certification
Package&delivery
In Exhibition

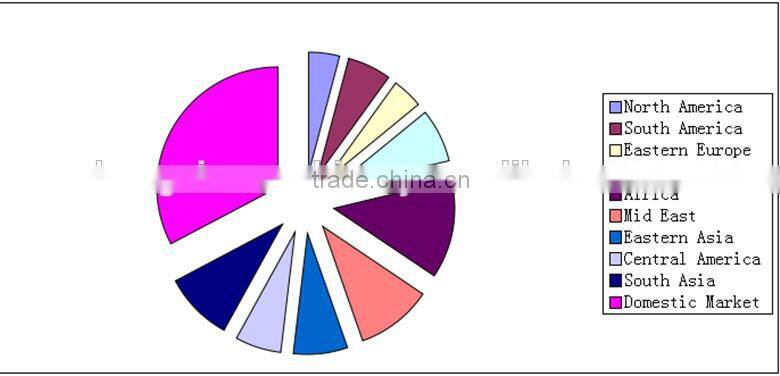

Market Share
Brand of accessories
Inverter : Invoance
Motor :Wannan
Precision resistance: WDD military enterprise
Bearing :NSK
Low voltage equipment: France Schneider
Warranty
6 month for electrical part
12 month for mechanical part
After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the rod breakdown machine , if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
