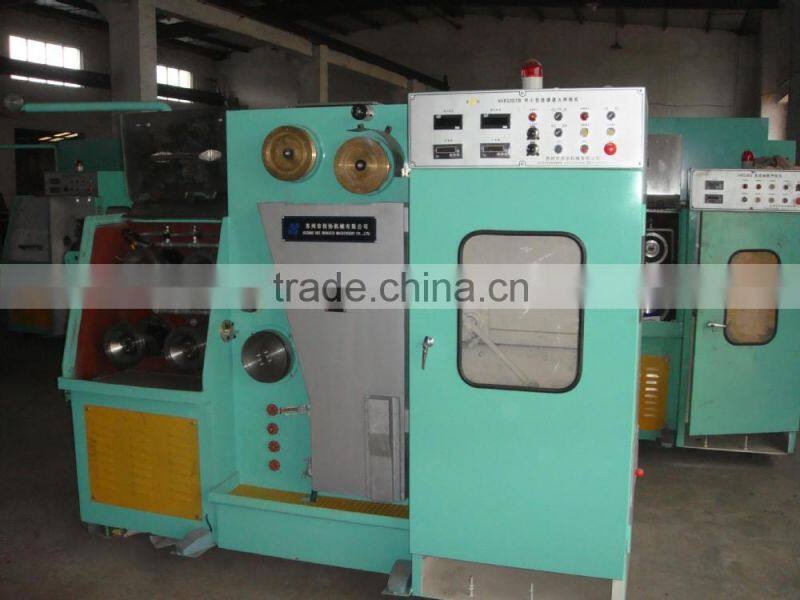

fine wire drawing machine with online annealer/cable equipment
Main technical parameter
Usage single |
bare copper wire drawing and annealing |
Inlet size |
0.5mm-1.0mm |
Outlet size |
0.07mm-0.25mm |
Machine speed/max |
2000m/min |
Die number |
24 |
Wire drawing mode |
standing-mode and 4axes |
Drive |
by dual inverters control |
Main motor |
11KW AC 3 phase motor |
Spooler motor |
3.7KW AC 3 phase motor |
Annealing voltage |
DC50V/max |
Annealing current |
DC300A/max |
Annealing power |
16KVA |
Annealing method |
D.C three-section annealer |
Quantity of steam |
8kg/h |
Capacity of compressed air |
0.4-0.6Mpa,15L/min |
Demand Water quantity for annealing and coolant |
150L/min |
Machine frame |
welded by steel plate |
Transmission |
flat straps |
Capstan |
ceramic coated |
Lubricating system |
Spray |
Bobbin size |
300mm, |
Bobbin loading &unloading type |
shaft type |
Traversing unit |
110W synchro motor, width: 270mm/max
|
Brake |
20KG-M magnetic brake |
Machine weight |
3000KG |
Certification
Package &Delivery
In Exhibition
Brand of accessories
Inverter : Invoance
Motor :Wannan
Precision resistance: WDD military enterprise
Bearing :NSK
Low voltage equipment: France Schneider
Warranty
6 month for electrical part
12 month for mechanical part
After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the rod breakdown machine , if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
Market share
