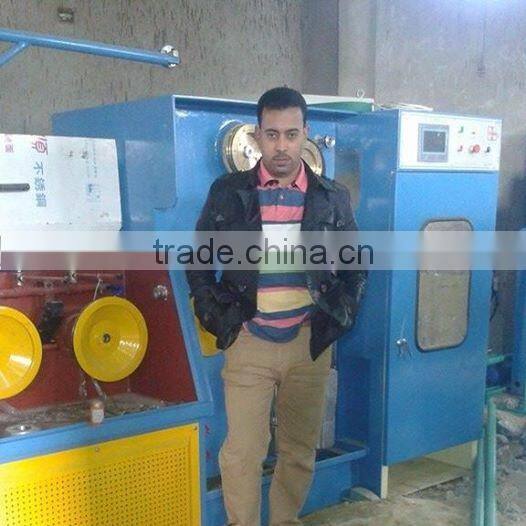

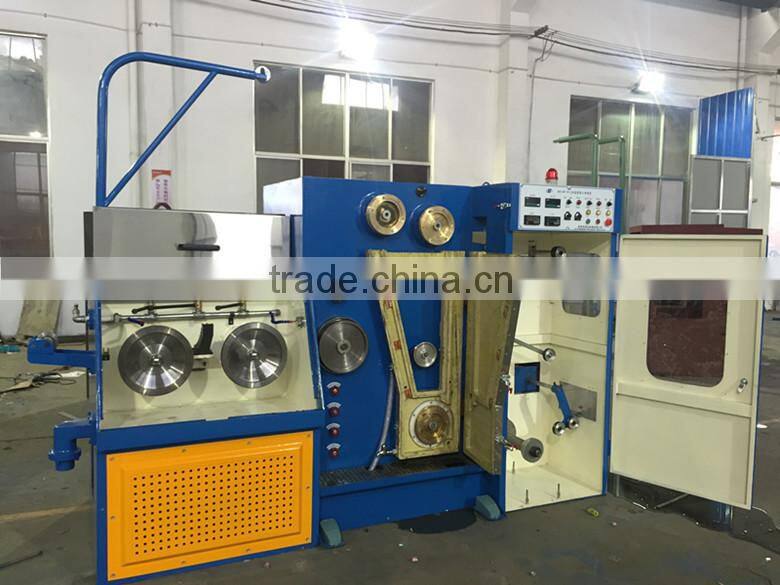

fine wire drawing machine with online annealer/cable equipments
Main technical parameter
Usage single |
bare copper wire drawing and annealing |
Inlet size |
0.5mm-1.0mm |
Outlet size |
0.07mm-0.25mm |
Machine speed/max |
2000m/min |
Die number |
24 |
Wire drawing mode |
standing-mode and 4axes |
Drive |
by dual inverters control |
Main motor |
11KW AC 3 phase motor |
Spooler motor |
3.7KW AC 3 phase motor |
Annealing voltage |
DC50V/max |
Annealing current |
DC300A/max |
Annealing power |
16KVA |
Annealing method |
D.C three-section annealer |
Quantity of steam |
8kg/h |
Capacity of compressed air |
0.4-0.6Mpa,15L/min |
Demand Water quantity for annealing and coolant |
150L/min |
Machine frame |
welded by steel plate |
Transmission |
flat straps |
Capstan |
ceramic coated |
Lubricating system |
Spray |
Bobbin size |
300mm, |
Bobbin loading &unloading type |
shaft type |
Traversing unit |
110W synchro motor, width: 270mm/max
|
Brake |
20KG-M magnetic brake |
Machine weight |
3000KG |
