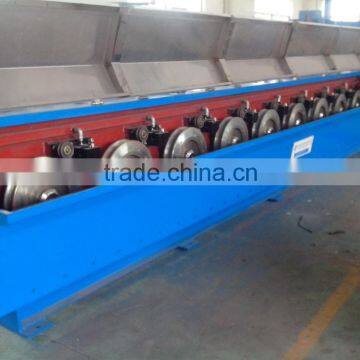

Aluminum medium speed rod breakdown machine can draw the aluminum wire from 9.5mm to 1.7-4.2mm.
1.Inlet |
9.5mm |
2.Outlet |
1.7mm-4.2mm |
3.Diameter of capstans |
450mm |
4.Speed |
1500m/min |
5.Slip ratio |
23.6% ( from 1st -12th ) |
6.Final Slip ratio |
1-19.5% ( adjustable) |
7.Drawing pass |
13 |
8.Drawing lubrication oil quantity |
300L/min |
9.Gear lubrication oil quantity |
90L/min |

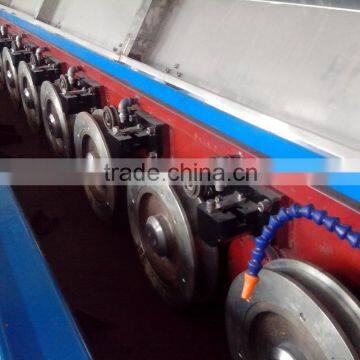

10.Capstan |
Tungsten carbide |
11.Quick dies change |
Included |
12.Main motor |
AC 250KW |
13.Fix speed motor |
AC 75KW |

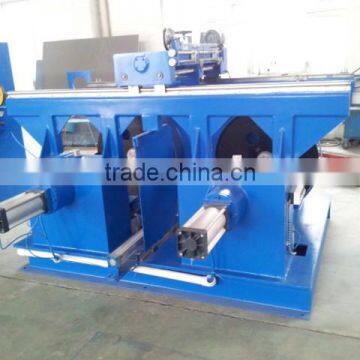

14.Spooler motor |
AC22KW *2 |
15.Gear |
High precision helical gear |
16.Protection cover |
Installed |
17. Machine transmission method |
AC motor drive +8V high tension triangle belt |
18.Drawing capstan transmission |
high precision helical gear |
19.Final drawing capstan transmission |
Gear type belt |
Our products sell well in the Mid. east , North America,Asia,etc.The following is the chart of the market distribution.
