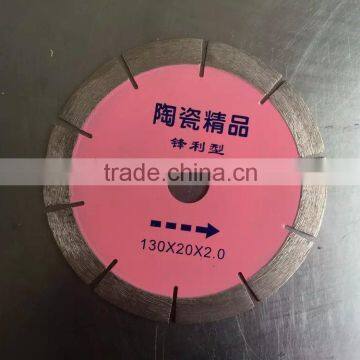

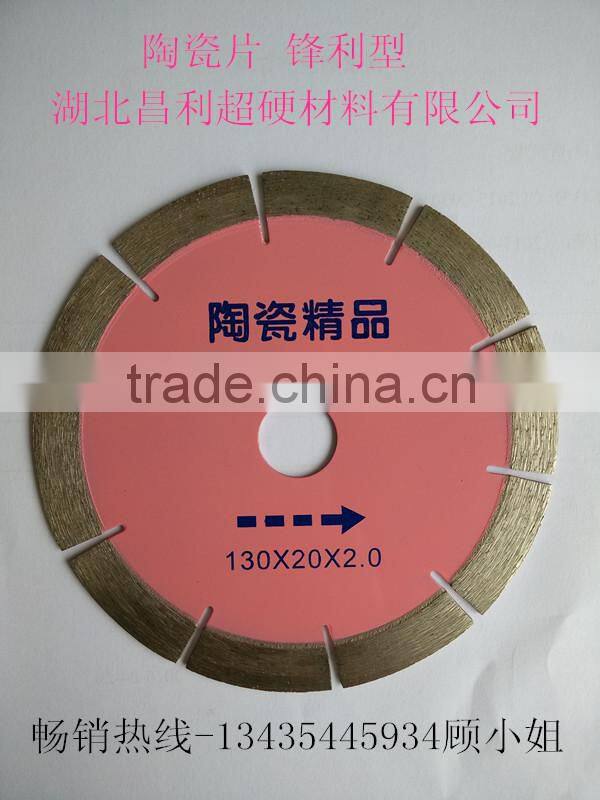

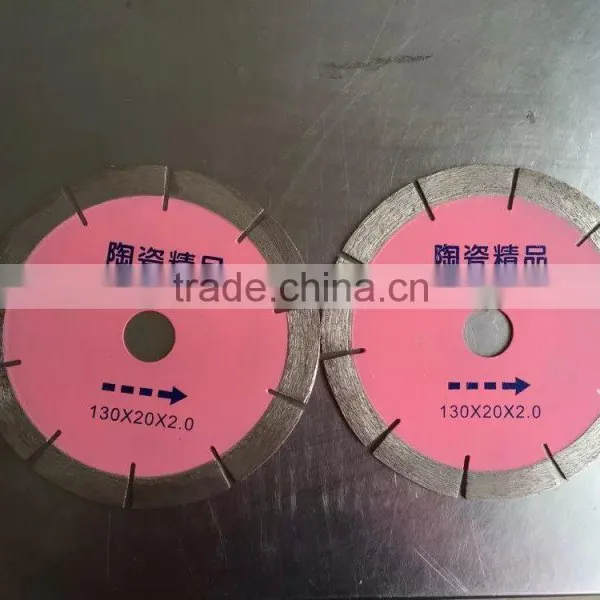

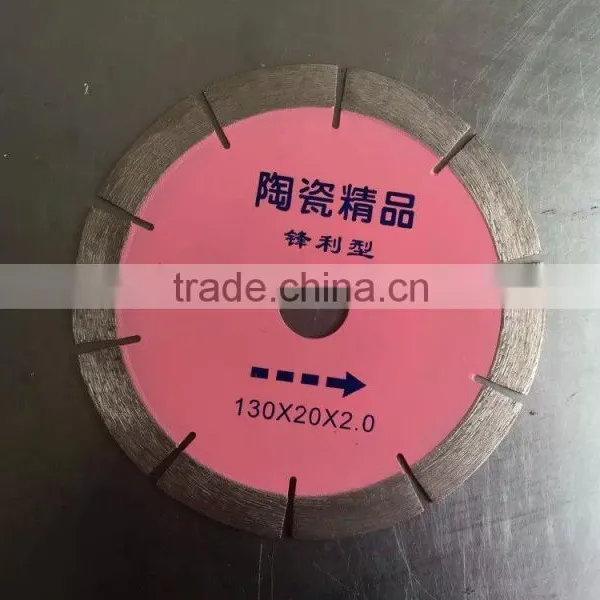

2015 Hot selling custom Diamond Saw Blade For Ceramic Tile

FOB Price

US$ 2.5 - 3 / Piece

100 Pieces(Min. Order)

Port shanghai xiamen guangzhou zhuhai ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin

Hubei, China

Size

130mm

Product Description

Packaging & Delivery

Packaging Details:	PVC BAG,CARD,SIMPLE WHITE BOX,
Delivery Detail:	7 DAYS

Specifications

competitive price
professional quality,strict quality control
advanced equipment,plenty experience
timely delivery
ISO9001

DIAMOND SEGMENTED SAW BLADE (SINTERED FOR DRY CUTTING ) - Cold Pressed

SINTERED DIAMOND SEGMENTED SAW BLADES FOR DRY CUTTING(Hot Pressed)

Suitable for cutting various kinds of hard and brittle materials such as sandstone ,limestone ,cement ,asphalt ,granite ,marble ,ceramics ,concrete ,etc.
CAN BE USED TO: ANGLE GRINDERS, POWERHAND SAW, MASONRY SAW, TILE SAW

SIZE:105(4")-350(14")

Outer Dia.		Inner Diameter (Hole)		Segment Dimension	Segment	QTY/CTN (pcs)	N.W./ G.W.	MEASURE
inch	mm	Metric (mm)	Inch	(T X H X L)	Number	pcs	kg	cm
4"	105	16/20/22.23	5/8", 20, 7/8"	1.8x7.0x35	6or7or8	100*2	19/21	38×32×22
4.3"	110	16/20/22.23	5/8", 20, 7/8"	1.9x7.0x32.3	9	100*2	21/23	39×38×22
4.5"	115	20/22.23	20, 7/8"	1.9x7.0x38.3	8	100*2	21.5/23.5	45×32×22
5"	125	20/22.23	20, 7/8"	1.9x7.0x37.5	9	100*2	27/29	48×33×24
6"	150	20/22.23	20, 7/8"	1.9x7.0x33.5	12	100	19/21	48×46×18
7"	180	22.23/25.4/30	7/8", 1", 1-1/5"	2.2x7.0x35	14	50	17.5/18.5	23×23×33
8"	200	22.23/25.4/30	7/8", 1", 1-1/5"	2.4x7.0x39.2	14	50	21/23	27×40×31
9"	230	22.23/25.4/30/50	7/8", 1", 1-1/5", 2"	2.4x7.2x34.4	16/18	50	35.5/36.5	28×24×37
10"	250	22.23/25.4/30/50	7/8", 1", 1-1/5", 2"	3.0x7.5x37	16/18	20	15/18	27×27×14
12"	300	22.23/25.4/30/50	7/8", 1", 1-1/5", 2"	3.2x7.5x35	22	20	21/24	32×32×16
14"	350	22.23/25.4/30/50	7/8", 1", 1-1/5", 2"	3.2x7.5x40	24	10	18.5/21.5	37×27×8

Especially suitable for cutting various artificial ceramic tiles, such as the vitrified tile, glazed tile, polished tile,

archaize tile,etc.

Life:For example: Take one piece 300mm blade ,It can cut ceramic slabs a total length of not less than 600M.

• Excellent comprehensive cutting performance.

• Working fast without chipping and noise.

• High effciency at the process of cutting saw blade.

• Low cost and friendly surroundings with our saw blade.

• The saw blade working smooth and make the surface flat

• Our diamond saw blade is widely use for cutting any stones.

During the installation period,Pls calibrate the flange plate,Regulate the axis.

• Better to use laser infrared ray cutting machine,Then the effects of cutting will be perfect.

• Pls water cooling when cutting,Cant be dry-cutting.

• Pls keep low speed when just beginning, Adjust speed slowly till stable.

This item is our patent product, we can adopt unique formula for

different hardness slabs.
