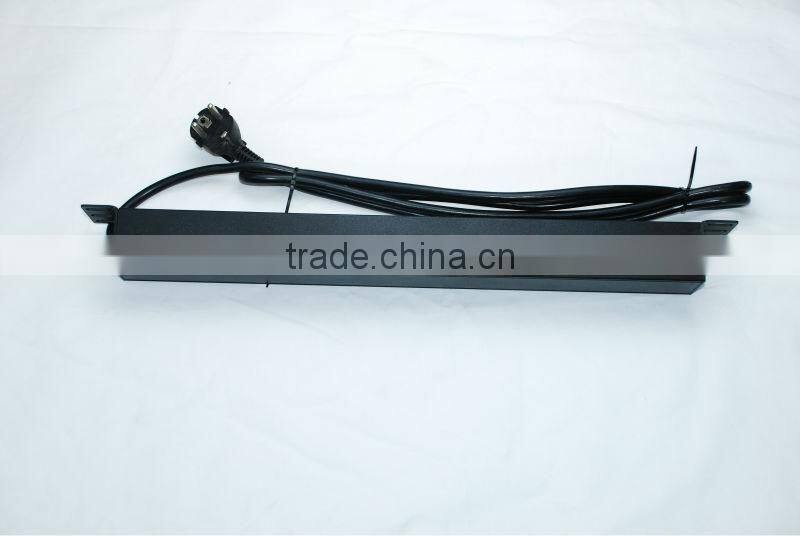

19"1U 8 Ways German Type PDU German Power Distribution Unit Cabinet PDU With Surge Protection Rack PDU

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

Model Number:

YG05-1U-G8-D

Ningbo Dinggu Electric Appliance Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name YG

Model Number YG05-1U-G8-D

Type Plug with Socket

Grounding Standard Grounding

Rated Voltage 250VAC

Rated Current 16A

Application Industrial

Specifications

1)Size:19"1U 482.6*44.4*44.4mm
2)Color:black
3)Number of sockets:8
4)Material:Uninflammable PC module, Aluminium alloy shell

we are the manufacturer&factory.we can make the PDU for every customers' need,such as the output type,the number of sockets and the function modular.

19" 1U German Power distribution unit(PDU)

1)Size:19" 1U 482.6*44.4*44.4mm

2)Color: black

3)Number of sockets:8

4)Material:Uninflammable PC module, Aluminium alloy shell

5)Certificate: CE,RoHS

6)Protection:Three lamp lightning protection

7)Control: None

Product Content

Input characteristics
Rated input voltage	250VAC
Cable specification	H05VV-F3G 1.5mm^2
Type of plug	DIN49440 16A plug
Cable length	2m
Max input current	16A
Output characteristics
Output quantity	8 ways
Rating output voltage	250VAC
Max output current	16A
Max output power	3.5KW
Functions
Control
Protection	three lamp lightning protection
Size
Product size	LXWXH=482.6X44.4X44.4mm (19 inch)
Mounting length	482.6mm
Test items
hi-pot test	PASS
Grounding	PASS
IR	PASS
Product color& material
Product color	black
Shell material	Aluminum alloy
Plastic flame retardant rating	UL94V-0 grade
Mounting
Mounting method	Horizontal installation
Packing	Standard export packing
