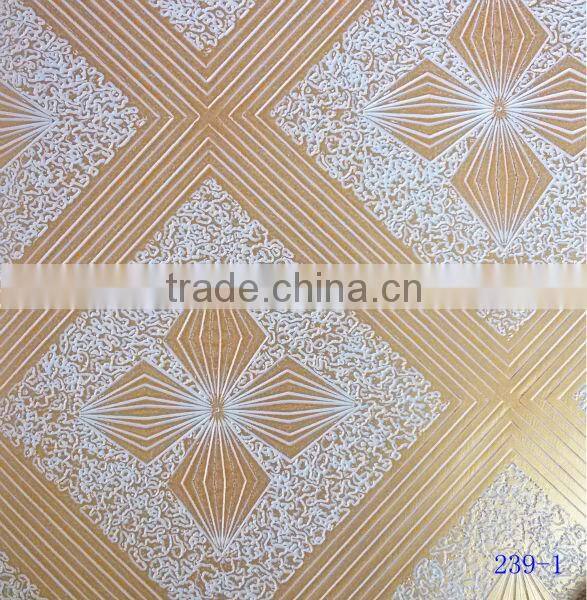

Colorful PVC Gypsum ceiling

Specifications

Colorful PVC Gypsum ceiling
1Manufacturer
2.Nature Gypsum Powder
3.Environmental friendly
4.Different size

PVC Laminated Gypsum Ceiling Board

PVC laminated gypsum ceiling board .It’s made of high quality paper-faced gypsum board with a layer of PVC on surface and aluminum foil on its back.(Gypsum ,PVC and aluminum foil are all 100% environmental friendly materials with character of water proof and fire proof).

Size: 595x595mm, 603x603mm, 605x605mm, 595x1195mm, 604x1210mm, 605x1210mm
Thickness: 7.50mm, 8.00mm, 9.00mm,9.5mm, 10.00mm, 12.00mm, 12.50mm

Density :780kg/m3

Edge: edge taped by adhesive or not

Features:

1)     Surface: Imported or domestic PVC Film.

2)     Back: Aluminum foil

3)     Designs: There are 51 different colorful pvc patterns and 31 vinyl pvc for you to select.

4)     Installation: Match with ceiling T-bar

5)     Environment protection product: Adopting natural gypsum material free of any harmful material.

6)     Non-flammable B1, in accordance with Chinese standard GB8624-1997

7)     Heat retaining power

8)     .Sound insulating: effectively solve sound insulation and fire proof.

9)     Not deforming, not cracking: keeping integrity and sound insulation for long under normal changes of.

10)Small expansion: Little coefficient of expansion, deforming under normal temperature.

11)Light weight, convenient to transport.

12)Special breathing performance, comfortable to live in.

13)Sunken proof.

14)Non-dust, Easy clean.

15)Good light reflection.

16)Corrosion-resistant



T Grid

Features :Beauty ,High strength ,Anti-corrosion ,Waterproof

Shape :Narrow edge ,Wide edge ,Plain pan or concave trough line

Patterns and Specifications as below:

1.Pattern:38 Plain pan line T-bar

Product	Specification (mm)
Main tee	24x38x3600x0.3
Middle Cross tee	24x26x1200x0.3
Small Cross tee	24x26x600x0.3
Wall Angle	22x22x3000x0.4

About other size,we can produce according to your detailed request.

 2.Pattern:32 Plain pan line T-bar



Product	Specification (mm)
Main tee	24x32x3600x0.3
Middle Cross tee	24x26x1200x0.3
Small Cross tee	24x26x600x0.3
Wall Angle	22x22x3000x0.4

About other size,we can produce according to your detailed request.



3.Pattern:38 Concave trough line T-bar

Product	Specification (mm)
Main tee	16.5x38x3600x0.3
Middle Cross tee	16.5x38x1200x0.3
Small Cross tee	16.5x38x600x0.3
Wall Angle	22x22x3000x0.4

About other size,we can produce according to your detailed request.

 4.Pattern:32 Concave trough line T-bar



Product	Specification (mm)
Main tee	16.5x32x3600x0.3
Middle Cross tee	16.5x32x1200x0.3
Small Cross tee	16.5x32x600x0.3
Wall Angle	22x22x3000x0.4

About other size,we can produce according to your detailed request.
