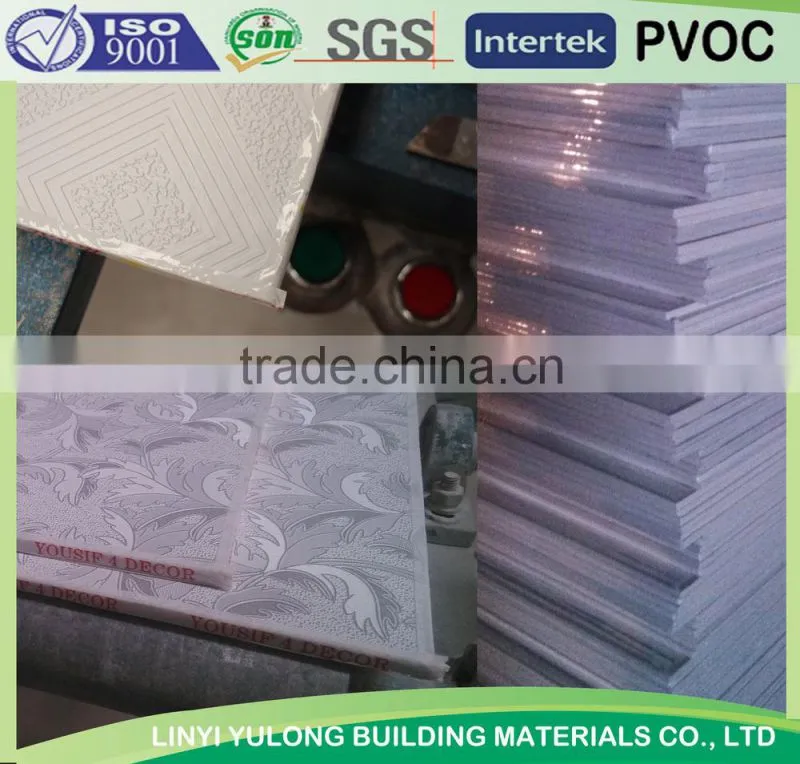

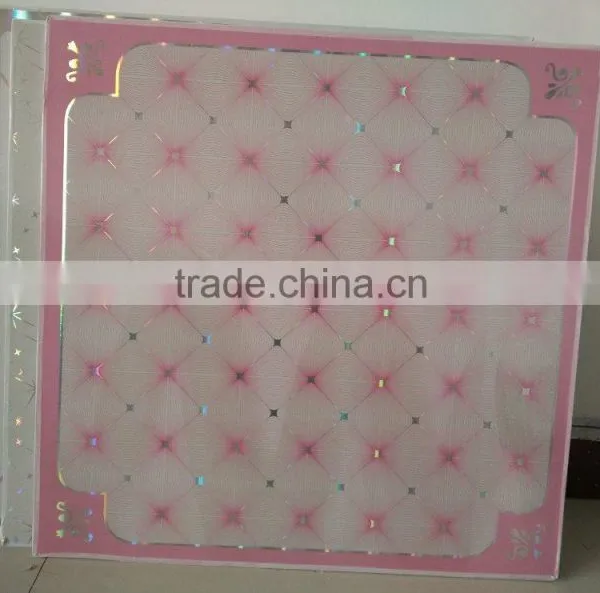

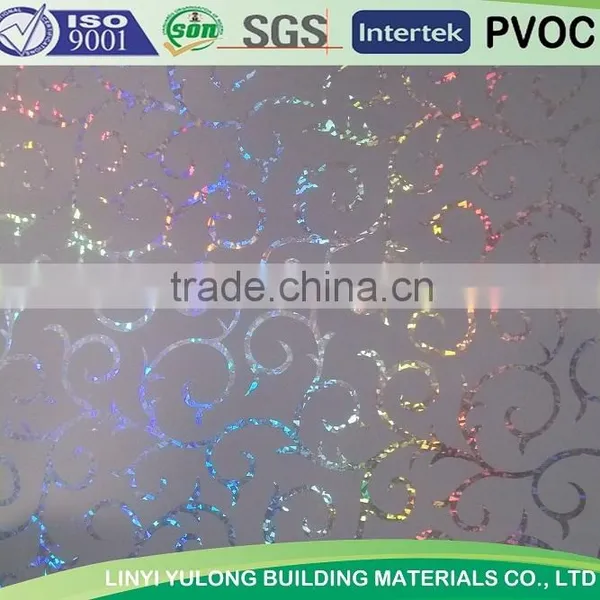

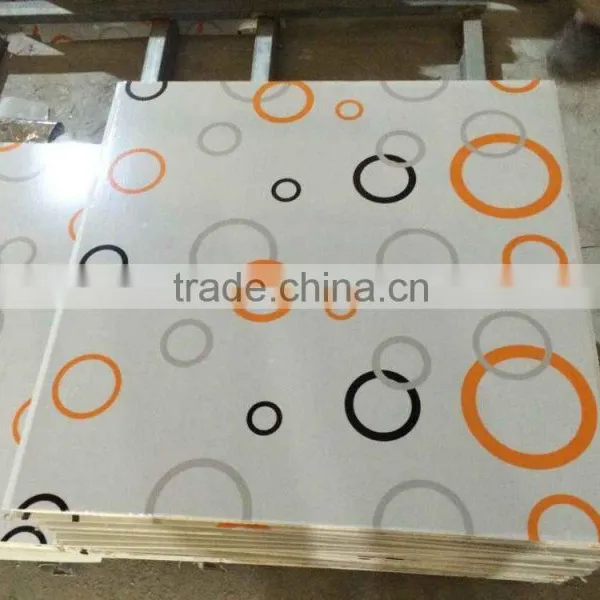

good quality pvc gypsum ceiling tiles/PVC panel design

A.Specifications:MM

Length x Width

595x595,595x1195,600x600,603x603,

605x605,603x1212,610x1220(2'x4')

Thickness

7.0,7.5,8.0,8.5,9.0,9.5,12,12.5

Specifications Tolerance

Length:±1.0MM, Width:±1.0MM, Thickness:±0.5MM

Packing

6/8/10 pieces per carton with shrink wrap bag and importer trade mark printed on the carton strip.

Max loaded details

740/1350/1400 cartons,3239.40-4032 square meters,23.5 tons,loaded in one 20' FCL.

B.Technical Data

1..Weight/sqm:7.0MM:5.5KGS,7.5MM:5.7KGS,8.0MM:5.9KGS.

8.5MM:6.2KGS,9.0MM:6.8KGS,9.5MM:7.1KGS,12MM:9.2KGS,

12.5MM:9.5KGS.

2.Fire resistant property:No-flammable B1 in accordance with Chinese standard GB8624-1997

3.Lengthways & Lateral Ruptures Load:7.0MM>110N , 8.0MM>120N, 9.0MM>140N.

Installation

Math with Top quanlity T-32/38 grids with 0.30-0.45MM thickness.

Properties:The top quality pvc laminated gypsum ceiling tile with best aluminum foil backing is of thermal insulation,fire resistent,moisture resistent,no deviation,elegant,economic,environmental and easy installation,as the suspend ceiling tile and dry wall partition.

Environmental,effective resisting dust,conform to the standard of GB6566-2001<<Building material radioactive nuclide rstion>>.

JMoisture resistant,slight deviation,easy to clean,moisture rate ≤2%,conform to the national standard

C/T997-2006 Decorative gypsum board with paper-facing

C.Fire resistant A grade,conform to the Item 204 of BG50222-95 of Building material inter decoration design fireproof criterion

D.Noise reduction Coefficient :0.1-0.3

E.Thermal conductivity:0.16W/MK.

F.Light reflectance:0.75.
