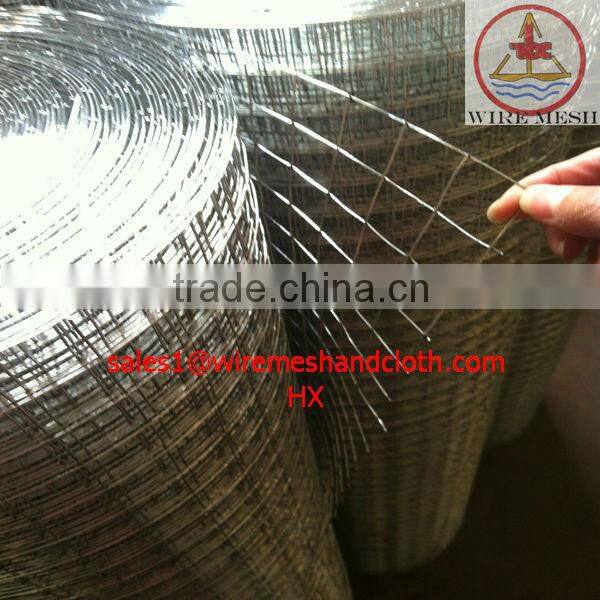

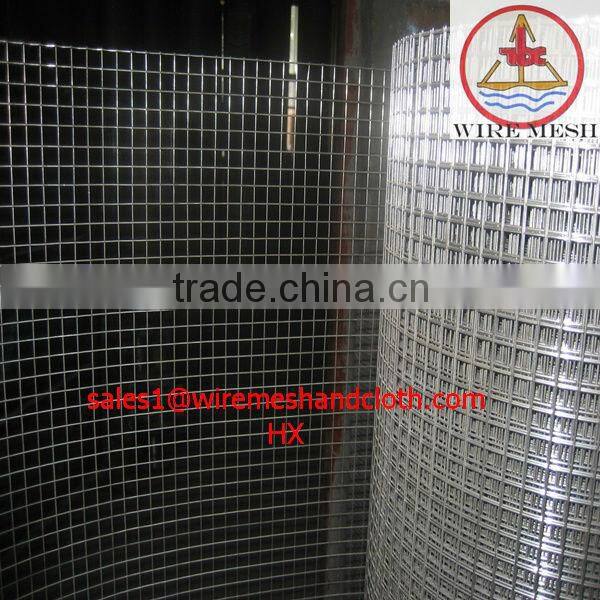

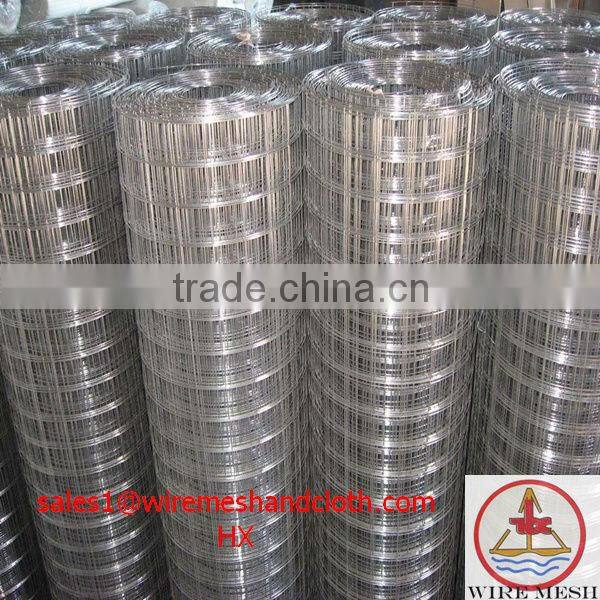

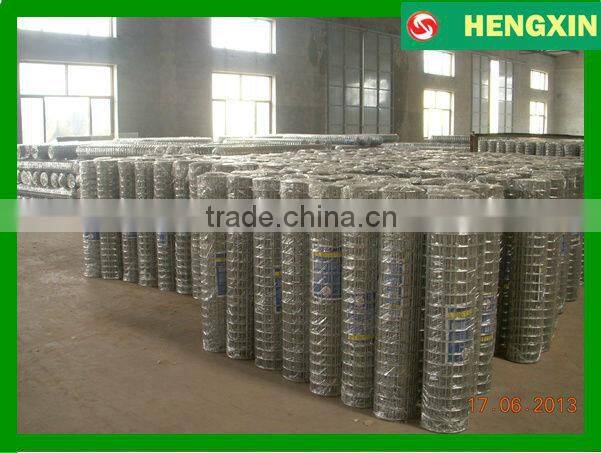

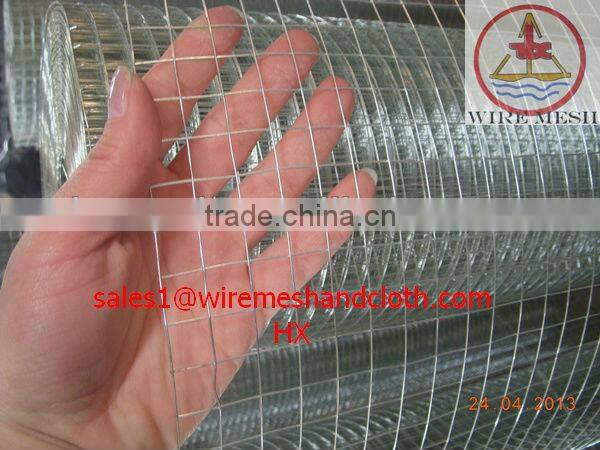

Heavy Guage Galvanized Welded Wire Mesh

Specification List of Welded Wire Mesh:

Opening

Wire Diameter<BWG>

In inch

In metric unit(mm)

1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21,

3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21

1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x 2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

12,13,14,15,16

Galvanized Fencing Mesh:

Opening

Wire Diameter<BWG>

In inch

In metric unit(mm)

2" x 3"

50mm x 75mm

2.0mm,2.5mm,1.65mm

3" x 3"

75mm x 756mm

2.67mm,2.41mm,2.11mm,1.83mm,1.65mm

2" x 4"

50mm x 100mm

2.11mm,2.5mm

4" x 4"

100mm x 100mm

2.0mm,2.5mm

Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request

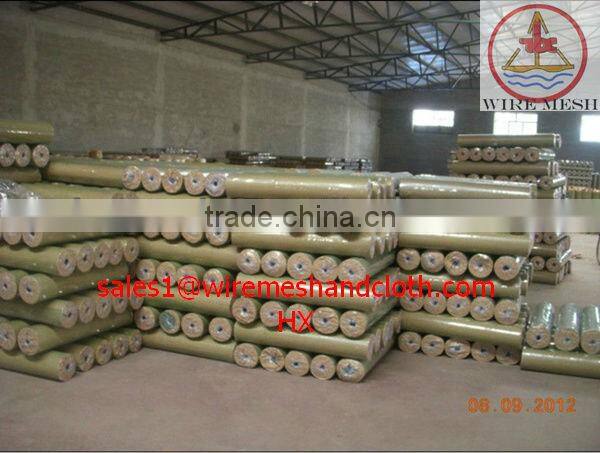

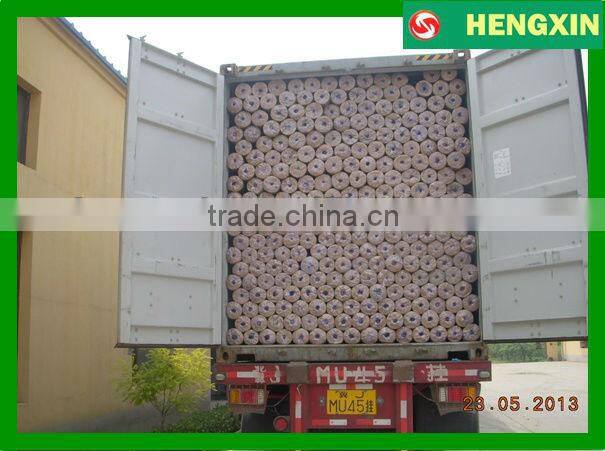

3.Packing: in waterproof paper in rolls. Custom packing available at request.

Mesh

Wire Diameter

In Inch

In MM

Wire Gauge

In MM

1/4" x 1/4"

6.4mm x 6.4mm

22#-24#

0.7mm-0.6mm

3/8" x 3/8"

10.6mm x 10.6mm

19#-22#

1.0mm-0.7mm

1/2" x 1/2"

12.7mm x 12.7mm

16#-23#

1.6mm-0.6mm

5/8" x 5/8"

16mm x 16mm

18#-21#

1.2mm-0.8mm

3/4" x 3/4"

19.1mm x 19.1mm

16#-21#

1.6mm-0.8mm

1" x 1/2"

25.4mm x 12.7mm

16#-20#

1.6mm-0.9mm

1" x 1"

25.4mm x 25.4mm

14#-21#

2.0mm-0.8mm

11/2" x 11/2"

38mm x 38mm

14#-19#

2.0mm-1.0mm

1" x 2"

25.4mm x 50.8mm

14#-16#

2.0mm-1.6mm

2" x 2"

50.8mm x 50.8mm

12#-16#

2.6mm-1.6mm
