Advanced Technology 1200 SMC Sheet Molding Compound Machine for Ship Devices1.Sheet Molding Compound Machine
2. 1000,1200
Advanced Technology 1200 SMC Sheet Molding Compound Machine for Ship Devices
SMC Sheet Molding Compound Machine
Constituent Part
Host: frequency conversion motor. Materials are compacted by belt chains(SS) which are controled by pneumatic form.
Curly Part: torque motor driven; speed can be adjusted at any time; automatic; effort saving.
Cutting Part: variable speed motor; helical cutting roller(increase work life of rubber roller and blade); If high fiberglass content is required, such as above 30%, double roller can be designed on the machine. Any special requirements, contact me.
Electrical Control Part: central control to meet production requirements,components are well known brand
Pictures
Technical Specification
1. Convey device: conveying the PE sheet by chain belt whose drive controlled by variable frequency adjusting technology , running stable, high speed adjustment precision with the precision of varying frequency of 0.1hz
2. resin paste scrapping device: using high precision scraper and plate with the gap accuracy up to 0.05mm to ensuring that the resin paste can be coated evenly on the PE sheet.
3. PE sheet feed: feeding the upper and lower PE sheet by Pneumatic control membrane tension with the stretcher with the function of flattening and wrinkle-smoothing to ensure that the PE sheet can be conveyed to the latexing area withconstant tension and without wrinkle
Pneumatic knife lifting device can make the scraper go up and down quickly and prevent the PE sheet damaged by the grain in the resin paste
4.Glass fiber cutting device: the pressure from pneumatic control knife roller and Pad pressure roller and screw installed blades make it run stable, prolong the service life of the blades and improve the quality of fiber glass yarn
variable frequency adjusting controlled knife roller can ensure the accuracy
with the use of chain belt speed adjusting device can ensure the high precision and stability of the fiberglass content
5.Retting and compaction : consisting of a series of roller, pressing by the pneumatic roller ,which can ensure the quality o the sheet
6. wind-up and box-up : sheet can be packed in roll or in box
with tension adjustment equipment for the two packing way to ensure the quality
Main Technical Parameter
| Model | SMC-1000 |
SMC-1200B (shingle chopped fiber) |
SMC-1200B (double chopped fiber cutter frame) |
SMC-1200C (single chopped fiber cutter frame) |
SMC-1200C (double chopped fiber cutter frame) |
| Sheet width | 1000mm | 1150mm | 1150mm | 1200mm | 1200mm |
| Sheet thickness | 2-4mm | 2-5mm | 2-5mm | 2-5mm | 2-5mm |
| Sheet mass per unit area | 2-6kg/m2 | 2-6kg/m2 | 2-6kg/m2 | 2-6kg/m2 | 2-6kg/m2 |
| The host running speed | 8m/min | 13m/min | 13m/min | 18m/min | 18m/min |
| Production capacity per hour | 2.5ton | 3ton | 3ton | 4ton | 5ton |
| Single class prodction | 9ton | 18ton | 18ton | 28ton | 35ton |
| Electrical control system | PLC digital control system | PLC digital control system | PLC digital control system | PLC digital control system | PLC digital control system |
| Chain belt deviation Control | Automation control | Automation control | Automation control | Automation control | Automation control |
| Fiber content | 15-30% | 18-45% | 18-45% | 18-50% | 18-60% |
| Fiber length | 12.5mm,25mm,50mm,75mm,100mm |
12.5mm,25mm, 50mm,75mm,100mm |
12.5mm.25mm, 50mm,75mm,100mm |
12.5mm,25mm, 50mm,75mm,100mm |
12.5mm,25mm, 50mm,75mm,100mm |
| Resin paste consistency | 8000-20000mpa.s | 8000-20000mpa.s | 8000-20000mpa.s | 8000-20000mpa.s | 8000-20000mpa.s |
| Fiber dimensions | 4000-4800g/km | 4000-4800g/km | 4000-4800g/km | 4000-4800g/km | 4000-4800g/km |
| Fiber model | Non-alkali yarn | Non-alkali yarn | Non-alkali yarn | Non-alkali yarn | Non-alkali yarn |
| Drive system tian | V-belt drive | V-belt drive | V-belt drive | V-belt drive | V-belt drive |
| Total power | 6kw | 7ke | 10kw | 15kw | 20kw |
| Dimension(L*W*H)(mm) | 8000*3000*1800 | 8000*2200*2500 | 9500*2200*2500 | 12000*2500*2800 | 20000*2500*2800 |
| Net Weight | 3000kg | 3500kg | 4000kg | 6000kg | 10000kg |
Advantage
It adopts advanced mechanical structures & technilogy. It has achieved domestic advanced level with advanced technology and reasonable craft, high degree automation and high outputs.
It is PLC digital control,including resin feeding.It can achieve vacuum charging resin to doctor blade.Even mixture, easy cleaning and more automation.
Easy operation, low noise, obvious electricity conservation, small size, compact structure, low energy consumption, high durability, good looking, etc.
combined with powder collector to absorb the harmful substances to keep the healthy of the worker and prolong the service life of the machine.
Increase the operation rate of the material and lower the cost
Application
a new kind of thermosetting plastic moulding machine
Used for manufacturing of Molding Materials such as automobile spare parts, electrical components, dinner tables and chairs, ship devices, refragerator, manhole cover and agruculture facilities,etc, widely used in automotive industry, rail vehicles, construction, electrical, communication engineering, catering appliances, sports equipment etc
It is used to produce Sheet Molding Compound (SMC) which is a new type of thermosetting plastic.
Working
By forming a sandwich structure which the outside are two films and polyester resin, fiber glass yarn. release agent, hardeny agent, thickening agent, stuffing pigment etc in the middle.

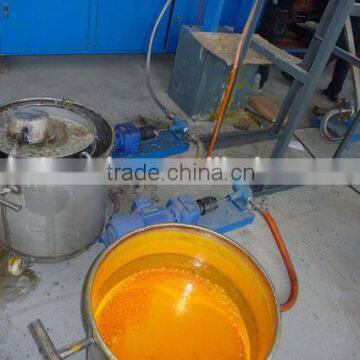

Production Site

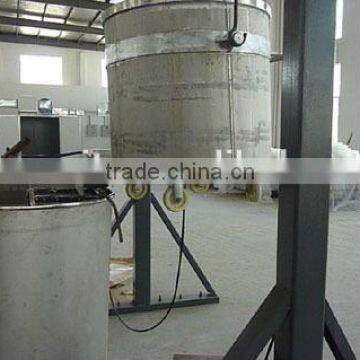

Work Shop
SMC DMC Main Application
| SMC DMC Main Application | ||||||||||
| Item | Type | Main Application | ||||||||
| SMC | SMC-1(Electrical) | All kinds of high and low voltage electrical switch shell, insulation board, insulation and other electrical bar structure with high mechanical strength requirements. | ||||||||
| SMC-2(Flame-Retardant) | Various flame retarding moulded parts, such as bridge, lamp shell and fire equipment, fire helmet with high mechanical strength requirements | |||||||||
| SMC-3(High Tenacity) | Products with high mechanical strength requirements,such as car bumper, a spare tire capsule, engine | |||||||||
| SMC-4(Common Type) | Mainly used for the electrical products and civilian infrastructure, such as chair, combined water tank, highway, anti-glare board, etc | |||||||||
| DMC | DMC-1(Electrical) | Used for high and low voltage electrical appliances with general mechanical strength, motor, and electrical insulation parts | ||||||||
| DMC-2(Common Type) | Used for various moulding products with general mechanical strength | |||||||||
| DMC-3(Betting Type) | Mainly used for injection molding, such as encapsulation machine, etc. | |||||||||
SMC/DMC Series Moulding Compound Performance Index
| No. | Performance | Unit | SMC-1 | SMC-2 | SMC-3 | SMC-4 | DMC-1 | DMC-2 | DMC-3 | |
| 1 | Relative Density | g/cm3 | 1.75-1.90 | 1.75-1.90 | 1.75-1.90 | 1.75-1.90 | 1.75-1.90 | 1.75-1.90 | 1.75-1.90 | |
| 2 | Water Absorbability | mg | ≤20 | ≤20 | ≤25 | ≤25 | ≤20 | ≤25 | ≤20 | |
| 3 | Shrinkage | % | ≤0.15 | ≤0.20 | ≤0.30 | ≤0.30 | ≤0.15 | ≤0.20 | ≤0.05 | |
| 4 | Heat Distortion Temperature | °C | ≥200 | ≥200 | ≥200 | ≥200 | ≥200 | ≥200 | ≥200 | |
| 5 | Bending Strength | MPa | ≥110 | ≥110 | ≥250 | ≥140 | ≥70 | ≥70 | ||
| 6 | Impact Strength | KJ/m2 | ≥50 | ≥50 | ≥150 | ≥50 | ≥16 | ≥16 | ||
| 7 | Surface Resistance | Ω | ≥1014 | ≥1012 | ≥1014 | |||||
| 8 | Volume Resistance | Ω.cm | ≥1014 | ≥1012 | ≥1014 | |||||
| 9 | Dielectric Strength | KV/mm | ≥12 | ≥12 | ≥12 | |||||
| 10 | Dielectric Constant | ≤4.3 | ≤4.3 | ≤4.3 | ||||||
| 11 | Arc Resistance | S | ≥180 | ≥180 | ≥180 | |||||
| 12 | PTI | V | ≥600 | ≥600 | ≥600 | |||||
| 13 | Flammability | Grade | FV0 | FV0 | FV0 | |||||
| Notes: 1.The above specifications are subject to change without prior notice,please feel free to contact us. | ||||||||||
| 2.according to users requests,we develop new products. | ||||||||||
HOW TO GET FINAL SMC PRODUCTS?
after getting smc sheet/composite, you will need MOULD & Hydraulic Press to forming the final SMC Products, such as Electric Cable Box, Meter Box, Tile, Auto Spare Pare, Manhole Cover, Water Tank ect.
