Specifications

South America Market Popular Internation Advanced Technoloty OEM Accepted Glass Fiber Sheet Production Line with Online System

South America Market Popular Internation Advanced Technoloty OEM Accepted Glass Fiber Sheet Production Line with Online System









Constituent Part



Host: frequency conversion motor. Materials are compacted by belt chains(SS) which are controled by pneumatic form.

 Curly Part: torque motor driven; speed can be adjusted at any time; automatic; effort saving.

 Cutting Part: variable speed motor; helical cutting roller(increase work life of rubber roller and blade); If high fiberglass content is required, such as above 30%, double roller can be designed on the machine. Any special requirements, contact me.

Electrical Control Part: central control to meet production requirements,components are well known brand



Pictures









Technical Specification



1.  Convey device: conveying the PE sheet by chain belt whose drive controlled by variable frequency adjusting technology , running stable, high speed adjustment precision with the precision of varying frequency of 0.1hz

2. resin paste scrapping device: using high precision scraper and plate with the gap accuracy up to 0.05mm to ensuring that the resin paste can be coated evenly on the PE sheet.

 3. PE sheet feed: feeding the upper and lower PE sheet by Pneumatic control membrane tension with the stretcher with the function of flattening and wrinkle-smoothing to ensure that the PE sheet can be conveyed to the  latexing area withconstant tension and without wrinkle

      Pneumatic knife lifting device can make the scraper go up and down quickly and prevent the PE sheet   damaged by the grain in the resin paste

4.Glass fiber cutting device: the pressure from pneumatic control knife roller and Pad pressure roller and screw installed blades make it run stable, prolong the service life of the blades and improve the quality of fiber glass yarn

   variable frequency adjusting controlled knife roller can ensure the accuracy

   with the use of chain belt speed adjusting device can ensure the high precision and stability of the fiberglass content

5.Retting and compaction : consisting of a series of roller, pressing by the pneumatic roller ,which can ensure the quality o the sheet

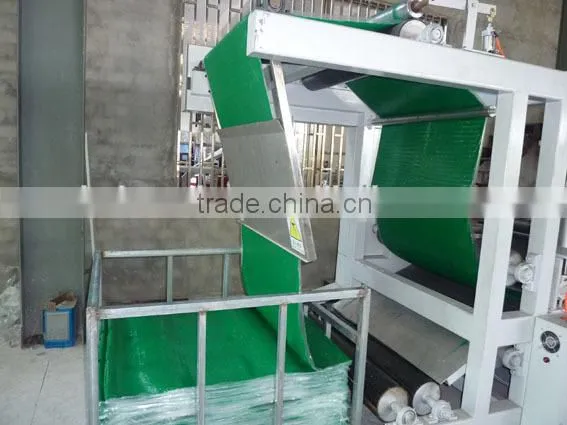

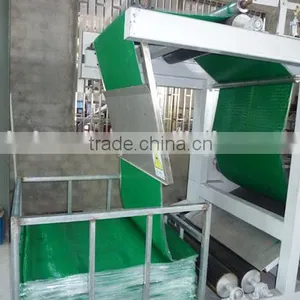

6. wind-up and box-up : sheet can be packed in roll or in box

   with tension adjustment equipment for the two packing way to ensure the quality



Main Technical Parameter



Model	SMC-1000	SMC-1200B (shingle chopped fiber)	SMC-1200B (double chopped fiber cutter frame)	SMC-1200C (single chopped fiber cutter frame)	SMC-1200C (double chopped fiber cutter frame)
Sheet width	1000mm	1150mm	1150mm	1200mm	1200mm
Sheet thickness	2-4mm	2-5mm	2-5mm	2-5mm	2-5mm
Sheet mass per unit area	2-6kg/m2	2-6kg/m2	2-6kg/m2	2-6kg/m2	2-6kg/m2
The host running speed	8m/min	13m/min	13m/min	18m/min	18m/min
Production capacity per hour	2.5ton	3ton	3ton	4ton	5ton
Single class prodction	9ton	18ton	18ton	28ton	35ton
Electrical control system	PLC digital control system	PLC digital control system	PLC digital control system	PLC digital control system	PLC digital control system
Chain belt deviation Control	Automation control	Automation control	Automation control	Automation control	Automation control
Fiber content	15-30%	18-45%	18-45%	18-50%	18-60%
Fiber length	12.5mm,25mm,50mm,75mm,100mm	12.5mm,25mm, 50mm,75mm,100mm	12.5mm.25mm, 50mm,75mm,100mm	12.5mm,25mm, 50mm,75mm,100mm	12.5mm,25mm, 50mm,75mm,100mm
Resin paste consistency	8000-20000mpa.s	8000-20000mpa.s	8000-20000mpa.s	8000-20000mpa.s	8000-20000mpa.s
Fiber dimensions	4000-4800g/km	4000-4800g/km	4000-4800g/km	4000-4800g/km	4000-4800g/km
Fiber model	Non-alkali yarn	Non-alkali yarn	Non-alkali yarn	Non-alkali yarn	Non-alkali yarn
Drive system tian	V-belt drive	V-belt drive	V-belt drive	V-belt drive	V-belt drive
Total power	6kw	7ke	10kw	15kw	20kw
Dimension(L*W*H)(mm)	8000*3000*1800	8000*2200*2500	9500*2200*2500	12000*2500*2800	20000*2500*2800
Net Weight	3000kg	3500kg	4000kg	6000kg	10000kg





Advantage



It adopts advanced mechanical structures & technilogy. It has achieved domestic advanced level with advanced technology and reasonable craft, high degree automation and high outputs.

It is PLC digital control,including resin feeding.It can achieve vacuum charging resin to doctor blade.Even mixture, easy cleaning and more automation.

Easy operation, low noise, obvious electricity conservation, small size, compact structure, low energy consumption, high durability, good looking, etc.

combined with powder collector to absorb the harmful substances to keep the healthy of the worker and prolong the service life of the machine.

Increase the operation rate of the material and lower the cost



Application



a new kind of thermosetting plastic moulding machine

Used for manufacturing of Molding Materials such as automobile spare parts, electrical components, dinner tables and chairs, ship devices, refragerator, manhole cover and agruculture facilities,etc, widely used in automotive industry, rail vehicles, construction, electrical, communication engineering, catering appliances, sports equipment etc



It is used to produce Sheet Molding Compound (SMC) which is a new type of thermosetting plastic.





Working

By forming a sandwich structure which the outside are two films and polyester resin, fiber glass yarn. release agent, hardeny agent, thickening agent, stuffing pigment etc in the middle.







Production Site









Work Shop





SMC DMC Main Application





SMC DMC Main Application
Item	Type	Main Application
SMC	SMC-1(Electrical)	All kinds of high and low voltage electrical switch shell, insulation board, insulation and other electrical bar structure with high mechanical strength requirements.
	SMC-2(Flame-Retardant)	Various flame retarding moulded parts, such as bridge, lamp shell and fire equipment, fire helmet with high mechanical strength requirements
	SMC-3(High Tenacity)	Products with high mechanical strength requirements,such as car bumper, a spare tire capsule, engine
	SMC-4(Common Type)	Mainly used for the electrical products and civilian infrastructure, such as chair, combined water tank, highway, anti-glare board, etc
DMC	DMC-1(Electrical)	Used for high and low voltage electrical appliances with general mechanical strength, motor, and electrical insulation parts
	DMC-2(Common Type)	Used for various moulding products with general mechanical strength
	DMC-3(Betting Type)	Mainly used for injection molding, such as encapsulation machine, etc.





SMC/DMC Series Moulding Compound Performance Index







No.	Performance	Unit	SMC-1	SMC-2	SMC-3	SMC-4	DMC-1	DMC-2	DMC-3
1	Relative Density	g/cm3	1.75-1.90	1.75-1.90	1.75-1.90	1.75-1.90	1.75-1.90	1.75-1.90	1.75-1.90
2	Water Absorbability	mg	≤20	≤20	≤25	≤25	≤20	≤25	≤20
3	Shrinkage	%	≤0.15	≤0.20	≤0.30	≤0.30	≤0.15	≤0.20	≤0.05
4	Heat Distortion Temperature	°C	≥200	≥200	≥200	≥200	≥200	≥200	≥200
5	Bending Strength	MPa	≥110	≥110	≥250	≥140	≥70	≥70
6	Impact Strength	KJ/m2	≥50	≥50	≥150	≥50	≥16	≥16
7	Surface Resistance	Ω	≥1014	≥1012			≥1014
8	Volume Resistance	Ω.cm	≥1014	≥1012			≥1014
9	Dielectric Strength	KV/mm	≥12	≥12			≥12
10	Dielectric Constant		≤4.3	≤4.3			≤4.3
11	Arc Resistance	S	≥180	≥180			≥180
12	PTI	V	≥600	≥600			≥600
13	Flammability	Grade	FV0	FV0			FV0
Notes:   1.The above specifications are subject to change without prior notice,please feel free to contact us.
2.according to users requests,we develop new products.







HOW TO GET FINAL SMC PRODUCTS?











after getting smc sheet/composite, you will need MOULD & Hydraulic Press to forming the final SMC Products, such as Electric Cable Box, Meter Box, Tile, Auto Spare Pare, Manhole Cover, Water Tank ect.
