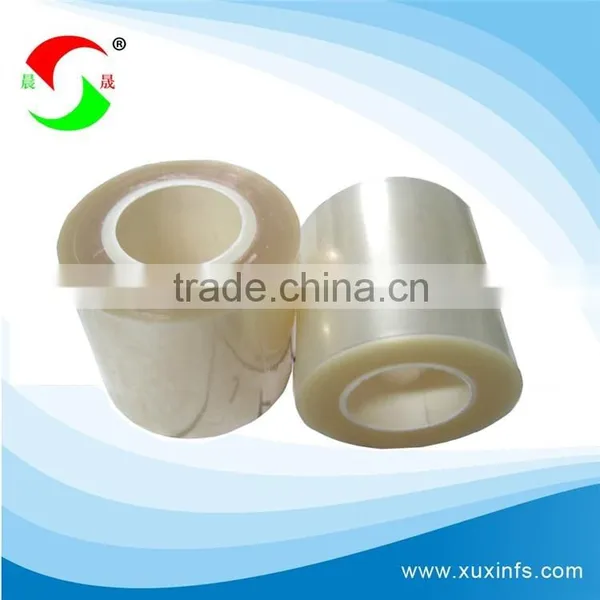

Silicone Coated PET Release Film
Silicone Coated PET Release Film:
Specification:
1)Item: printing colored PET release film
2)Thickness: Usual: 36, 50, 75, 100, 125u . etc
3)Width: 22-1250mm
4)Length: 100-3000m (made as order)
5)Color: blue,red ,siliver ,gold
6)Printing: no (logo, word and picture can be printed as order)
7)Adhesion: low adhesion, medium adhesion, high adhesion, and super high adhesion
8)Adhesive strength: 50~300g/25mm
Technical date sheet:
Spec | ||||||
Thickness |
Length |
Width |
Core size |
|||
10~50 µm |
|
325mm~2500mm |
3”, 6” |
|||
*) Other specifications on request. The typical lengths of reel roll equal to 12 µm film roll lengths are 6000m, 12000m, 18000m,24000m and 36000m. | ||||||
|
The film is processed by three layer co-extrusion. Low heat shrinkage. High combination with multiple resin. High tensile strength. One side corona treatment is available. Stable quality. | ||||||
Physical Property | ||||||
Properties |
Unit |
Typical Value |
Scope |
Method |
||
Thickness |
TD |
µm |
tolerance±4% |
12±0.2 |
DIN 53370 |
|
Tensile Strength |
MD |
N/mm2 |
>200 |
100~235 |
ASTM D882 |
|
TD |
N/mm2 |
>220 |
245~280 |
ASTM D882 |
||
Elongation |
MD |
% |
>100 |
130~160 |
ASTM D882 |
|
TD |
% |
>100 |
105~125 |
ASTM D882 |
||
E Module |
MD |
N/mm2 |
>4000 |
4000~4300 |
ASTM D882 |
|
TD |
N/mm2 |
>4200 |
4400~4800 |
ASTM D882 |
||
Haze |
TD |
% |
2.5~3.0 |
2.5~3.0 |
ASTM D1003 |
|
Heat Shrinkage |
MD |
% |
<1.55 |
1.3~1.5 |
BMSTT11 |
|
TD |
% |
<-0.1 |
-0.1~-0.25 |
BMSTT11 |
||
Wetting tension |
TD |
mN/m |
>54 |
58 |
ASTM D2578 |
|
| ||||||

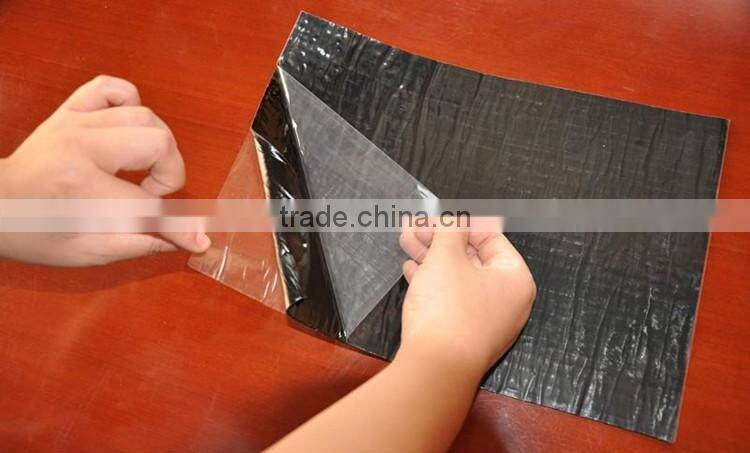

Used for :

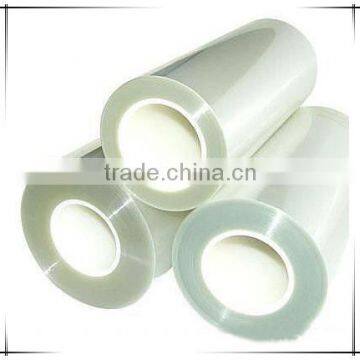

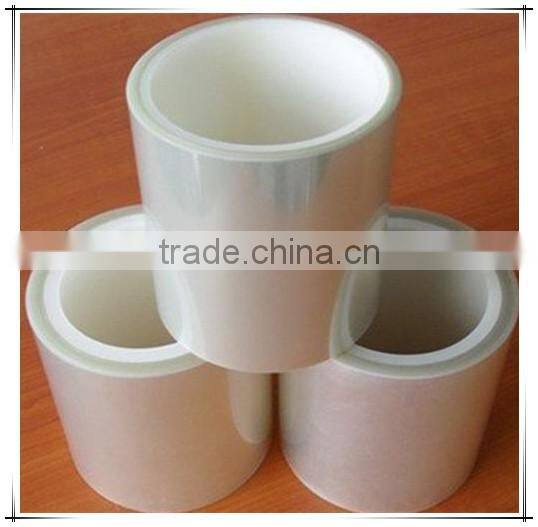

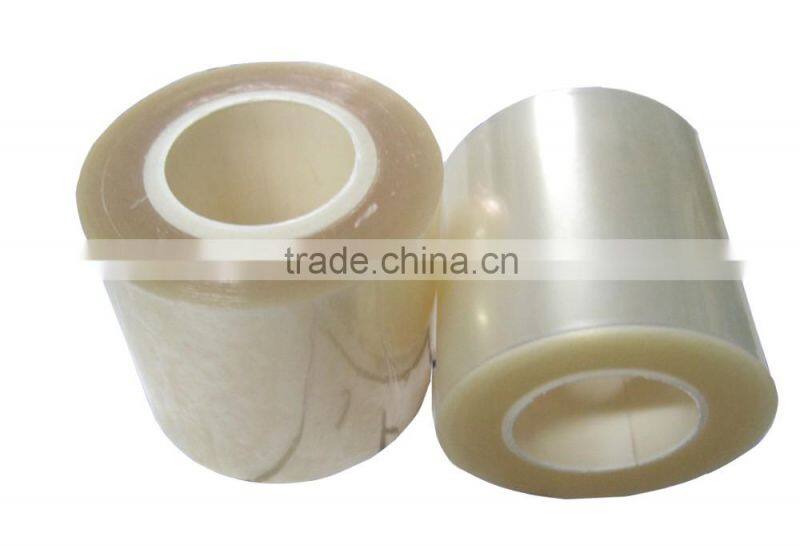

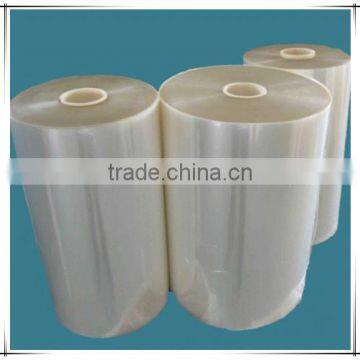

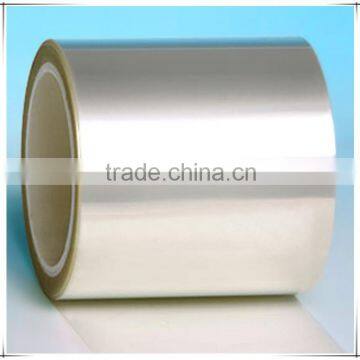

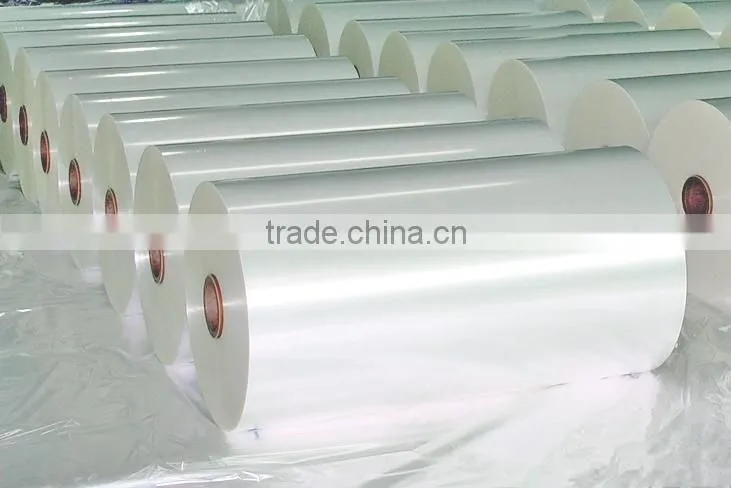

Pictures show :
Why choose us?
1,Honest supplier to the worldwide buyers
2,Factory, direct supplier, competitive price
3,Know how to control the costing with 10 years producing experience
4,Warm and friendly service and guide
5,3 shifts workers for 24hrs production, high capacity
6,Small and big orders are welcome from the worldwide
7, 24 hours service for you
Website:
Stock Code :666282
Honest is our business policy, quality and service first. The key of the successful activity in the high quality of research and controls before, during and after production.
Our company mainly supply the SBS/APP modified bitumen waterproof membrane ,self-adhesive bitumen membrane/tape ,Polythene and polypropylene polymer compound waterproof membrane ,PVC/TPO waterproof membrane ,EPDM rubber waterproofing membrane ,waterprooing coating ,polyester / compound felt based SBS/APP bitumen waterproof membrane and so on .Our company is a public company ,located in Taitou Town ,base of China Waterproof Material ,there is more than 10 years produces and sales experience ,if you need any waterproof building material ,Welcome !!!
ISO certificate as below :
We value every inquiry sent to us and ensure a quick competitive offer. If you order to us, we can promise the quality.
We put your order into our tight production schedule to ensure you punctual delivery time and send shipping notice to you as soon as your order is shipped. We respect your feedback after you have received the goods.
Because we have more than 10 years of experience in waterproof industry, all our products conform to national standard! We can promise an excellent service and a prompt delivery! Your order is welcome at any time!
Any of your kind feedback will be highly appreciated.
Best regards.
Bella Guo
We sincerely hope to establish a win-win cooperation relationship with you.
