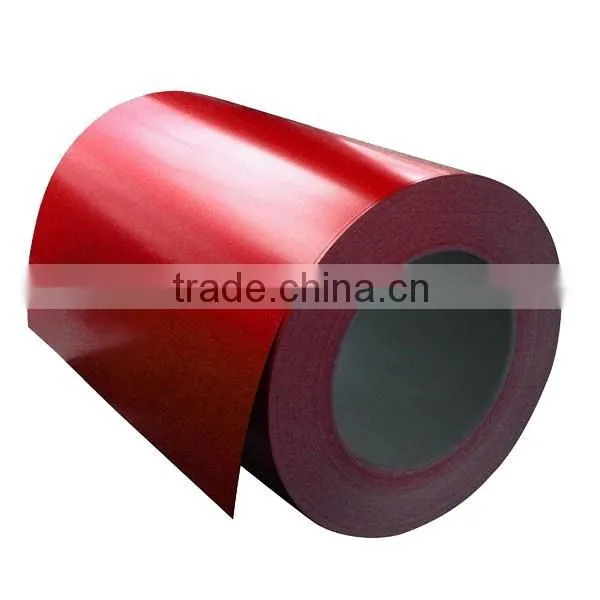

Help CenterPre-painted Galvanized Steel Coil
Related Products
Galvanized Steel Coil
Product: Galvanized Steel Coil
Standard: JIS,ASTM,GB,DIN.
Technique: Hot dipped Cold-rolled PPGI
Nominal Thickness: 0.18mm-1.2mm
Nomina Width: 800mm-1250mm
Coil Weight: 3MT-12MT.
Zinc Coating: 40g-250g
Surface Finish: normal coated, embossed patterns, printed patterns
Yield Strength: 120MPa-300MPa
Tensile Strength: 260MPa-500MPa
Base Metal: Cold-rolled, hot-dip zinc coated
Paint Type: Polyester, silicon modified polyesters, high-durability polyester, and polyvinylidene fluoride
Types of Top Coatings: PE, Silicon modified polyesters, High-durability polyester, Polyvinylidene fluoride
Coating surface structure: Small spangle, Zero spangle.
Some Details | |
Product Name |
Cold rolled steel coil |
Specification |
thickness: 0.15 - 3.5mm; width: 700 - 1850mm; length: according to requirement |
Origin |
China, mainland |
Material Quility |
SPCC, SGCC, DX51D, DC51D,DX52D,SGCD,Q235 etc. |
Available size and capacity
Item |
Dimention (mm) |
Thickness |
0.15 ~ 3.5 |
Width |
700 ~ 1850 |
Cut Length |
According to requirement |
Inside Coil Diameter |
508 |
Technical data :
hot dipped galvanized coil Technical Data
Chemical Composition | ||||||
GRADE |
C |
Si |
Mn |
P |
S |
Ti |
SGCC/DX51D+Z |
≤0.10 |
≤0.50 |
≤0.60 |
≤0.10 |
≤0.030 |
≤0.020 |
DX52D+Z |
≤0.10 |
≤0.50 |
≤0.60 |
≤0.10 |
≤0.030 |
≤0.020 |
SGCD/DX53D+Z |
≤0.10 |
≤0.30 |
≤0.50 |
≤0.05 |
≤0.030 |
≤0.020 |
SGCE/DX54D+Z |
≤0.10 |
≤0.30 |
≤0.30 |
≤0.03 |
≤0.020 |
≤0.020 |
DX56D+Z |
≤0.10 |
≤0.30 |
≤0.30 |
≤0.03 |
≤0.020 |
≤0.020 |
Structural |
≤0.20 |
≤0.60 |
≤1.70 |
≤0.10 |
≤0.045 |
|
hot dipped galvanized steel coil Mechanical Properties | |||
GRADE |
Yield Strength MPa |
Tensile Strength MPa |
Elongation % |
SGCC(DX51D+Z) |
≥205 |
≥270 |
- |
SGCD(DX53D+Z) |
- |
≥270 |
38 |
SGCE(DX54D+Z) |
- |
≥270 |
40 |
DX56D+Z |
- |
≥270 |
42 |
Standard seaworthy export package
a.Our company produce various specification and models and national standards of galvanized steel
coil
b.Using high-quality material and advanced production technology and equipment for processing
c.Applicable to a humid climate and the harsh corrosive environment
d.Products has been all over the country more than 20 provinces, municipalities andautonomous
regions, and have been exported to Europe, North American, the Middle East,
the South East Asia, Africa, Asia,European and other countries and regions, well received by our
buyrer.
